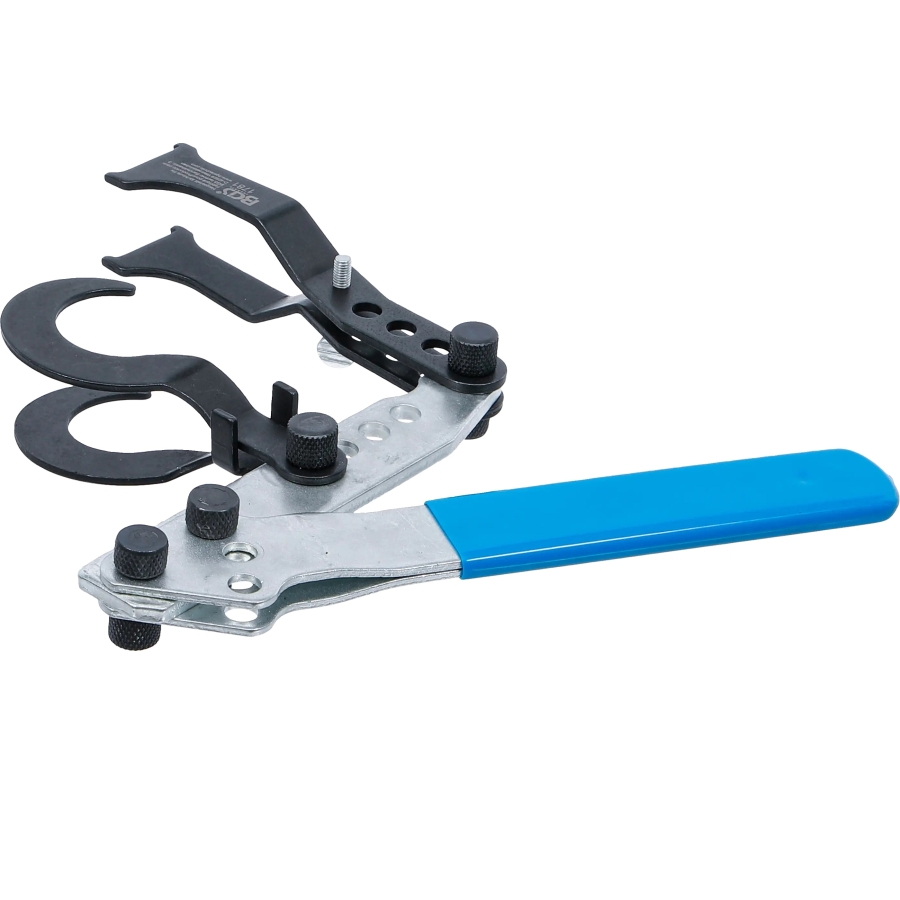

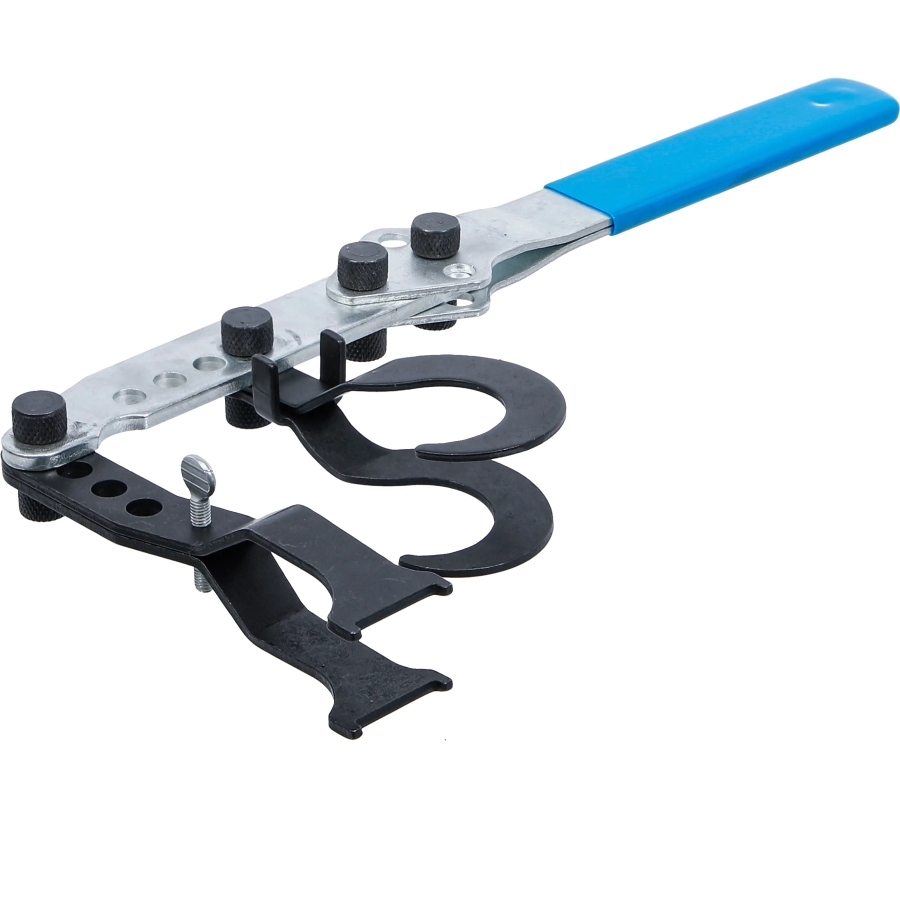

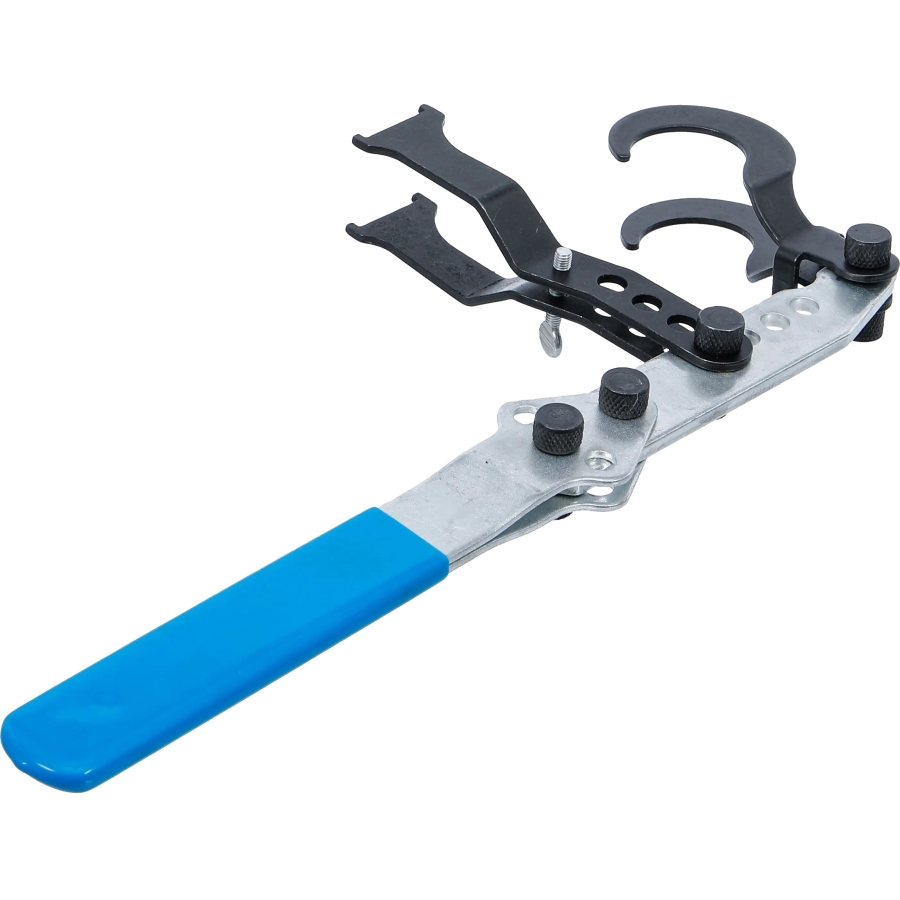

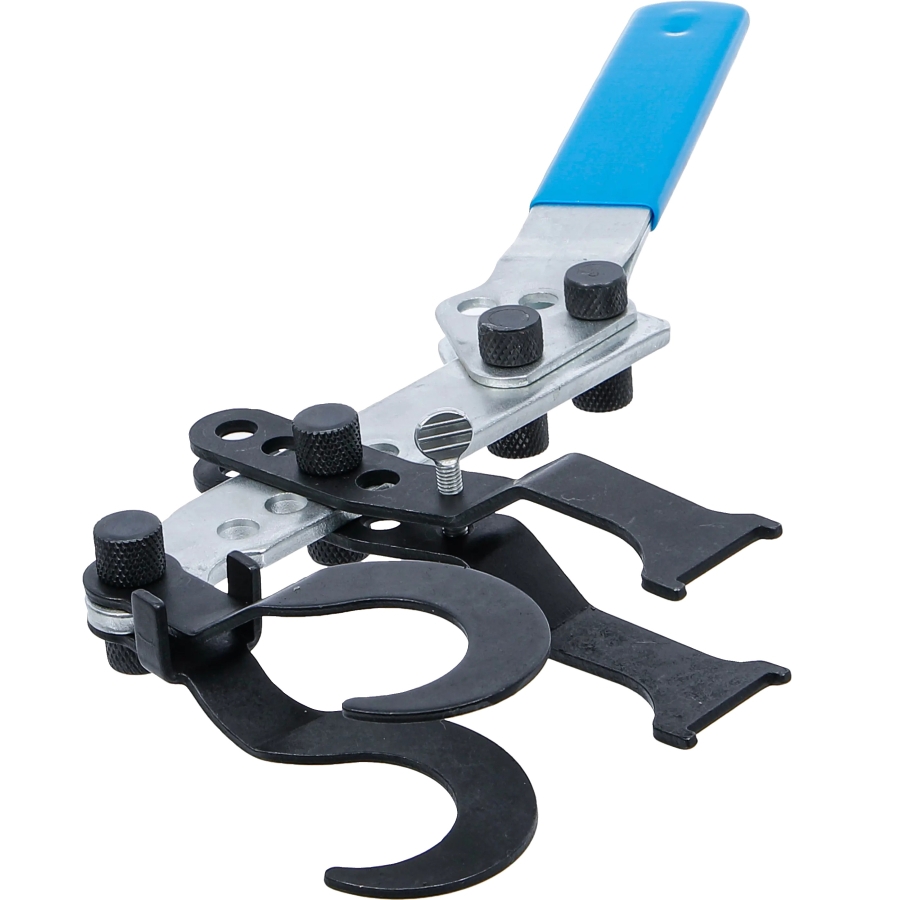

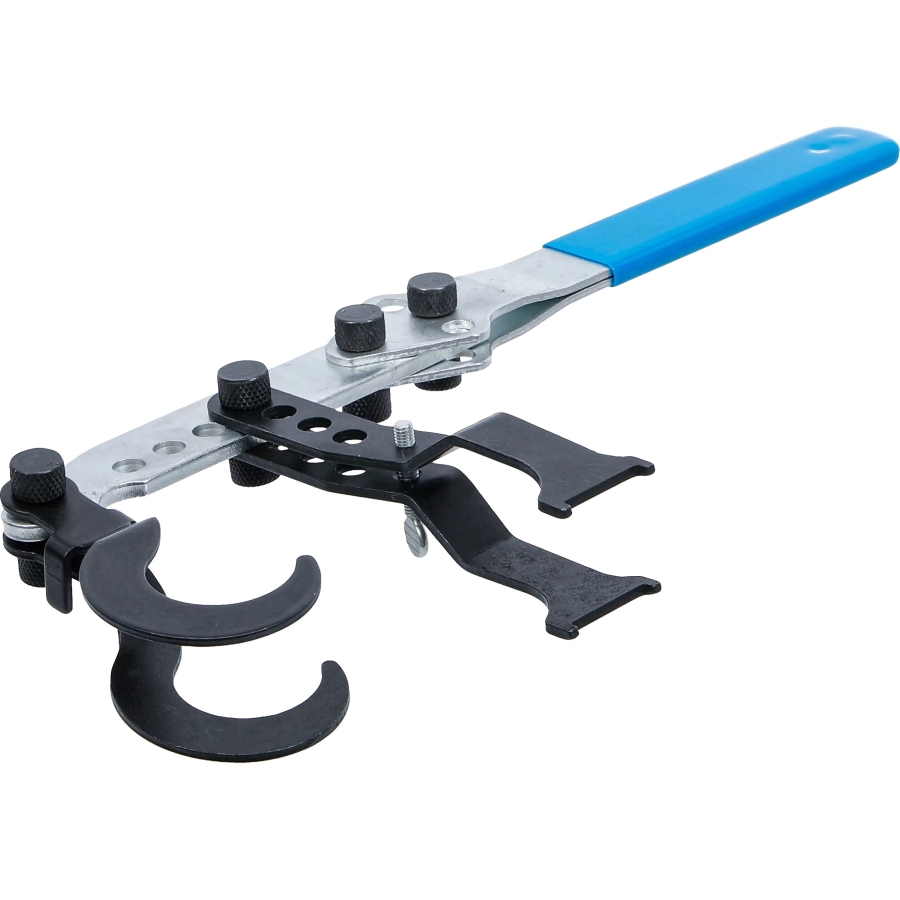

Valve Spring Compressor for OHC and OHV Cylinder Heads, 320 mm

The valve spring compressor is used when installing and removing valves from the cylinder head. Its adjustable construction allows the tool to be adapted to different valve positions and cylinder head designs.

In most applications, the cylinder head does not need to be removed from the engine.

Adjustment and Design

• Adjustable working height and position
• Lever with seven adjustment holes
• Dip-insulated handle for secure operation
• Interchangeable retaining hooks and pressure pieces
• Open and closed pressure pieces for different valve spring configurations

Compatibility

Suitable for working on OHC and OHV cylinder heads.

Technical Specifications

• Tool type: Valve spring compressor
• Length: 320 mm
• Number of adjustment holes: 7

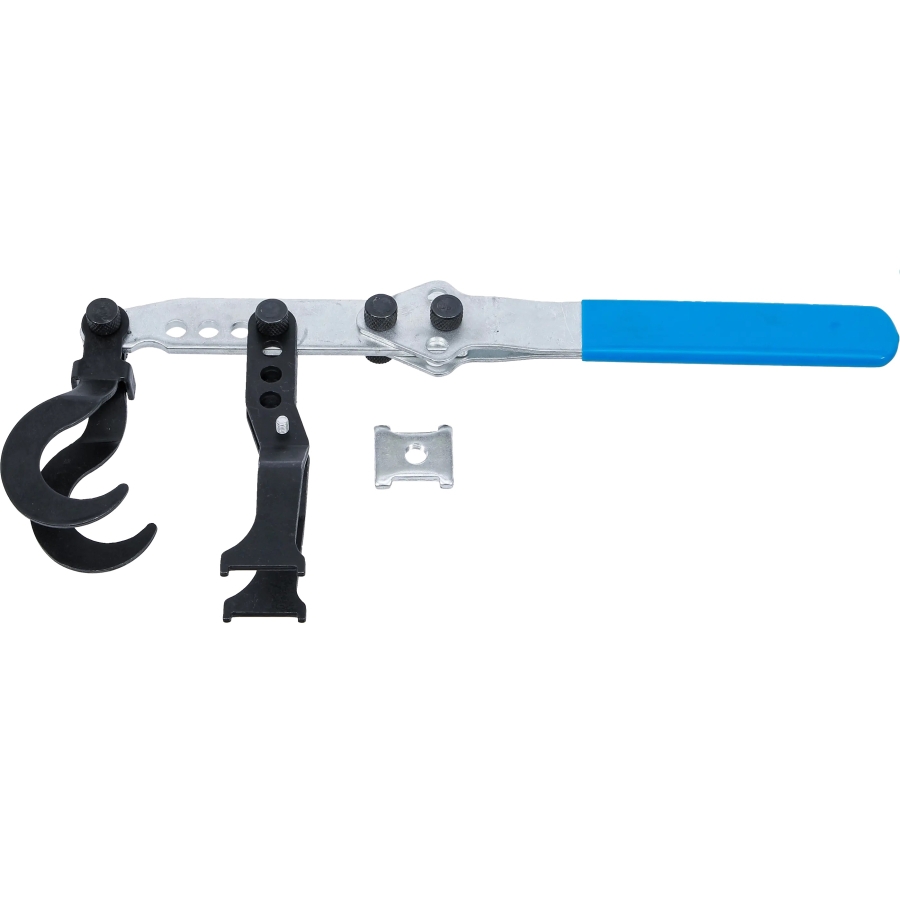

Scope of Delivery

• 1 lever with dip-insulated handle and seven adjustment holes
• 1 small double retaining hook
• 1 large retaining hook
• 1 closed valve spring pressure piece
• 1 open valve spring pressure piece
