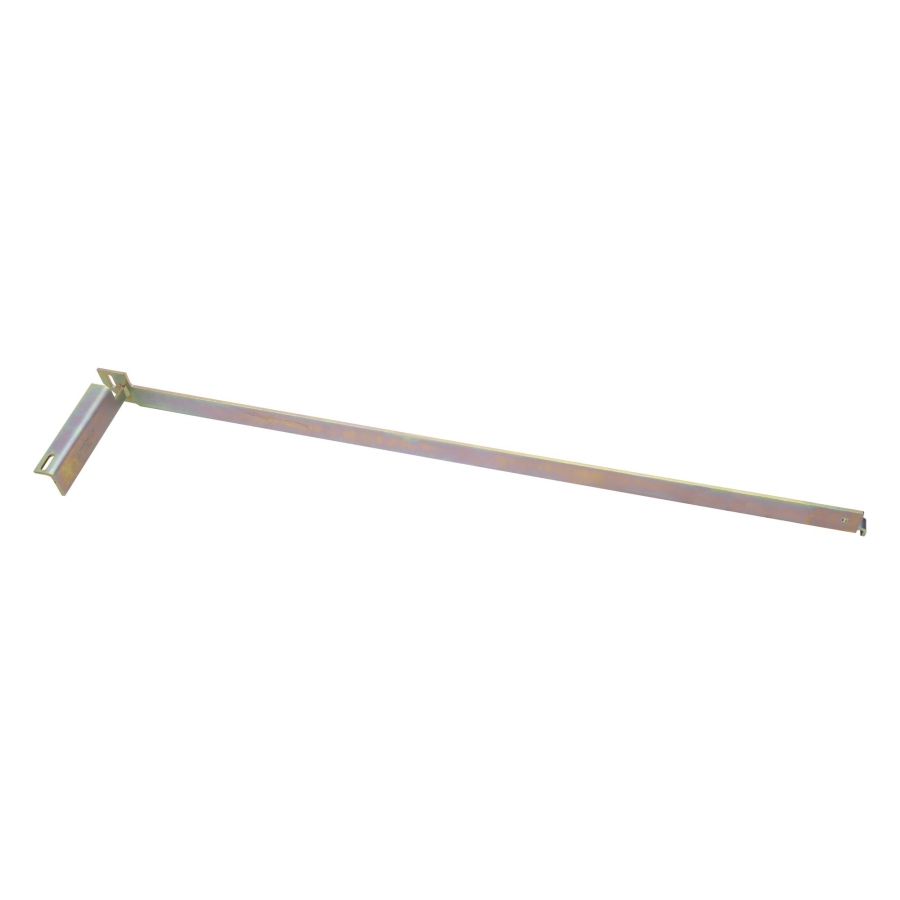

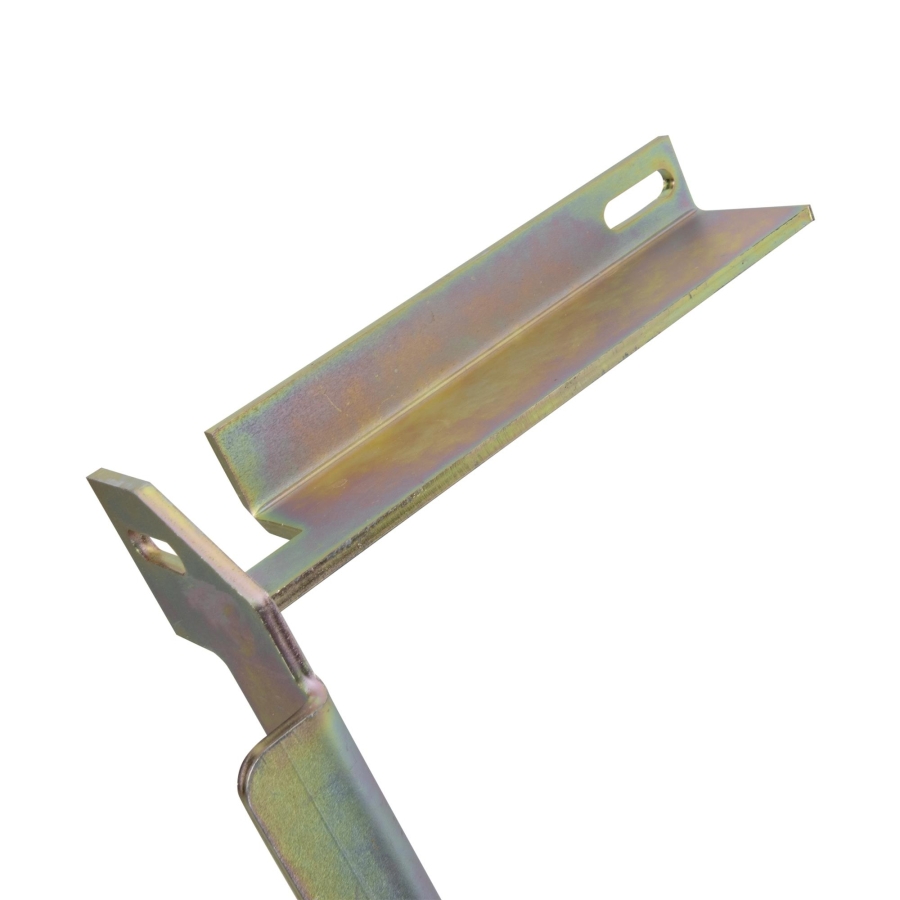

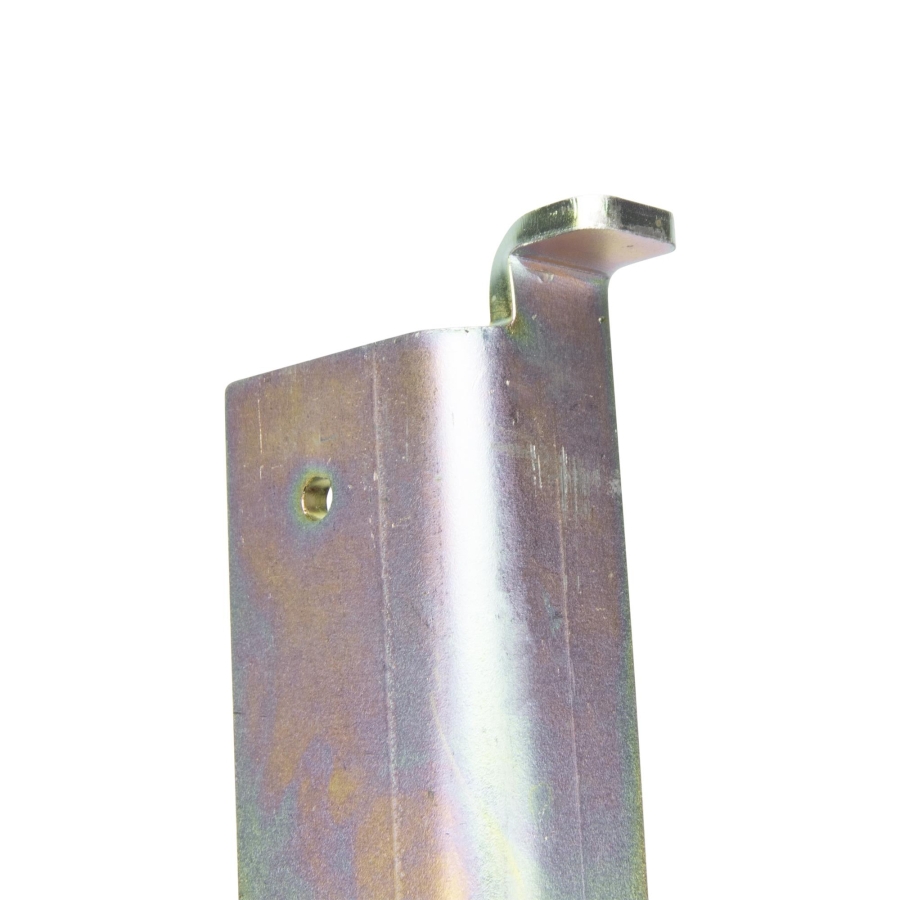

Auxiliary Support Beam for Engine Support Bar item.no. 115402 for VW T4

Special auxiliary support beam designed as an extension for the engine support bar item.no. 115402 when working on VW T4 models with extended front body design.

As part of the VW T4 facelift introduced from model year 1995, the vehicle front section was extended by approximately 80 mm. Due to this design change, additional support is required when lifting or positioning the transmission during repair work.

This auxiliary beam allows the engine support bar to be safely mounted and used on long front-end VW T4 models.

Application

The auxiliary support beam is used together with the engine support bar:

• item.no. 115402

Installation procedure:

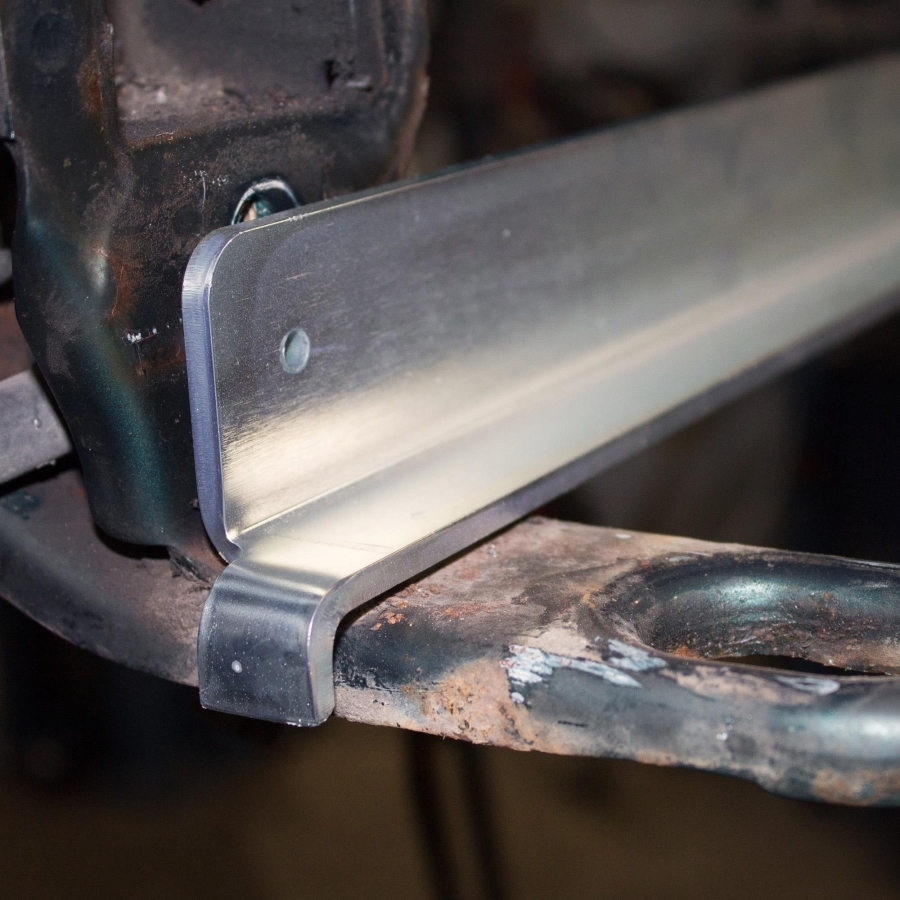

• Position the auxiliary beam onto the towing eye

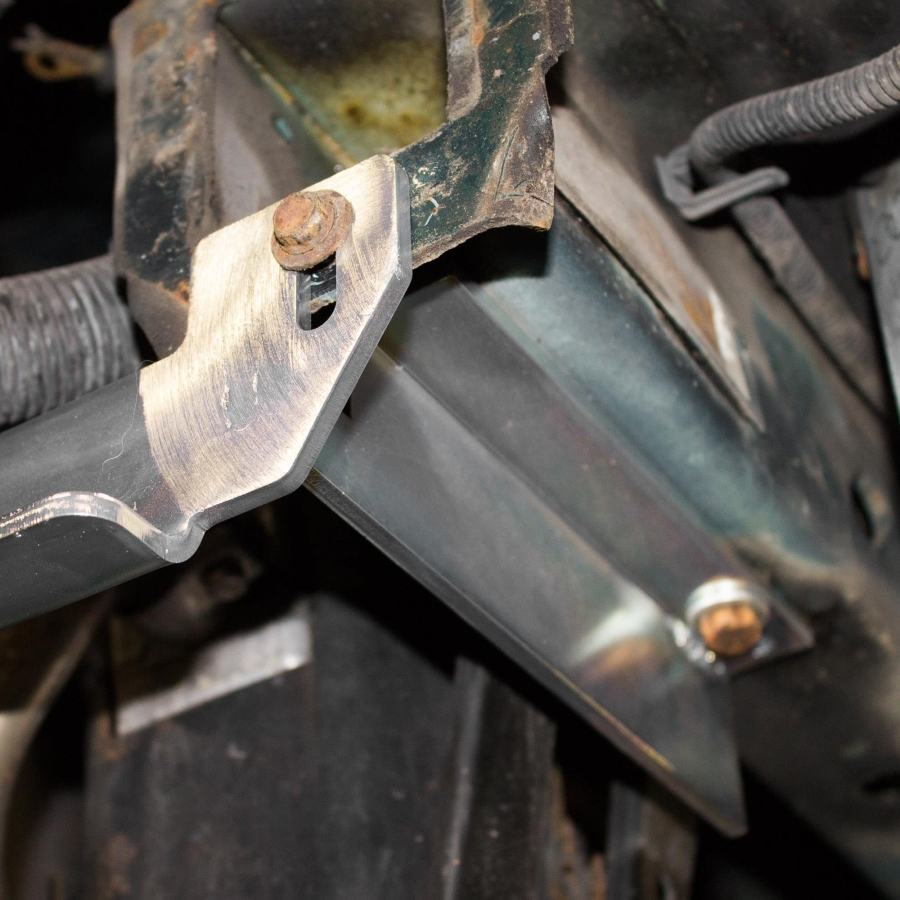

• Secure the opposite side from below and then from the front
• Attach the engine support bar to the auxiliary beam
• Lift or pull forward the gearbox as required

This setup enables safe and efficient transmission handling with minimal effort during workshop repairs.

Compatible Vehicles

Suitable for:

• VW T4 models from 1995
• Long front-end versions

Package Contents

• 1 x auxiliary support beam extension

Tool Reference Number

To be used as:

• KL-0206-1

Product Features

• Stahlmaxx quality tool
• High-quality materials
• Precision manufacturing
• Stable and secure mounting
• Suitable for professional workshop use

Original numbers are provided for comparison purposes only. This is not an original tool.

VW TRANSPORTER IV Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) (09.1990 - 12.2004) 2.4 D (75 HP, 55 kW)

VW TRANSPORTER IV Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) (09.1990 - 12.2004) 2.4 TDI (177 HP, 130 kW)

VW TRANSPORTER IV Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) (09.1990 - 12.2004) 2.5 (115 HP, 85 kW)

VW TRANSPORTER IV bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) (09.1990 - 12.2004) 2.5 Syncro (115 HP, 85 kW)

VW TRANSPORTER IV Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) (09.1990 - 12.2004) 2.5 TDI (102 HP, 75 kW)

VW TRANSPORTER IV Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) (09.1990 - 12.2004) 2.5 TDI (151 HP, 111 kW)

VW TRANSPORTER IV bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) (09.1990 - 12.2004) 2.5 TDI (88 HP, 65 kW)

VW TRANSPORTER IV Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) (09.1990 - 12.2004) 2.5 TDI Syncro (102 HP, 75 kW)

VW TRANSPORTER IV Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) (09.1990 - 12.2004) 2.8 VR 6 (140 HP, 103 kW)

VW TRANSPORTER IV bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) (09.1990 - 12.2004) 2.8 VR6 (204 HP, 150 kW)

VW TRANSPORTER IV Bus (70B, 70C, 7DB, 7DK, 70J, 70K, 7DC, 7DJ) (09.1990 - 12.2004) 2.8 VR6 Syncro (140 HP, 103 kW)

VW TRANSPORTER IV Box (70A, 70H, 7DA, 7DH) (07.1990 - 04.2003) 2.4 D (75 HP, 55 kW)

VW TRANSPORTER IV Box (70A, 70H, 7DA, 7DH) (07.1990 - 04.2003) 2.5 (115 HP, 85 kW)

VW TRANSPORTER IV Box (70A, 70H, 7DA, 7DH) (07.1990 - 04.2003) 2.5 Syncro (110 HP, 81 kW)

VW TRANSPORTER IV Box (70A, 70H, 7DA, 7DH) (07.1990 - 04.2003) 2.5 Syncro (115 HP, 85 kW)

VW TRANSPORTER IV Box (70A, 70H, 7DA, 7DH) (07.1990 - 04.2003) 2.5 TDI (102 HP, 75 kW)

VW TRANSPORTER IV Box (70A, 70H, 7DA, 7DH) (07.1990 - 04.2003) 2.5 TDI (151 HP, 111 kW)

VW TRANSPORTER IV Box (70A, 70H, 7DA, 7DH) (07.1990 - 04.2003) 2.5 TDI (88 HP, 65 kW)

VW TRANSPORTER IV Box (70A, 70H, 7DA, 7DH) (07.1990 - 04.2003) 2.5 TDI Syncro (102 HP, 75 kW)

VW TRANSPORTER IV Box (70A, 70H, 7DA, 7DH) (07.1990 - 04.2003) 2.8 VR6 (140 HP, 103 kW)

VW TRANSPORTER IV Box (70A, 70H, 7DA, 7DH) (07.1990 - 04.2003) 2.8 VR6 (204 hp, 150 kW)

VW TRANSPORTER IV Flatbed/Chassis (70E, 70L, 70M, 7DE, 7DL (07.1990 - 04.2003) 2.4 D (75 hp, 55 kW)

VW TRANSPORTER IV Flatbed/Chassis (70E, 70L, 70M, 7DE, 7DL (07.1990 - 04.2003) 2.5 (115 hp, 85 kW)

VW TRANSPORTER IV Flatbed/Chassis (70E, 70L, 70M, 7DE, 7DL (07.1990 - 04.2003) 2.5 Syncro (115 hp, 85 kW)

VW TRANSPORTER IV Flatbed/Chassis (70E, 70L, 70M, 7DE, 7DL (07.1990 - 04.2003) 2.5 TDI (102 hp, 75 kW)

VW TRANSPORTER IV Flatbed/Chassis (70E, 70L, 70M, 7DE, 7DL (07.1990 - 04.2003) 2.5 TDI (88 hp, 65 kW)

VW TRANSPORTER IV Flatbed/Chassis (70E, 70L, 70M, 7DE, 7DL (07.1990 - 04.2003) 2.5 TDI Syncro (102 hp, 75 kW)

VW TRANSPORTER IV Flatbed/Chassis (70E, 70L, 70M, 7DE, 7DL (07.1990 - 04.2003) 2.8 (140 hp, 103 kW)

VW TRANSPORTER IV Flatbed/Chassis (70E, 70L, 70M, 7DE, 7DL (07.1990 - 04.2003) 2.8 VR6 (204 hp, 150 kW)
