WiFi Color Endoscope with LED Illumination

This WiFi color endoscope is designed for inspection of hard-to-reach areas in automotive, aviation, household, workshop and industrial environments.

The portable self-contained system transmits live images wirelessly via WiFi directly to compatible Android and iOS mobile devices, eliminating the need for external monitors or wired connections.

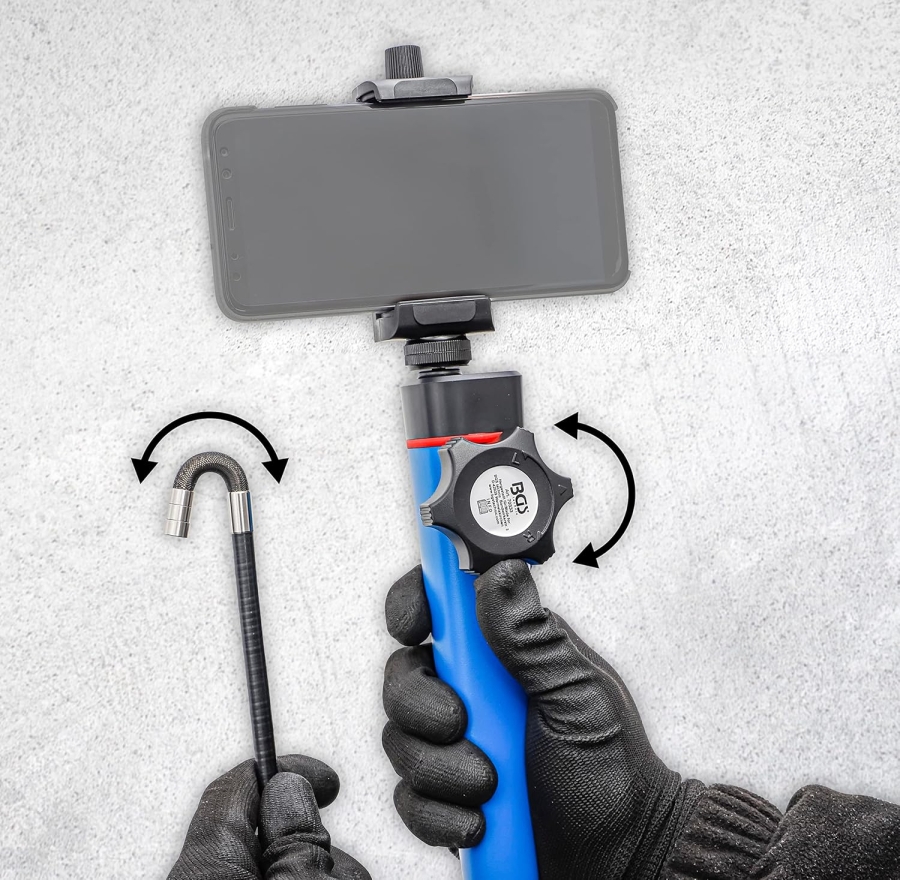

The semi-rigid camera probe features continuously adjustable articulation with a movement range of up to ±180°, allowing flexible navigation around obstacles and inside confined spaces. Integrated LED illumination improves visibility in dark inspection areas.

The compact battery-powered design with built-in rechargeable battery allows mobile operation independent of external power sources.

Suitable for professional workshop diagnostics, maintenance and industrial inspection tasks.

Technical Specifications

Camera Specifications

• Camera diameter: 8 mm
• Camera resolution: 1280 × 720 pixels
• Camera articulation angle: max. ±180°
• Viewing angle: 60°
• Focal distance: 30–80 mm
• Protection class: IP67

Recording Specifications

• Frame rate: 30 fps
• Video format: AVI
• Image format: JPG

Dimensions

• Probe length: 90 cm
• Total length: approx. 125 cm

Battery

• Polymer battery: 1800 mAh

Operating Temperature

• -20°C to +60°C

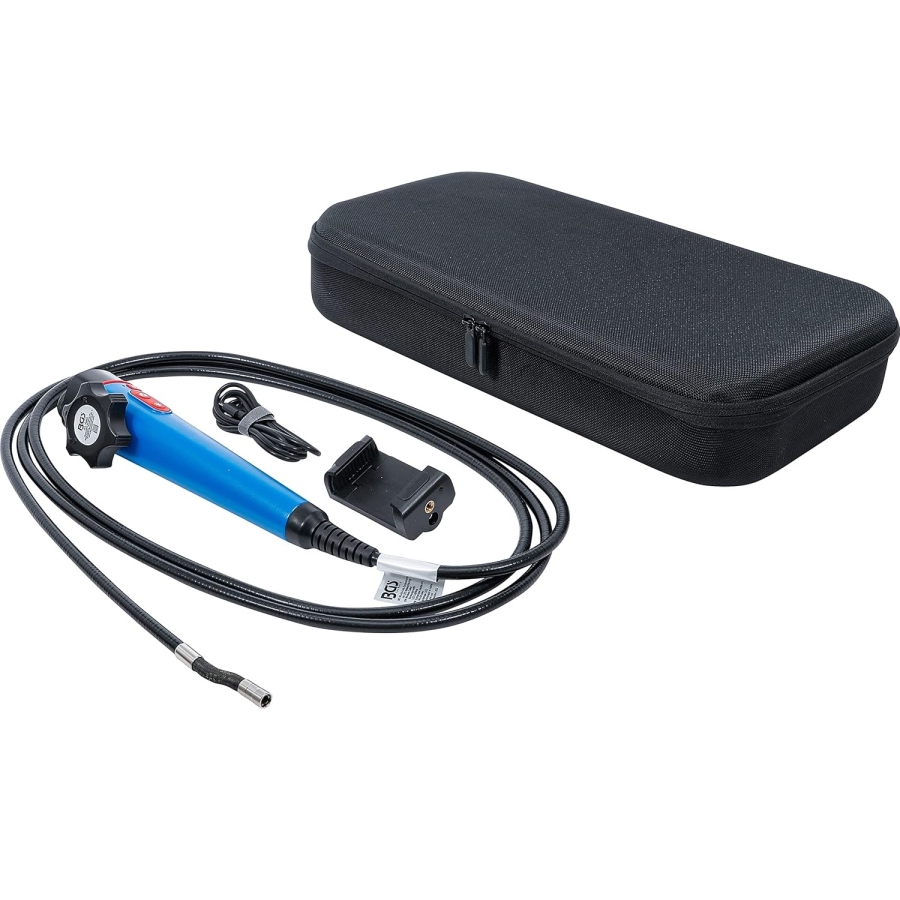

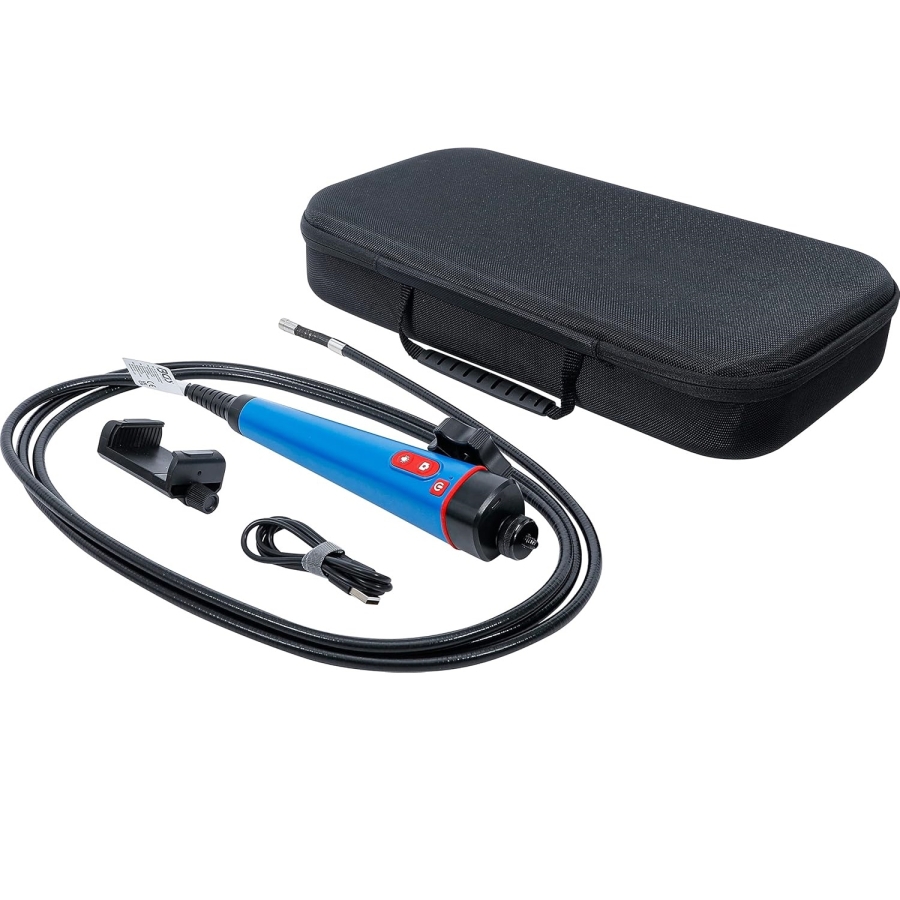

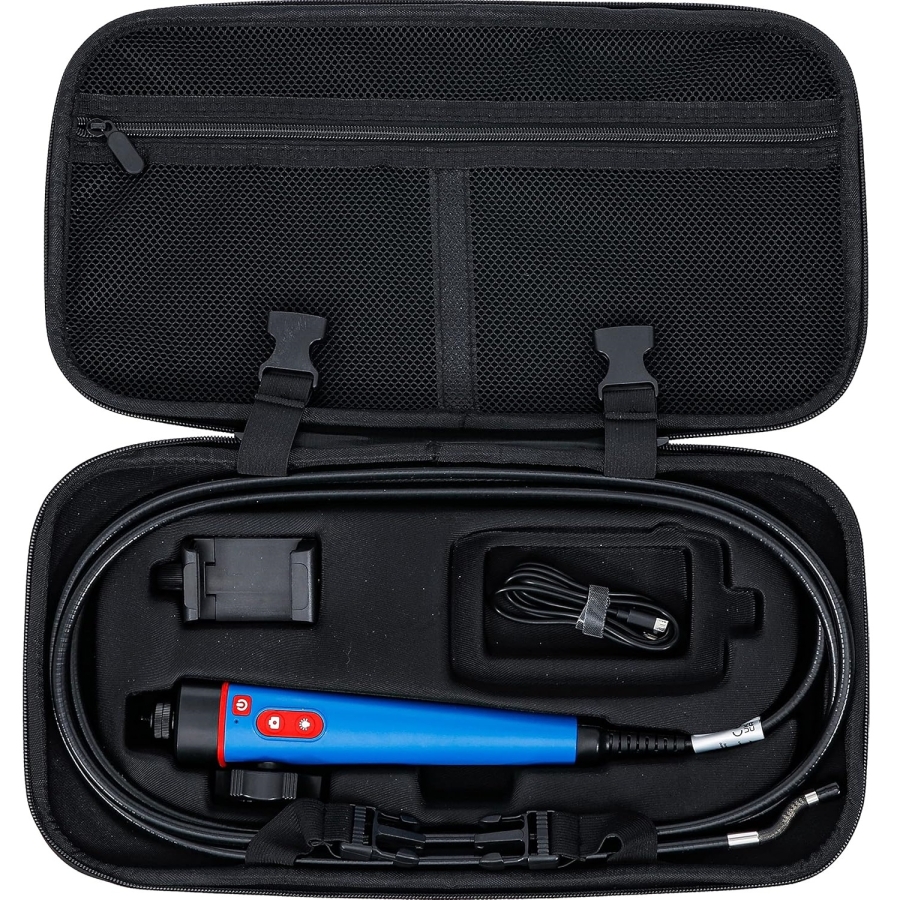

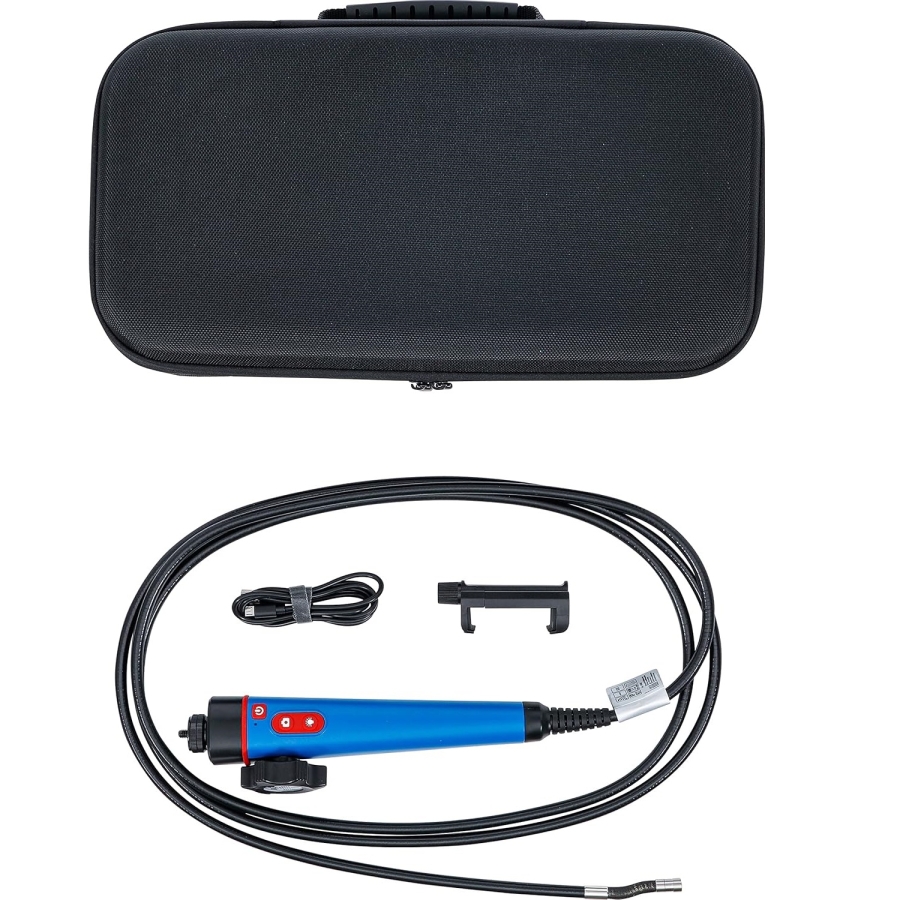

Set Contents

Included Components

• WiFi color endoscope
• Smartphone holder
• USB-A / Micro-USB charging cable
• Camera lens cleaning cloth

Applications

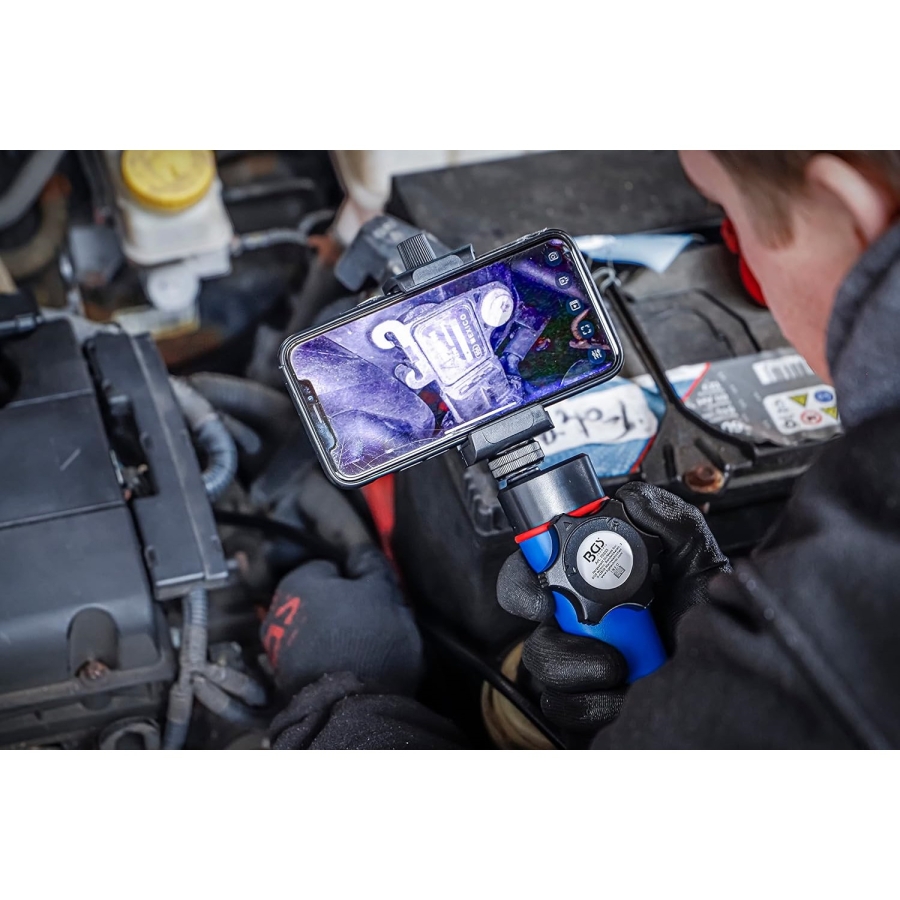

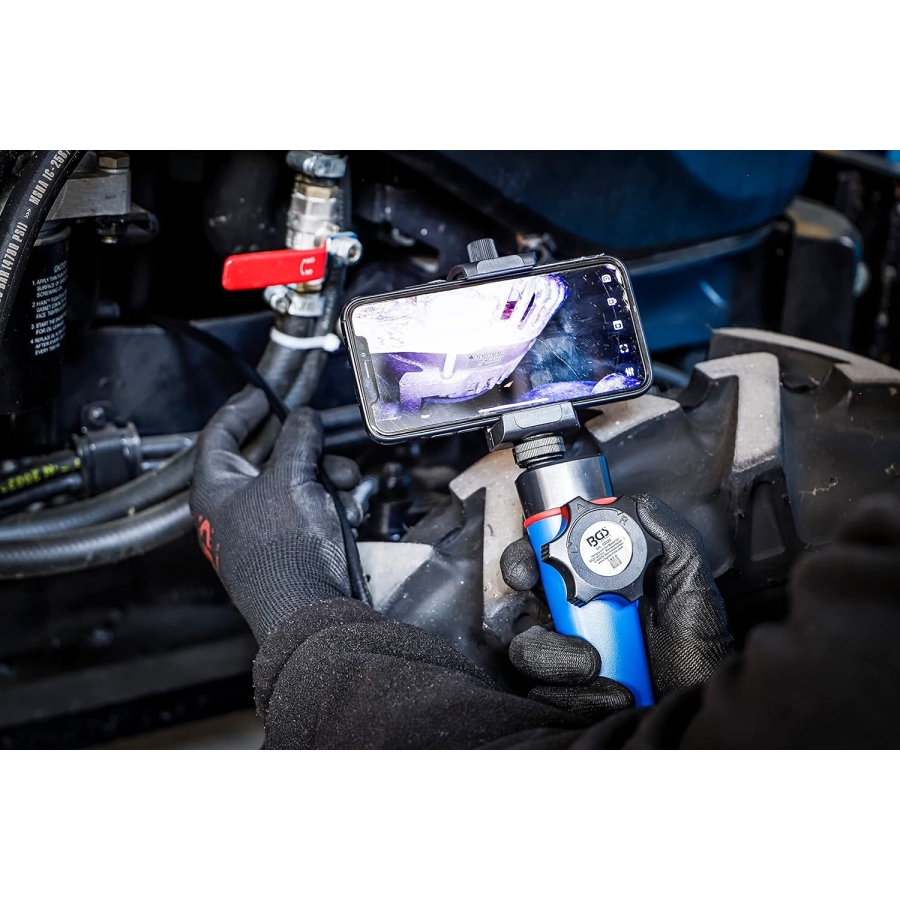

• Automotive inspections
• Aircraft inspections
• Workshop diagnostics
• Household inspections
• Industrial inspections
• Inspection of hard-to-access areas

Technical Features

• Wireless WiFi live image transmission
• Compatible with Android and iOS devices
• Semi-rigid articulated camera probe
• Integrated LED illumination
• Portable rechargeable system
• IP67 protected camera head
• Suitable for professional inspection applications
