Brake Caliper Carrier Guide Pin Thread Repair Kit 12 pcs M9x1.25 to M10x1.25

This 12-piece repair kit is designed for repairing damaged or stripped brake caliper guide pin threads in the wheel carrier, wheel bearing housing or brake caliper carrier. It is intended for cases where the original M9x1.25 mounting thread has been damaged and needs to be restored by enlarging it to M10x1.25.

Damage to the original guide pin thread is commonly caused by corrosion, excessive tightening torque or improper handling during brake caliper installation. Using this kit, a new M10x1.25 thread can be cut and fitted with the supplied repair guide pin.

The repaired M10x1.25 thread provides the required strength for continued use in the brake caliper mounting point.

Application

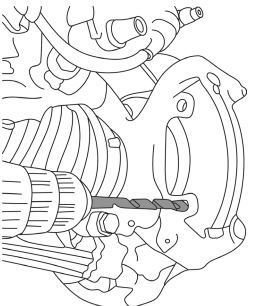

1. Drill the core hole using the included spiral drill bit.

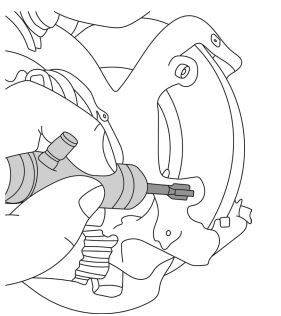

2. Cut a new M10x1.25 thread using the included tap.

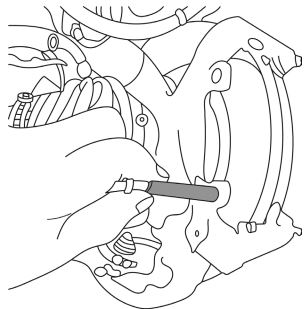

3. Install the M10x1.25 repair guide pin.

Suitable for

Suitable for repairing brake caliper guide pin threads on a wide range of vehicles, including models from:

Alfa Romeo, Audi, BMW, Chevrolet, Chrysler, Citroën, Dacia, Daewoo, Fiat, Ford, General Motors, Honda, Hyundai, Jaguar, Kia, Land Rover, Mazda, Mercedes-Benz, Mini, Nissan, Opel, Peugeot, Polestar, Porsche, Renault, Saab, Seat, Skoda, Talbot, Toyota, Vauxhall, Volvo and VW.

Suitable for guide pins with comparison numbers such as

VAG: as 1J0615219, 251615219, 251615219A
BMW / Mini: as 34110141349, 34111153200, 34111157041, 34111158200
Chevrolet: as 15254670
Chrysler: as 68144296AA
Citroën / Peugeot: as 443933
Daewoo: as 11817100081
Fiat / Alfa Romeo: as 77363591, 71739307
Ford: as 1682877, 6087586, 7201660, 81AB2L527AA, 95VW2L527AA, BV612C150AA
Honda: as 45004SEAE01
Hyundai / Kia: as 0K20A33694, 581011GA00
Jaguar: as C2C27297, JLM2213, JLM2249
Land Rover: as LR000750, LR003977, SYG000030
Mazda: as 1E0033694, 1E0133694, EC0133694, 0K20A33694
Mercedes-Benz: as 0004210818, A0004210818
Nissan: as 411399F500
Opel / GM: as 443933, 542880, 542881, 90009164, 90297771
Porsche: as 92835194700
Renault / Dacia: as 7701049101
Saab: as 8955486, 8969651, 90297771
Toyota: as 4771505010
Volvo / Polestar: as 30648017, 30666829, 3342541

Aftermarket comparison numbers:
ATE: as 990049, 11.8171-0008.1
Bosch: as 1987470506
FTE: as RS0018
Meyle: as 1006980008
Textar: as 48000100

Technical Data

• Spiral drill bit: Ø 8.8 mm
• Tap: M10x1.25
• Repair guide pin: M10x1.25
• Overall bolt length: 53 mm
• Shank length: 42 mm
• Guide pin diameter: 12 mm

Scope of Delivery

1 x Brake caliper guide pin thread repair kit, 12 pcs, M9x1.25 to M10x1.25

Contents:

• 1 x HSS spiral drill bit
• 1 x tap M10x1.25
• 10 x repair guide pins M10x1.25
• 1 x sturdy storage case with fitted foam insert

Alternative repair method / related products

• Item no. 117921 – Thread repair kit with pull-in sleeves for brake caliper guide pins, M9x1.25
• Item no. 124974 – Repair guide pin set, 5 pcs, M10x1.25, overall length 53 mm

Original numbers are for comparison purposes only. This is not an original manufacturer tool/product.

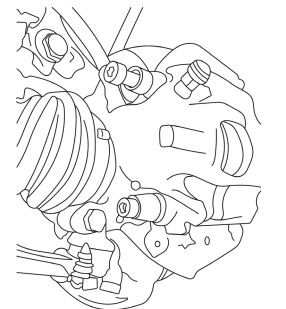

• Remove the brake caliper.

• Drill out the damaged M9 × 1.25 thread using a twist drill.

• Cut a new M10 × 1.25 thread using the supplied tap.

• Install the new guide pin into the newly cut thread and reinstall the brake caliper.
