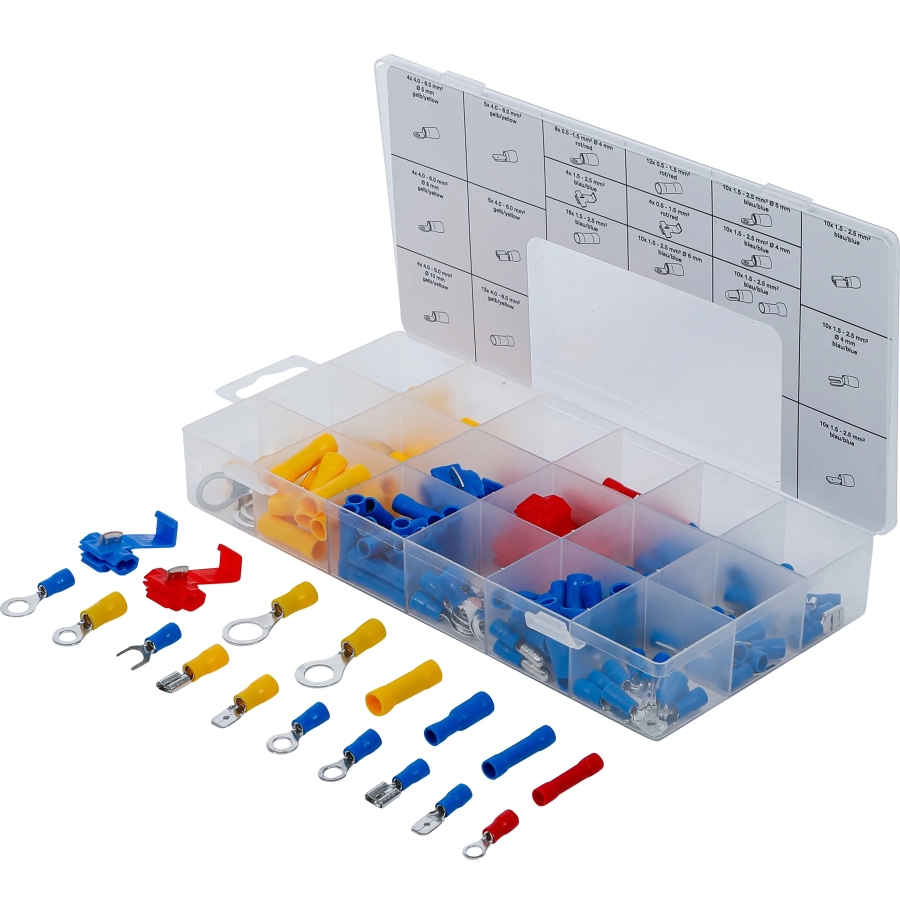

Electrical Crimp Terminal Assortment – 160 pcs.
Price:
€14.50
-
Code:14105
-
Weight:0.240 Kgs
Overview:
✔ Assortment of 160 electrical crimp terminals and connectors
✔ Suitable for cable cross-sections from 0.25 to 6 mm²
✔ Includes butt, blade, crimp splice and bullet connectors
✔ Ring and fork terminals in different sizes
✔ Partially and fully insulated versions
✔ Red, blue and yellow color coding
✔ Ring terminal diameters from 4 to 10 mm

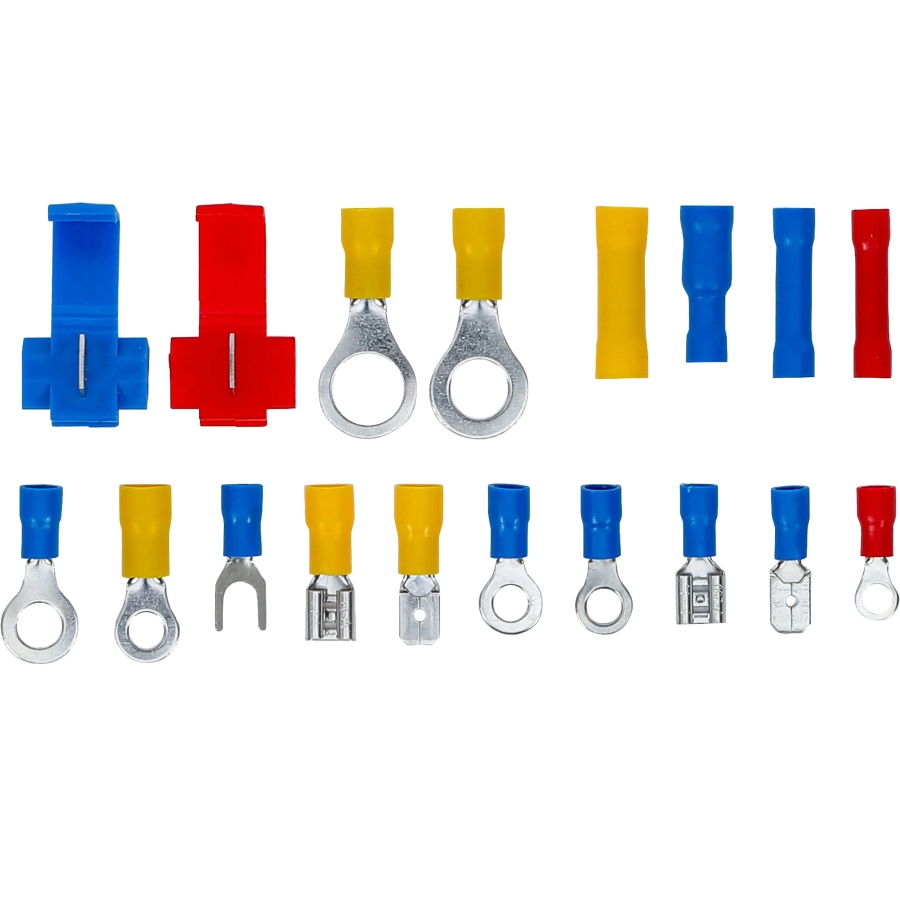

This 160-piece assortment contains different insulated terminals and connectors for creating and repairing electrical cable connections.
The set includes butt connectors, male and female blade terminals, crimp splice connectors, bullet connectors, ring terminals and fork terminals for cable cross-sections from 0.25 to 6 mm².
Butt and Crimp Splice Connectors
- 12 red butt connectors for cable cross-sections from 0.25 to 1.5 mm²
- 18 blue butt connectors for cable cross-sections from 1.5 to 2.5 mm²
- 12 yellow butt connectors for cable cross-sections from 4 to 6 mm²
- 4 red crimp splice connectors for cable cross-sections from 0.50 to 1.5 mm²
- 4 blue crimp splice connectors for cable cross-sections from 1.5 to 2.5 mm²
Blade and Bullet Terminals
- 10 blue partially insulated male blade terminals for cable cross-sections from 1.5 to 2.5 mm²
- 5 yellow partially insulated male blade terminals for cable cross-sections from 4 to 6 mm²
- 10 blue partially insulated female blade terminals for cable cross-sections from 1.5 to 2.5 mm²
- 5 yellow partially insulated female blade terminals for cable cross-sections from 4 to 6 mm²
- 10 blue partially insulated male bullet terminals for cable cross-sections from 1.5 to 2.5 mm²
- 10 blue fully insulated female bullet terminals for cable cross-sections from 1.5 to 2.5 mm²
Ring Terminals
- 4 yellow partially insulated ring terminals for cable cross-sections from 4 to 6 mm², Ø 5 mm
- 4 yellow partially insulated ring terminals for cable cross-sections from 4 to 6 mm², Ø 8 mm
- 4 yellow partially insulated ring terminals for cable cross-sections from 4 to 6 mm², Ø 10 mm
- 10 blue partially insulated ring terminals for cable cross-sections from 1.5 to 2.5 mm², Ø 4 mm
- 10 blue partially insulated ring terminals for cable cross-sections from 1.5 to 2.5 mm², Ø 5 mm
- 10 blue partially insulated ring terminals for cable cross-sections from 1.5 to 2.5 mm², Ø 6 mm
- 8 red partially insulated ring terminals for cable cross-sections from 0.5 to 1.5 mm², Ø 4 mm
Fork Terminals
- 10 blue partially insulated fork terminals for cable cross-sections from 1.5 to 2.5 mm², Ø 4 mm
Technical Data
- Cable cross-sections: 0.25–6 mm²
- Ring terminal diameters: 4, 5, 6, 8 and 10 mm
- Fork terminal diameter: 4 mm
- Insulation types: Partially and fully insulated
- Colors: Red, blue and yellow
- Contents: 160 pcs.
