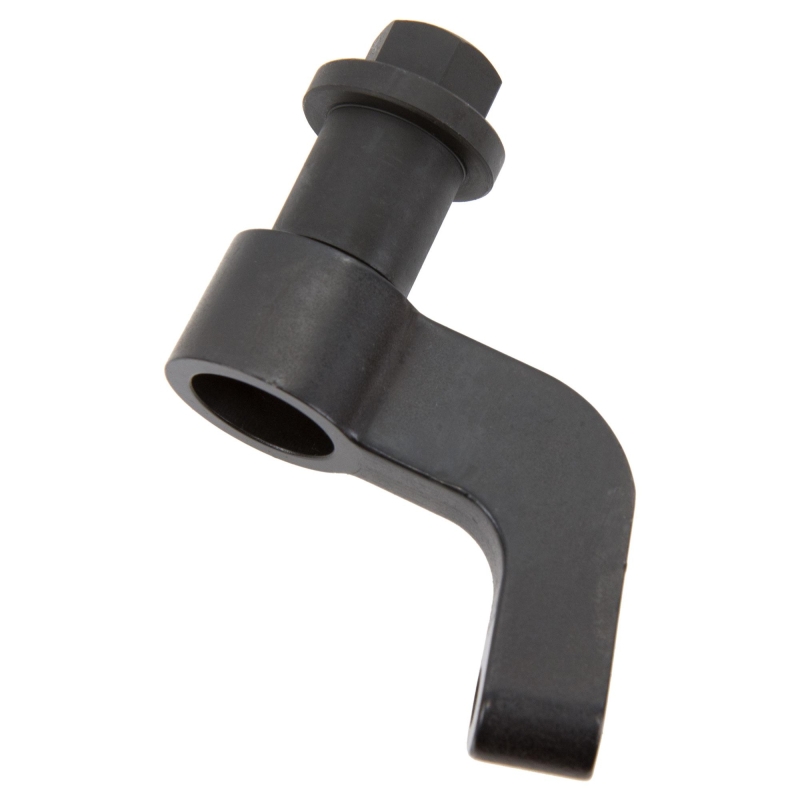

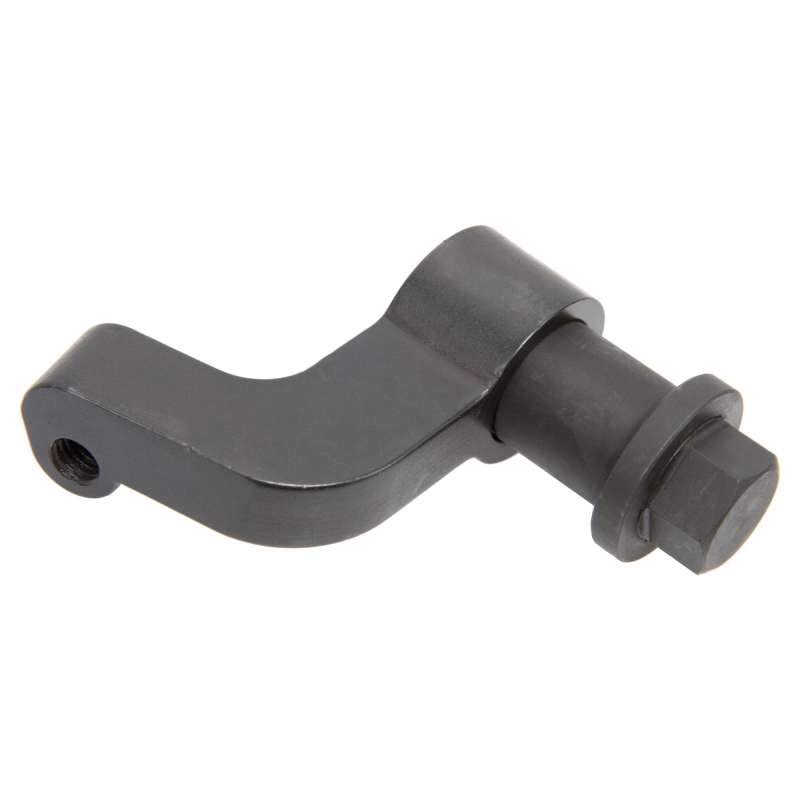

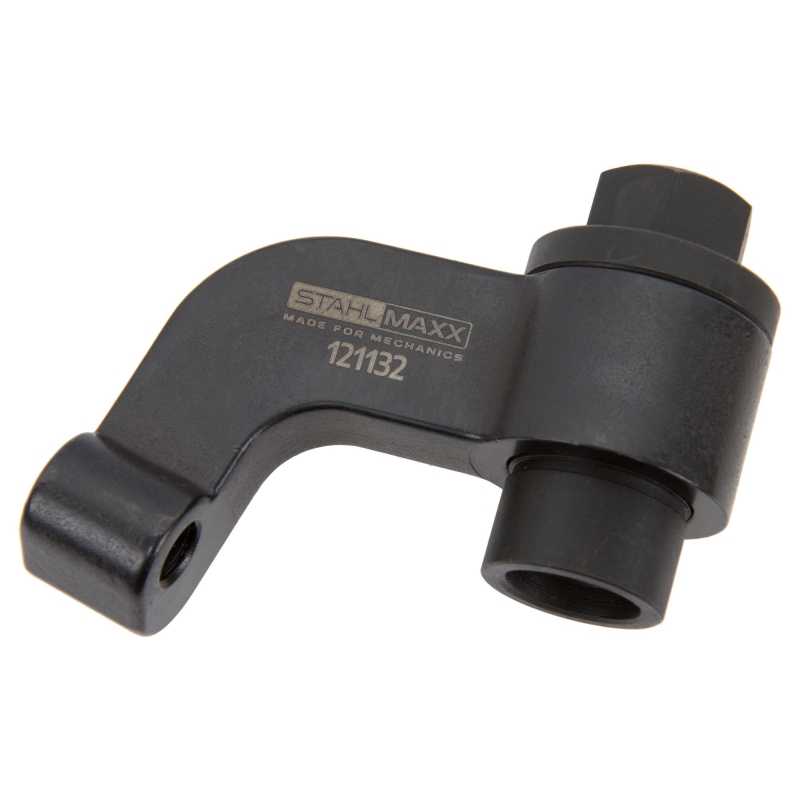

Extractor pentru injectoare Delphi – EA288 Piezo Common Rail (echivalent T10537)

Acest extractor special este conceput pentru demontarea injectorilor Delphi Piezo Common Rail utilizați în generația de motoare EA288 (din 2012).

Extractorul se înșurubează în conexiunea conductei de combustibil și este prevăzut cu filet interior M8x1.25 pentru extragere. Pentru utilizare este necesar un ciocan glisant compatibil M8x1.25. Recomandat: Art. Nr. 116739 (echivalent VW T10133/3, T10055).

Două injectoare sunt fixate cu o clemă comună. Clema poate fi îndepărtată doar după extragerea ambelor injectoare.

---

Serie motoare compatibile

EA288

• 1.4L 3 cilindri Common Rail (din 2014)

• 1.6L 4 cilindri Common Rail (din 2012)

• 2.0L 4 cilindri Common Rail (din 2015)

---

Coduri motor

1.4L:
CUSA, CUSB, CUTA, CYZA

1.6L:
CLHB, CRKB, CRKA, CXXA, CXXB, DBKA, DDYA, DDYB, DGTA, DGTB, DGTE

2.0L:
CAAA, CAAB, CXFA, CXGA, CXGB, CXHA, DAUA, DAUB, DASA

---

Numere de referință injectoare

04B130277J
04B130277N
04L130277AJ
04L130277G

---

Număr de referință OE

T10537 (doar pentru comparație)

---

Cupluri de strângere de referință

(Exemplu de referință: VW Golf 1.6 TDI BlueMotion 2016, motor CXXA. Respectați întotdeauna documentația producătorului.)

• Șurub clemă injector: 8 Nm + 270° (identic pentru 3 și 4 cilindri)

• Piulițe conductă înaltă presiune (rampă – injector): 28 Nm



Numerele originale sunt doar pentru referință; produsul nu este OEM.

AUDI A1 (8X1, 8XK) (05.2010 - 10.2018) 1.4 TDI (90 HP, 66 kW)

AUDI A1 Sportback (8XA, 8XF) (09.2011 - 10.2018) 1.4 TDI (90 HP, 66 kW)

AUDI A3 (8V1, 8VK) (09.2012 - 08.2016) 1.6 TDI (110 HP, 81 kW)

AUDI A3 (8V1, 8VK) (09.2012 - 08.2016) 1.6 TDI (115 HP, 85 kW)

AUDI A3 Cabriolet (8V7, 8VE) (10.2013 - 10.2018) 1.6 TDI (110 HP, 81 kW)

AUDI A3 Cabriolet (8V7, 8VE) (10.2013 - 10.2018) 1.6 TDI (115 HP, 85 kW)

AUDI A3 Sedan (8VS, 8VM) (05.2013 - 07.2019) 1.6 TDI (110 HP, 81 kW)

AUDI A3 Sedan (8VS, 8VM) (05.2013 - 07.2019) 1.6 TDI (115 HP, 85 kW)

AUDI A3 Sedan (8VS, 8VM) (05.2013 - 07.2019) 1.6 TDI quattro (110 HP, 81 kW)

AUDI A3 Sedan (8VS, 8VM) (05.2013 - 07.2019) 30 TDI (115 HP, 85 kW)

AUDI A3 Sportback (8VA, 8VF) (09.2012 - 07.2018) 1.6 TDI (110 HP, 81 kW)

AUDI A3 Sportback (8VA, 8VF) (09.2012 - 07.2018) 1.6 TDI (115 HP, 85 kW)

AUDI A3 Sportback (8VA, 8VF) (09.2012 - 07.2018) 1.6 TDI quattro (110 HP, 81 kW)

AUDI A3 Sportback (8VA, 8VF) (09.2012 - 07.2018) 30 TDI (115 HP, 85 kW)

AUDI Q2 (GAB, GAG) (06.2016 - 10.2018) 1.6 TDI (115 HP, 85 kW)

AUDI Q2 (GAB, GAG) (06.2016 - 10.2018) 30 TDI (115 HP, 85 kW)

SEAT ARONA (KJ7) (07.2017 - ) 1.6 TDI (115 HP, 85 kW)

SEAT ARONA (KJ7) (07.2017 - ) 1.6 TDI (95 HP, 70 kW)

SEAT ATECA (KH7, KHP) (04.2016 - ) 1.6 TDI (115 HP, 85 kW)

SEAT IBIZA IV (6J5, 6P1) (03.2008 - 12.2017) 1.4 TDI (105 HP, 77 kW)

SEAT IBIZA IV (6J5, 6P1) (03.2008 - 12.2017) 1.4 TDI (75 HP, 55 kW)

SEAT IBIZA IV (6J5, 6P1) (03.2008 - 12.2017) 1.4 TDI (90 HP, 66 kW)

SEAT IBIZA IV SC (6J1, 6P5) (06.2008 - 12.2017) 1.4 TDI (105 HP, 77 kW)

SEAT IBIZA IV SC (6J1, 6P5) (06.2008 - 12.2017) 1.4 TDI (75 HP, 55 kW)

SEAT IBIZA IV SC (6J1, 6P5) (06.2008 - 12.2017) 1.4 TDI (90 HP, 66 kW)

SEAT IBIZA IV ST (6J8, 6P8) (03.2010 - 07.2016) 1.4 TDI (105 HP, 77 kW)

SEAT IBIZA IV ST (6J8, 6P8) (03.2010 - 07.2016) 1.4 TDI (75 HP, 55 kW)

SEAT IBIZA IV ST (6J8, 6P8) (03.2010 - 07.2016) 1.4 TDI (90 HP, 66 kW)

SEAT IBIZA V (KJ1) (01.2017 - ) 1.6 TDI (115 HP, 85 kW)

SEAT IBIZA V (KJ1) (01.2017 - ) 1.6 TDI (95 HP, 70 kW)

SEAT LEON (5F1) (09.2012 - ) 1.6 TDI (110 HP, 81 kW)

SEAT LEON (5F1) (09.2012 - ) 1.6 TDI (115 HP, 85 kW)

SEAT LEON (5F1) (09.2012 - ) 1.6 TDI (90 HP, 66 kW)

SEAT LEON Box Body/Hatchback (5F1) (09.2012 - 10.2016) 1.6 TDI (110 HP, 81 kW)

SEAT LEON Box Body/Hatchback (5F1) (09.2012 - 10.2016) 1.6 TDI (115 HP, 85 kW)

SEAT LEON Box Body/Hatchback (5F1) (09.2012 - 10.2016) 1.6 TDI (90 HP, 66 kW)

SEAT LEON SC (5F5) (01.2013 - 12.2018) 1.6 TDI (110 HP, 81 kW)

SEAT LEON SC (5F5) (01.2013 - 12.2018) 1.6 TDI (115 HP, 85 kW)

SEAT LEON SC (5F5) (01.2013 - 12.2018) 1.6 TDI (90 HP, 66 kW)

SEAT LEON ST (5F8) (09.2012 - ) 1.6 TDI (110 HP, 81 kW)

SEAT LEON ST (5F8) (09.2012 - ) 1.6 TDI (115 HP, 85 kW)

SEAT LEON ST (5F8) (09.2012 - ) 1.6 TDI (90 HP, 66 kW)

SEAT LEON ST (5F8) (09.2012 - ) 1.6 TDI 4Drive (110 HP, 81 kW)

SEAT LEON ST (5F8) (09.2012 - ) 1.6 TDI 4Drive (115 HP, 85 kW)

SEAT LEON ST Box Body/Estate (5F8) (01.2013 - ) 1.6 TDI (110 HP, 81 kW)

SEAT LEON ST Box Body/Estate (5F8) (01.2013 - ) 1.6 TDI (115 HP, 85 kW)

SEAT TOLEDO IV (KG3) (07.2012 - 04.2019) 1.4 TDI (90 HP, 66 kW)

SKODA FABIA III (NJ3) (08.2014 - ) 1.4 TDI (105 HP, 77 kW)

SKODA FABIA III (NJ3) (08.2014 - ) 1.4 TDI (75 HP, 55 kW)

SKODA FABIA III (NJ3) (08.2014 - ) 1.4 TDI (90 HP, 66 kW)

SKODA FABIA III Estate (NJ5) (08.2014 - ) 1.4 TDI (105 HP, 77 kW)

SKODA FABIA III Estate (NJ5) (08.2014 - ) 1.4 TDI (75 HP, 55 kW)

SKODA FABIA III Estate (NJ5) (08.2014 - ) 1.4 TDI (90 HP, 66 kW)

SKODA KAMIQ (NW4) (07.2019 - ) 1.6 TDI (115 HP, 85 kW)

SKODA KAMIQ (NW4) (07.2019 - ) 1.6 TDI (95 HP, 70 kW)

SKODA KAROQ (NU7) (07.2017 - ) 1.6 TDI (115 HP, 85 kW)

SKODA OCTAVIA IV (5E3, NL3, NR3) (11.2012 - 02.2017) 1.6 TDI (110 HP, 81 kW)

SKODA OCTAVIA IV (5E3, NL3, NR3) (11.2012 - 02.2017) 1.6 TDI (115 HP, 85 kW)

SKODA OCTAVIA IV (5E3, NL3, NR3) (11.2012 - 02.2017) 1.6 TDI (90 HP, 66 kW)

SKODA OCTAVIA IV (5E3, NL3, NR3) (11.2012 - 02.2017) 1.6 TDI 4x4 (110 HP, 81 kW)

SKODA OCTAVIA IV (5E3, NL3, NR3) (11.2012 - 02.2017) 1.6 TDI 4x4 (115 HP, 85 kW)

SKODA OCTAVIA IV Combi (5E5, 5E6) (11.2012 - 02.2017) 1.6 TDI (110 HP, 81 kW)

SKODA OCTAVIA IV Combi (5E5, 5E6) (11.2012 - 02.2017) 1.6 TDI (115 HP, 85 kW)

SKODA OCTAVIA IV Combi (5E5, 5E6) (11.2012 - 02.2017) 1.6 TDI (90 HP, 66 kW)

SKODA OCTAVIA IV Combi (5E5, 5E6) (11.2012 - 02.2017) 1.6 TDI 4x4 (110 HP, 81 kW)

SKODA OCTAVIA IV Combi (5E5, 5E6) (11.2012 - 02.2017) 1.6 TDI 4x4 (115 HP, 85 kW)

SKODA RAPID (NH3) (07.2012 - 12.2019) 1.4 TDI (90 HP, 66 kW)

SKODA RAPID Spaceback (NH1) (07.2012 - 12.2019) 1.4 TDI (90 HP, 66 kW)

SKODA SCALA (NW1) (02.2019 - ) 1.6 TDI (116 HP, 85 kW)

VW CALIFORNIA T5 Camper (7EC, 7EF, 7EG, 7HF) (09.2009 - 08.2015) 2.0 TDI (102 HP, 75 kW)

VW CALIFORNIA T5 Camper (7EC, 7EF, 7EG, 7HF) (09.2009 - 08.2015) 2.0 TDI (84 HP, 62 kW)

VW CALIFORNIA T6 Camper (SGC, SGG, SHC) (04.2015 - 07.2019) 2.0 TDI (84 HP, 62 kW)

VW CALIFORNIA T6 Camper (SGC, SGG, SHC) (04.2015 - 12.2019) 2.0 TDI (102 HP, 75 kW)

VW CALIFORNIA T6 Camper (SGC, SGG, SHC) (04.2015 - 12.2024) 2.0 TDI (150 HP, 110 kW)

VW CALIFORNIA T6 Camper (SGC, SGG, SHC) (08.2015 - 12.2024) 2.0 TDI 4motion (150 HP, 110 kW)

VW CRAFTER Bus (SYI, SYJ) (09.2016 - ) 2.0 TDI (102 HP, 75 kW)

VW CRAFTER Bus (SYI, SYJ) (09.2016 - ) 2.0 TDI (140 HP, 103 kW)

VW CRAFTER Bus (SYI, SYJ) (09.2016 - ) 2.0 TDI 4motion (140 HP, 103 kW)

VW CRAFTER Box (SY_, SX_) (09.2016 - ) 2.0 TDI (102 HP, 75 kW)

VW CRAFTER Box (SY_, SX_) (09.2016 - ) 2.0 TDI (140 hp, 103 kW)

VW CRAFTER Panel Van (SY_, SX_) (09.2016 - ) 2.0 TDI 4motion (140 hp, 103 kW)

VW CRAFTER Panel Van (SY_, SX_) (09.2016 - ) 2.0 TDI RWD (122 hp, 90 kW)

VW CRAFTER Flatbed/Chassis (SZ_) (11.2016 - ) 2.0 TDI (102 hp, 75 kW)

VW CRAFTER Flatbed/Chassis (SZ_) (11.2016 - ) 2.0 TDI (140 hp, 103 kW)

VW CRAFTER Flatbed/Chassis (SZ_) (11.2016 - ) 2.0 TDI 4motion (140 hp, 103 kW)

VW CRAFTER Platform/Chassis (SZ_) (11.2016 - ) 2.0 TDI RWD (122 HP, 90 kW)

VW GOLF ALLTRACK VII Variant (BA5, BV5) (12.2014 - 05.2018) 1.6 TDI 4motion (110 HP, 81 kW)

VW GOLF SPORTSVAN VII (AM1, AN1) (02.2014 - 11.2017) 1.6 TDI (110 HP, 81 kW)

VW GOLF SPORTSVAN VII (AM1, AN1) (02.2014 - 11.2017) 1.6 TDI (115 HP, 85 kW)

VW GOLF SPORTSVAN VII (AM1, AN1) (02.2014 - 11.2017) 1.6 TDI (90 HP, 66 kW)

VW GOLF VAN VII Variant (BA5) (04.2013 - 03.2017) 1.6 TDi BlueMotion (110 HP, 81 kW)

VW GOLF VAN VII Variant (BA5) (04.2013 - 03.2017) 1.6 TDi BlueMotion (90 HP, 66 kW)

VW GOLF VII (5G1, BQ1, BE1, BE2) (08.2012 - 05.2019) 1.6 TDI (110 HP, 81 kW)

VW GOLF VII (5G1, BQ1, BE1, BE2) (08.2012 - 05.2019) 1.6 TDI (115 HP, 85 kW)

VW GOLF VII (5G1, BQ1, BE1, BE2) (08.2012 - 05.2019) 1.6 TDI (90 HP, 66 kW)

VW GOLF VII (5G1, BQ1, BE1, BE2) (08.2012 - 05.2019) 1.6 TDI 4motion (110 HP, 81 kW)

VW GOLF VII Van (5G1) (08.2012 - ) 1.6 TDi BlueMotion (110 HP, 81 kW)

VW GOLF VII Van (5G1) (08.2012 - ) 1.6 TDi BlueMotion (90 HP, 66 kW)

VW GOLF VII Variant (BA5, BV5) (04.2013 - 05.2018) 1.6 TDI (110 HP, 81 kW)

VW GOLF VII Variant (BA5, BV5) (04.2013 - 05.2018) 1.6 TDI (115 HP, 85 kW)

VW GOLF VII Variant (BA5, BV5) (04.2013 - 05.2018) 1.6 TDI (90 HP, 66 kW)

VW GOLF VII Variant (BA5, BV5) (04.2013 - 05.2018) 1.6 TDI 4motion (110 HP, 81 kW)

VW Grand CALIFORNIA Camper (SCB, SCC) (04.2019 - 12.2024) 2.0 TDI (140 HP, 103 kW)

VW Grand CALIFORNIA Camper (SCB, SCC) (04.2019 - 12.2024) 2.0 TDI 4motion (140 HP, 103 kW)

VW MULTIVAN V (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) (04.2003 - 08.2015) 2.0 TDI (102 HP, 75 kW)

VW MULTIVAN V (7HM, 7HN, 7HF, 7EF, 7EM, 7EN) (04.2003 - 08.2015) 2.0 TDI (84 HP, 62 kW)

VW MULTIVAN VI (SGF, SGM, SGN, SHM, SHN) (04.2015 - ) 2.0 TDI (102 HP, 75 kW)

VW MULTIVAN VI (SGF, SGM, SGN, SHM, SHN) (04.2015 - ) 2.0 TDI (150 HP, 110kW)

VW MULTIVAN VI (SGF, SGM, SGN, SHM, SHN) (04.2015 - ) 2.0 TDI (84 HP, 62 kW)

VW MULTIVAN VI (SGF, SGM, SGN, SHM, SHN) (04.2015 - ) 2.0 TDI 4motion (150 HP, 110 kW)

VW POLO V (6R1, 6C1) (03.2009 - 03.2020) 1.4 TDI (105 HP, 77 kW)

VW POLO V (6R1, 6C1) (03.2009 - 03.2020) 1.4 TDI (75 HP, 55 kW)

VW POLO V (6R1, 6C1) (03.2009 - 03.2020) 1.4 TDI (90 HP, 66 kW)

VW POLO VI (AW1, BZ1) (06.2017 - ) 1.6 TDI (95 HP, 70 kW)

VW POLO Van (6R) (03.2009 - 05.2014) 1.4 TDI (90 HP, 66 kW)

VW POLO Van (6R) (03.2014 - 10.2017) 1.4 TDI (105 HP, 77 kW)

VW T-CROSS (C11) (12.2018 - ) 1.6 TDi (95 HP, 70 kW)

VW T-ROC (A11) (07.2017 - ) 1.6 TDI (115 HP, 85 kW)

VW TOURAN (5T1) (05.2015 - 07.2019) 1.6 TDI (110 HP, 81 kW)

VW TRANSPORTER / CARAVELLE VI Bus (SGB, SGG, SGJ, SGC, SHB, SHJ (04.2015 - ) 2.0 TDI (102 HP, 75 kW)

VW TRANSPORTER / CARAVELLE VI Bus (SGB, SGG, SGJ, SGC, SHB, SHJ (04.2015 - ) 2.0 TDI (150 HP, 110 kW)

VW TRANSPORTER / CARAVELLE VI Bus (SGB, SGG, SGJ, SGC, SHB, SHJ (04.2015 - ) 2.0 TDI (84 HP, 62 kW)

VW TRANSPORTER / CARAVELLE VI Bus (SGB, SGG, SGJ, SGC, SHB, SHJ (04.2015 - ) 2.0 TDI 4motion (150 HP, 110 kW)

VW TRANSPORTER V Bus (7HB, 7HJ, 7EB, 7EJ, 7EF, 7EG, 7HF, 7EC) (04.2003 - 08.2015) 2.0 TDI (102 HP, 75 kW)

VW TRANSPORTER V Bus (7HB, 7HJ, 7EB, 7EJ, 7EF, 7EG, 7HF, 7EC) (04.2003 - 08.2015) 2.0 TDI (84 HP, 62 kW)

VW TRANSPORTER V Box (7HA, 7HH, 7EA, 7EH) (04.2003 - 08.2015) 2.0 TDI (102 HP, 75 kW)

VW TRANSPORTER V Box (7HA, 7HH, 7EA, 7EH) (04.2003 - 08.2015) 2.0 TDI (84 hp, 62 kW)

VW TRANSPORTER V Flatbed/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, (04.2003 - 08.2015) 2.0 TDI (102 hp, 75 kW)

VW TRANSPORTER V Flatbed/Chassis (7JD, 7JE, 7JL, 7JY, 7JZ, (04.2003 - 08.2015) 2.0 TDI (84 hp, 62 kW)

VW TRANSPORTER VI Panel Van (SGA, SGH, SHA, SHH) (04.2015 - 06.2016) 2.0 TDI (102 hp, 75 kW)

VW TRANSPORTER VI Panel Van (SGA, SGH, SHA, SHH) (04.2015 - 06.2016) 2.0 TDI (150 hp, 110 kW)

VW TRANSPORTER VI Panel Van (SGA, SGH, SHA, SHH) (04.2015 - 06.2016) 2.0 TDI (84 hp, 62 kW)

VW TRANSPORTER VI Panel Van (SGA, SGH, SHA, SHH) (04.2015 - 06.2016) 2.0 TDI 4motion (150 hp, 110 kW)

VW TRANSPORTER VI Flatbed/Chassis (SFD, SFE, SFL, SFZ, SJD) (04.2015 - 06.2016) 2.0 TDI (102 hp, 75 kW)

VW TRANSPORTER VI Flatbed/Chassis (SFD, SFE, SFL, SFZ, SJD (04.2015 - 06.2016) 2.0 TDI (150 hp, 110 kW)

VW TRANSPORTER VI Flatbed/Chassis (SFD, SFE, SFL, SFZ, SJD (04.2015 - 06.2016) 2.0 TDI (84 hp, 62 kW)

VW TRANSPORTER VI Flatbed/Chassis (SFD, SFE, SFL, SFZ, SJD (04.2015 - 06.2016) 2.0 TDI 4motion (150 hp, 110 kW
