Shaft Seal Tool for DSG 7-Speed 0B5 S-Tronic Transmissions Audi Porsche, as T40198, T40198/1

Specialized installation tool set designed for mounting the transmission input shaft seal on DSG 7-speed 0B5 S-Tronic wet clutch gearboxes used in many Audi and Porsche models.

The clutch assembly is sealed with a cover and shaft seal. During clutch pack replacement or transmission repair procedures, the shaft seal should always be renewed to ensure proper sealing and reliable transmission operation.

For flywheel removal, the use of item no. 123284, to be used as T40176, is recommended.

The input shaft seal can be removed using extraction hooks such as item no. 116542, to be used as T20143.

Suitable for professional workshop servicing and transmission repair operations.

Application Procedure

To protect the inner sealing surface, the protective installation sleeve is first placed over the shaft.

The seal is then pressed into position using the pressure adapter until it reaches the seating surface.

Installation can be carried out using a plastic or rubber hammer.

Important Information

Before installation, the outer circumference of the new shaft seal must be lubricated with transmission oil.

The space between the sealing lip and dust lip inside the shaft seal should be filled halfway with sealing grease.

Recommended sealing grease:

• G052128A1
• G055128A1

Always verify the correct specification according to the parts catalog.

Compatible Transmission Codes 0B5

NUJ, NHL, NRW, NUS, NHS, NSC, NHQ, NSA, NUR, NHN, NRY, NYP, PJW, PWZ, PWW, PWY, PWU, PJU, SKL, SKM

Compatible Vehicles

Audi

• Audi A4 B8 / 8K (2007–2016)
• Audi A5 8F / 8T (2007–2018)
• Audi A6 C7 / 4G (2010–2018)
• Audi Q5 8R (2008–2017)

Porsche

• Porsche Macan (2014–2019)

Product Highlights

✔ Professional-grade Stahlmaxx quality tool
✔ Suitable for procedures according to repair manuals
✔ Manufactured from high-quality materials

Reference Numbers

To be used as:

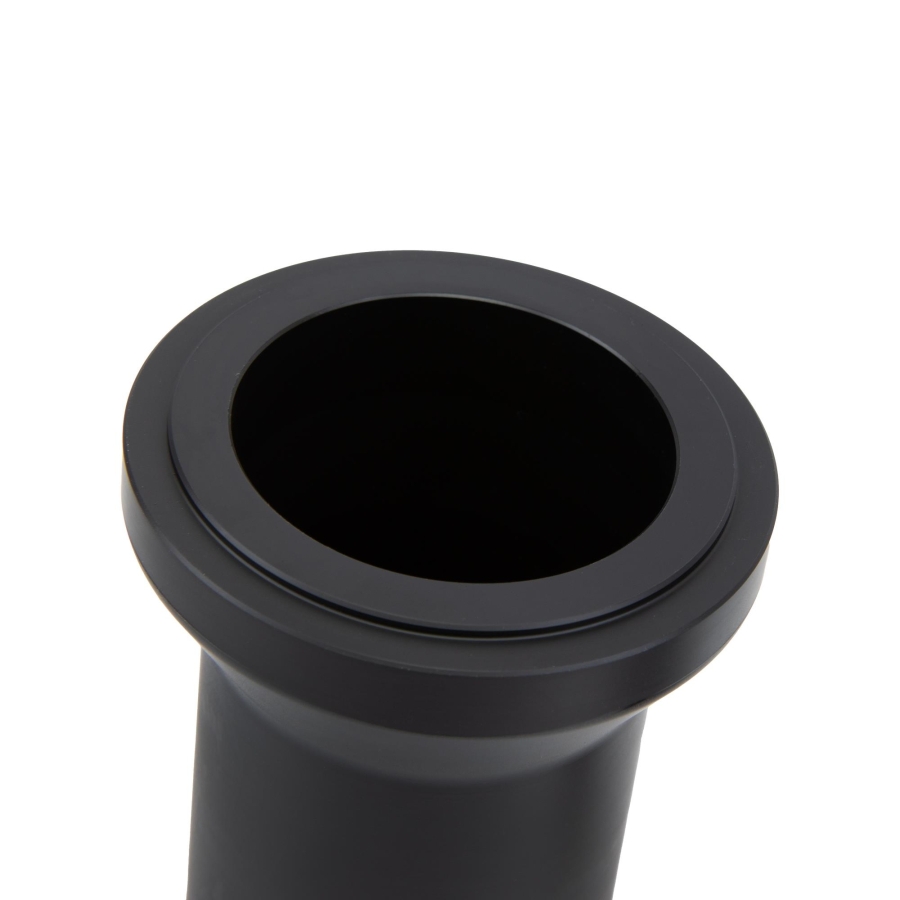

• T40198 Pressure adapter for shaft seal installation on 0B5 S-Tronic transmissions
• T40198/1 Protective installation sleeve for shaft seal installation on 0B5 S-Tronic transmissions

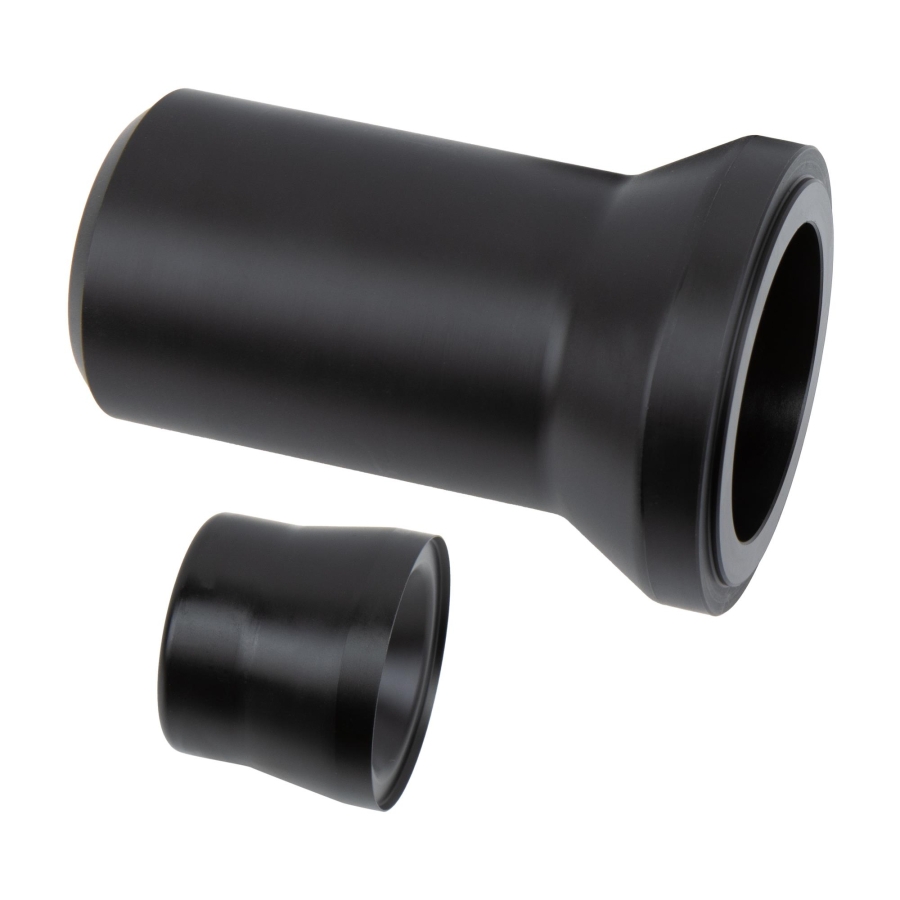

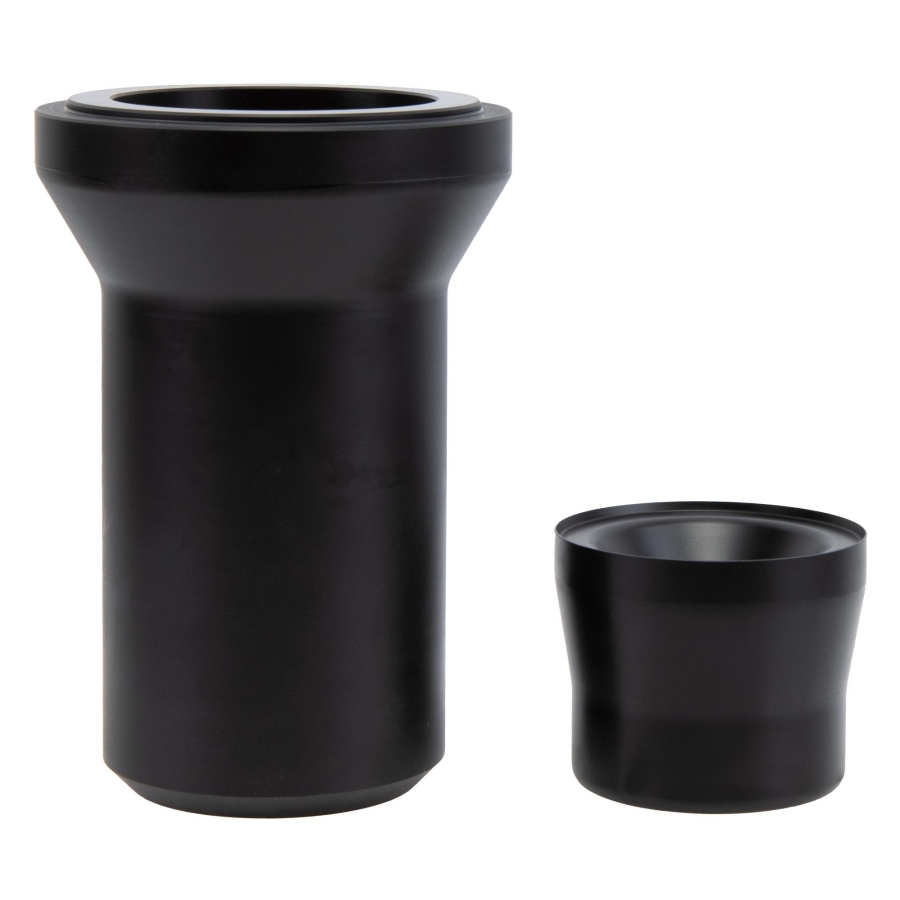

Package Contents

• Pressure adapter for shaft seal installation on 0B5 S-Tronic transmissions, to be used as T40198
• Protective installation sleeve for shaft seal installation on 0B5 S-Tronic transmissions, to be used as T40198/1

Original numbers are used for comparison purposes only. This is not an original manufacturer tool.
