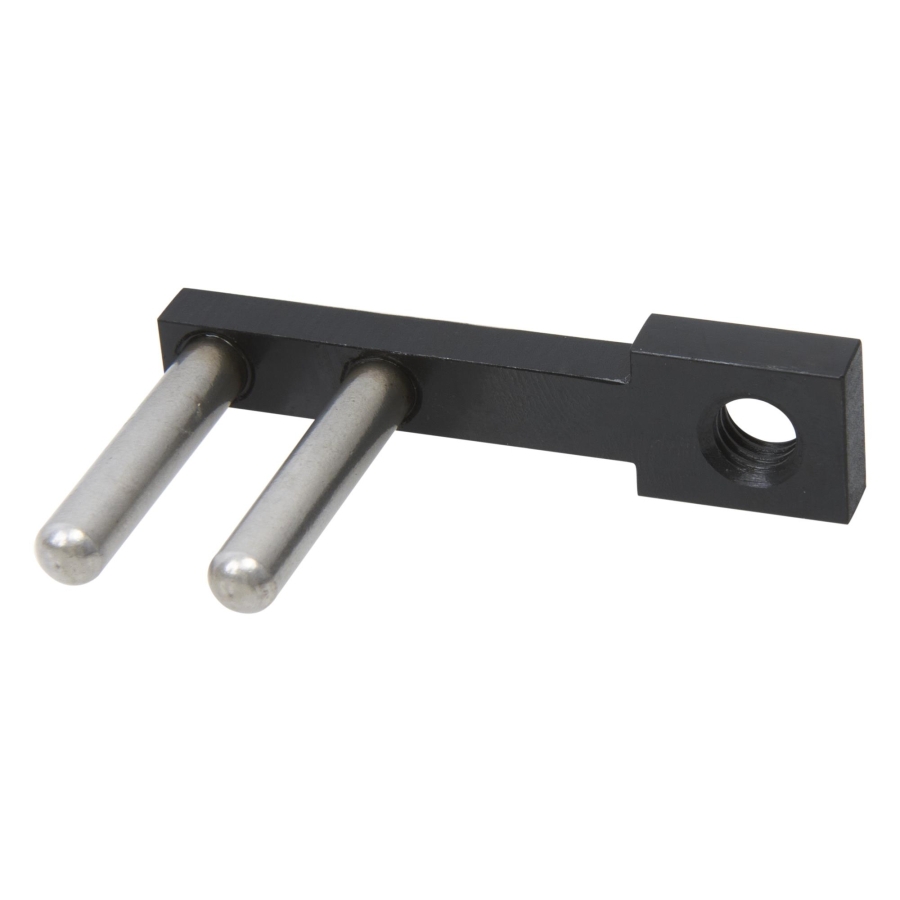

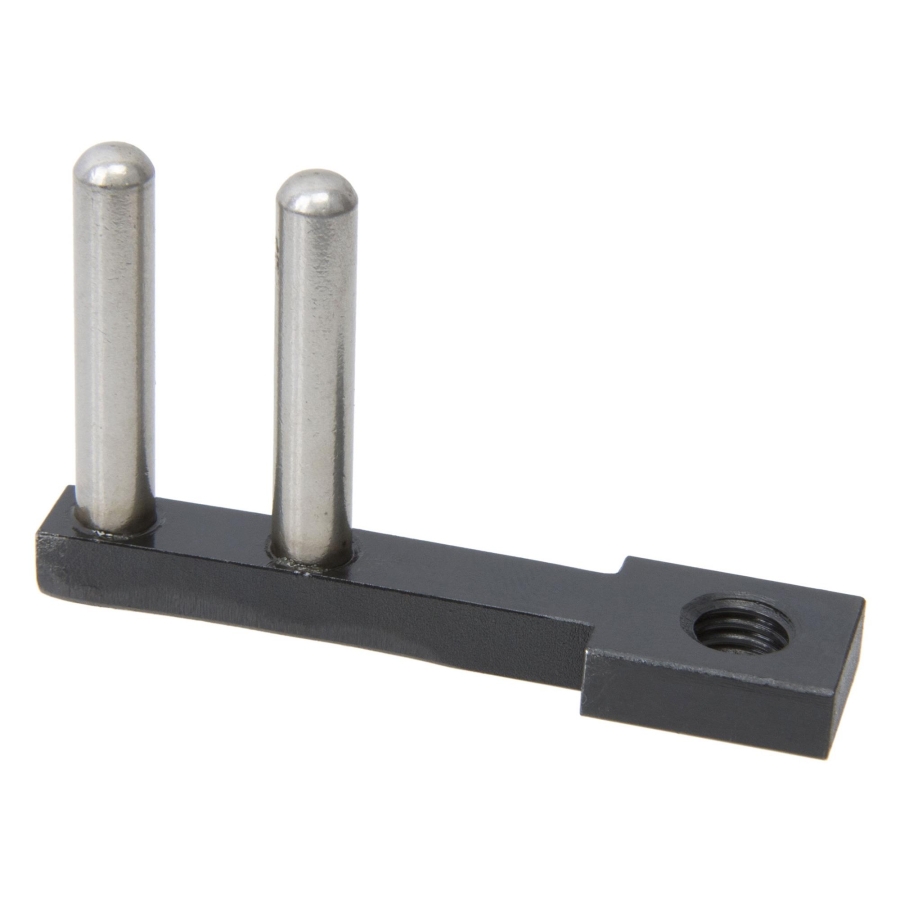

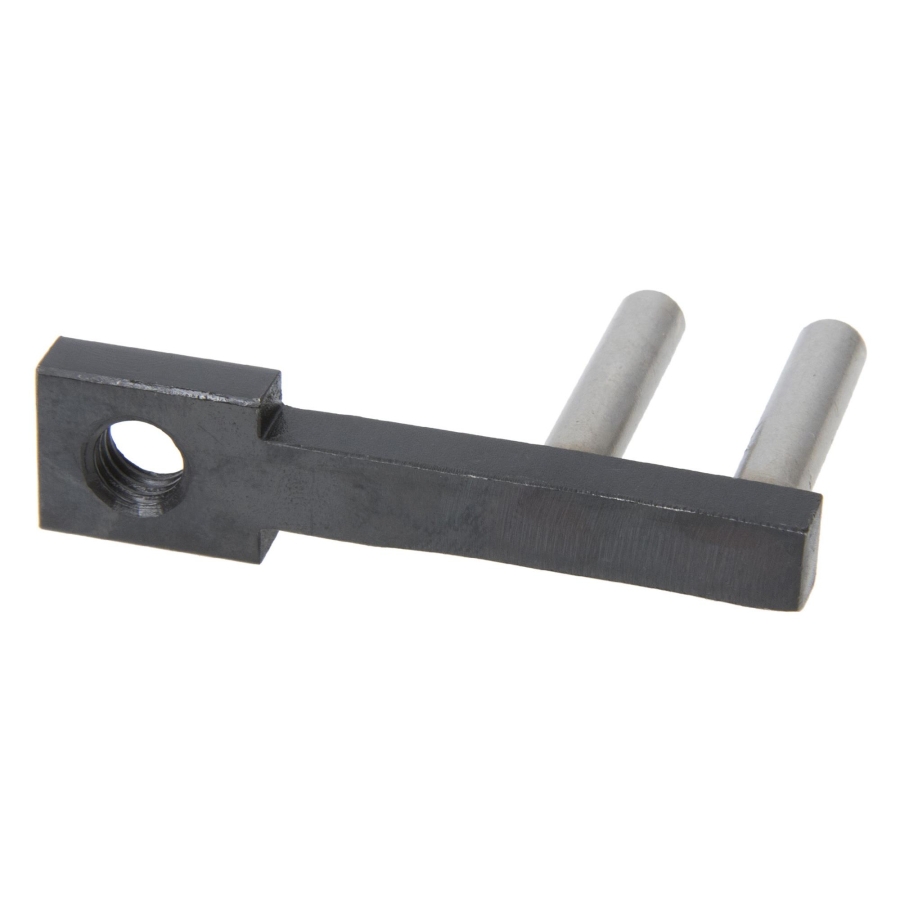

Timing Belt Tensioner Tool Adapter for Alfa Romeo, Fiat (OEM 1860745200)

Adapter used with a timing belt tensioning tool to set correct belt tension. Enables mounting of the tensioning bracket into the designated holes of the tensioner pulley.

Compatibility

Suitable for Alfa Romeo and Fiat engines with codes:

• 280 A1000
• 831 C5 000

Usage Instructions

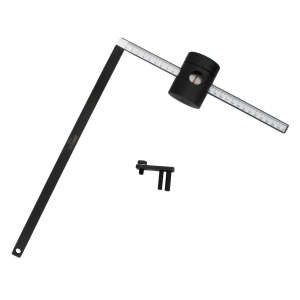

Used together with a tensioning tool equivalent to OEM 1860745100.
Rotate the engine twice with a loose tensioner while applying tension using the tool, then tighten the tensioner pulley.

Adjustment without the proper tool may result in belt noise, incorrect timing, or increased wear.

OEM Reference

• 1860745200

OEM numbers are for reference purposes only and do not imply that the tool is an original manufacturer product.

FIAT DUCATO Panel Van (280_) (01.1982 - 09.1990) 1.9 TD (82 hp, 60 kW)

FIAT DUCATO Panel Van (290_) (03.1989 - 05.1994) 1.9 TD (82 hp, 60 kW)

FIAT DUCATO Panorama (280_) (07.1982 - 08.1990) 1.9 TD (82 hp, 60 kW)

FIAT DUCATO Panorama (290_) (06.1990 - 05.1994) 1.9 TD (82 hp, 60 kW)

FIAT DUCATO Flatbed/Chassis (280_) (07.1982 - 08.1990) 1.9 TD (82 hp, 60 kW) kW)

FIAT DUCATO Flatbed/Chassis (290_) (03.1989 - 05.1994) 1.9 TD (82 hp, 60 kW)

FIAT DUNA Saloon (146_) (07.1991 - 07.1996) 1.4 Turbo (101 hp, 74 kW)

FIAT UNO (146_) (01.1983 - 12.2013) 1.4 (101 hp, 74 kW)

FIAT UNO (146_) (01.1983 - 12.2013) 1.4 Turbo (105 hp, 77 kW)

FIAT UNO (146_) (01.1983 - 12.2013) 1.4 Turbo i.e. (112 HP, 82 kW)

FIAT UNO (146_) (01.1983 - 12.2013) 1.4 Turbo i.e. (118 HP, 87 kW)

LANCIA DELTA I (831_) (09.1979 - 01.1994) 2.0 HF Integrale (831AB.024) (181 HP, 133 kW)
