Engine Timing Tool Set for Volvo 2.0L B4154 / B4204 / D4204

Price: €645.00 1261.51лв.

Code:

121130A
Weight:

6.528 Kgs

Overview:
✔ Professional engine timing tool set for Volvo 2.0L petrol and diesel engines
✔ Suitable for B4154, B4204 and D4204 engine series
✔ Designed for timing belt replacement and engine timing adjustment
✔ Includes tools for crankshaft, camshaft and high-pressure pump positioning
✔ Allows professional servicing of camshaft adjusters and crankshaft pulley components
✔ Suitable for extensive Volvo vehicle applications
✔ Durable workshop-grade construction with precision-manufactured tools

Engine Timing Tool Set for Volvo 2.0L B4154 / B4204 / D4204

Send to friend

Rate this product

This professional special service tool set is designed for timing belt replacement and precise engine timing adjustment on Volvo 2.0L B4154, B4204 petrol and D4204 diesel engines.

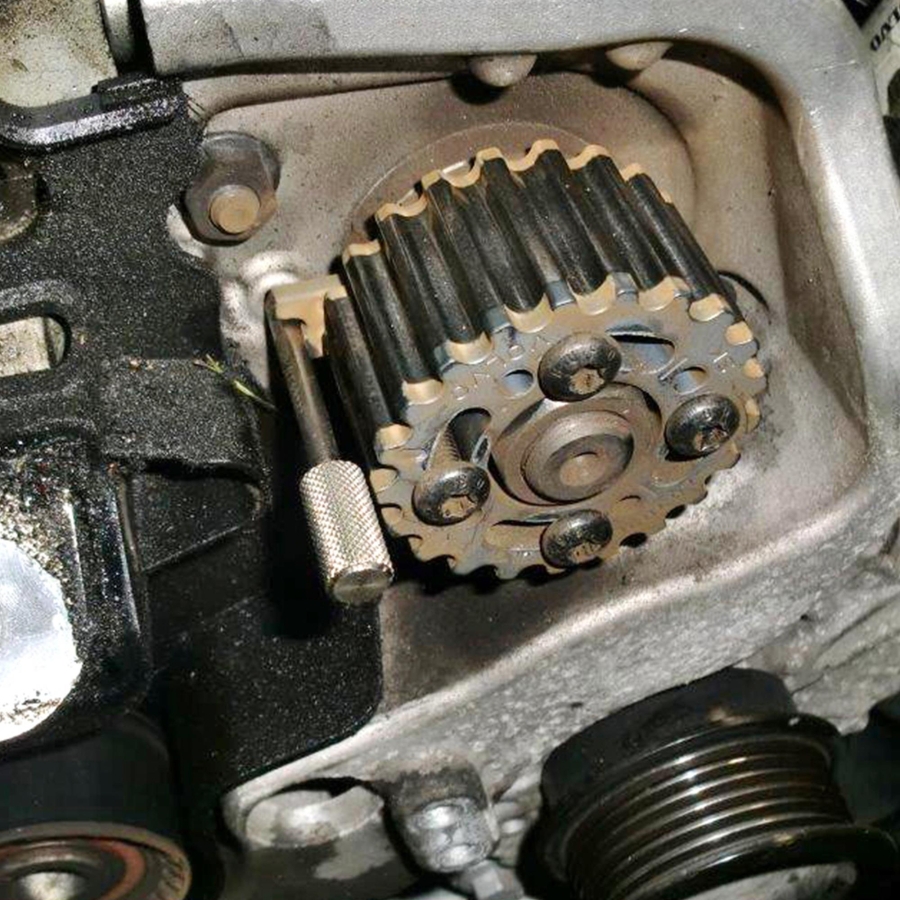

The kit includes a locking pin for positioning the high-pressure fuel pump on diesel engines, as well as special tools for servicing camshaft adjusters, crankshaft pulley components and camshaft oil seals.

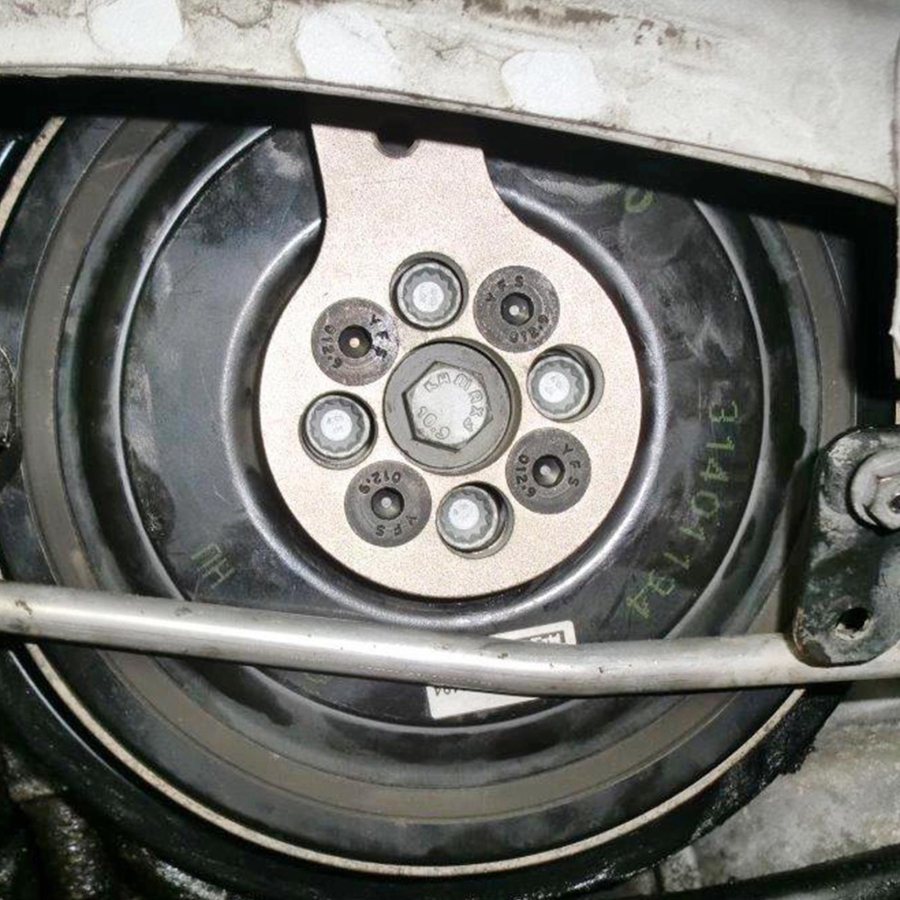

A dedicated counter holder allows controlled loosening and tightening of the crankshaft central bolt, while the included puller enables safe removal of the vibration damper even when heavily seized.

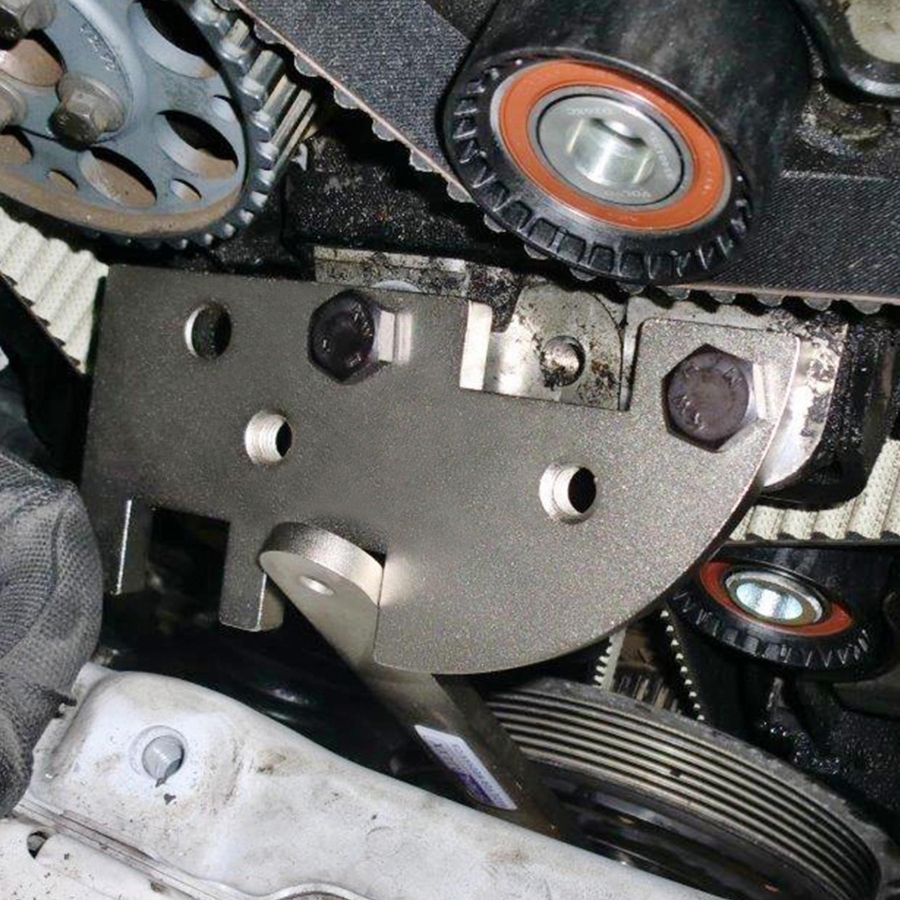

If engine repairs require camshaft removal and installation, the included camshaft setting tools allow precise base positioning inside the cylinder head.

Suitable for professional workshop use and advanced engine repair procedures.

Engine Compatibility

B4154 Engines

B4154T2, B4154T3, B4154T4, B4154T5, B4154T6

B4204 Engines

B4204T5, B4204T9, B4204T10, B4204T11, B4204T12, B4204T14, B4204T15, B4204T17, B4204T18, B4204T19, B4204T20, B4204T21, B4204T23, B4204T26, B4204T27, B4204T28, B4204T29, B4204T31, B4204T32, B4204T33, B4204T34, B4204T35, B4204T36, B4204T37, B4204T38, B4204T39, B4204T41, B4204T43, B4204T44, B4204T45, B4204T46, B4204T47, B4204T48, B4204T49, B4204T50

D4204 Engines

D4204T4, D4204T5, D4204T6, D4204T7, D4204T8, D4204T9, D4204T11, D4204T12, D4204T13, D4204T14, D4204T16, D4204T20, D4204T23

Vehicle Compatibility

Suitable for:

Volvo S60 (2011–2018)
Volvo S60 (2019–)
Volvo S60 Cross Country
Volvo S60L
Volvo S80 (2007–)
Volvo S90 (2017–)
Volvo S90L
Volvo V40 (2013–)
Volvo V40 Cross Country
Volvo V60 (2010–)
Volvo V60 Cross Country (2010–)
Volvo V70 (2008–)
Volvo V90 (2017–)
Volvo V90 Cross Country
Volvo XC40
Volvo XC60 (-2017)
Volvo XC60 (2018–)
Volvo XC70 (2008–)
Volvo XC90 (2016–)
Volvo Polestar

OEM Reference Compatibility

To be used as:

as 9997233
as 9997490
as 9997493
as 9997495
as 9997496
as 9997497

Reference Tightening Torques

D4204T14

Crankshaft pulley (outer bolts): 25 Nm + 90°
Crankshaft pulley (center bolt): 110 Nm + 90°
Timing cover: 10 Nm
Upper timing belt idler pulley: 65 Nm
Lower timing belt idler pulley: lower bolt 24 Nm, upper bolts 30 Nm
Timing belt tensioner pulley: 20 Nm + 45°
High-pressure pump sprocket (outer bolts): 10 Nm
Inner nut: 85 Nm

B4204T11 / B4204T15 / D4204T5

Crankshaft pulley (outer bolts): 35 Nm + 50°
Crankshaft pulley (center bolt): 30 Nm + 180°

Important Information

These engine series use a diamond-coated friction washer beneath the vibration damper and timing belt sprocket.

To prevent self-loosening of the central crankshaft bolt, the bolt should always be renewed during service procedures.

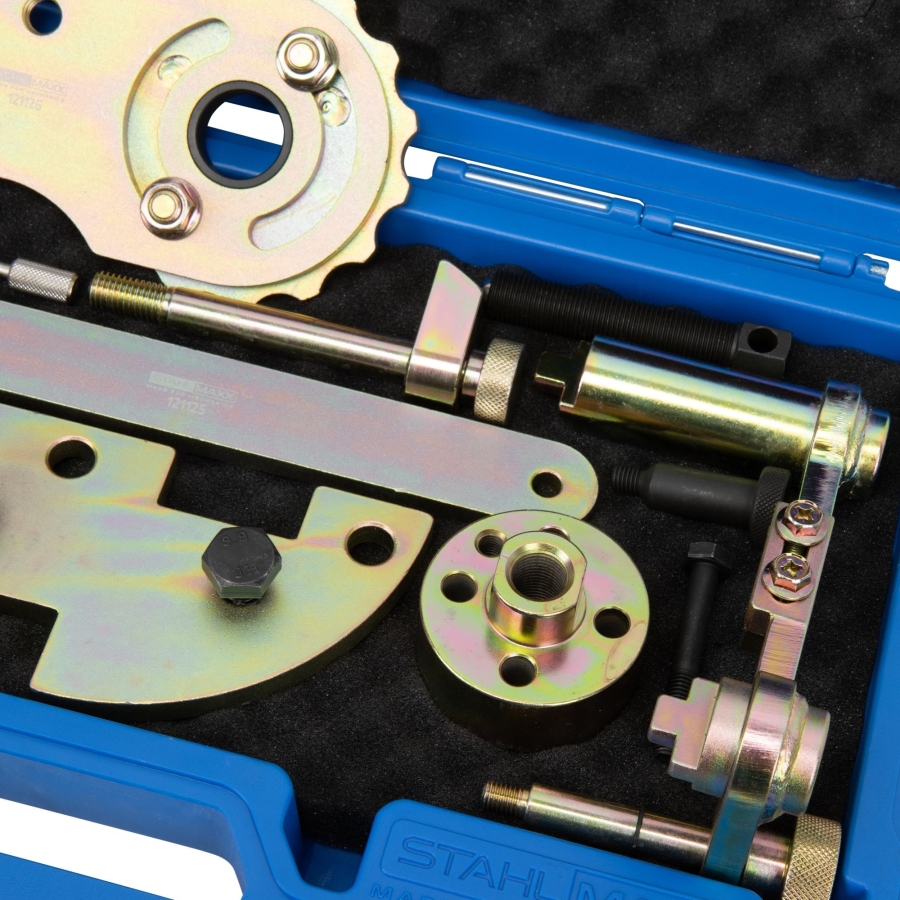

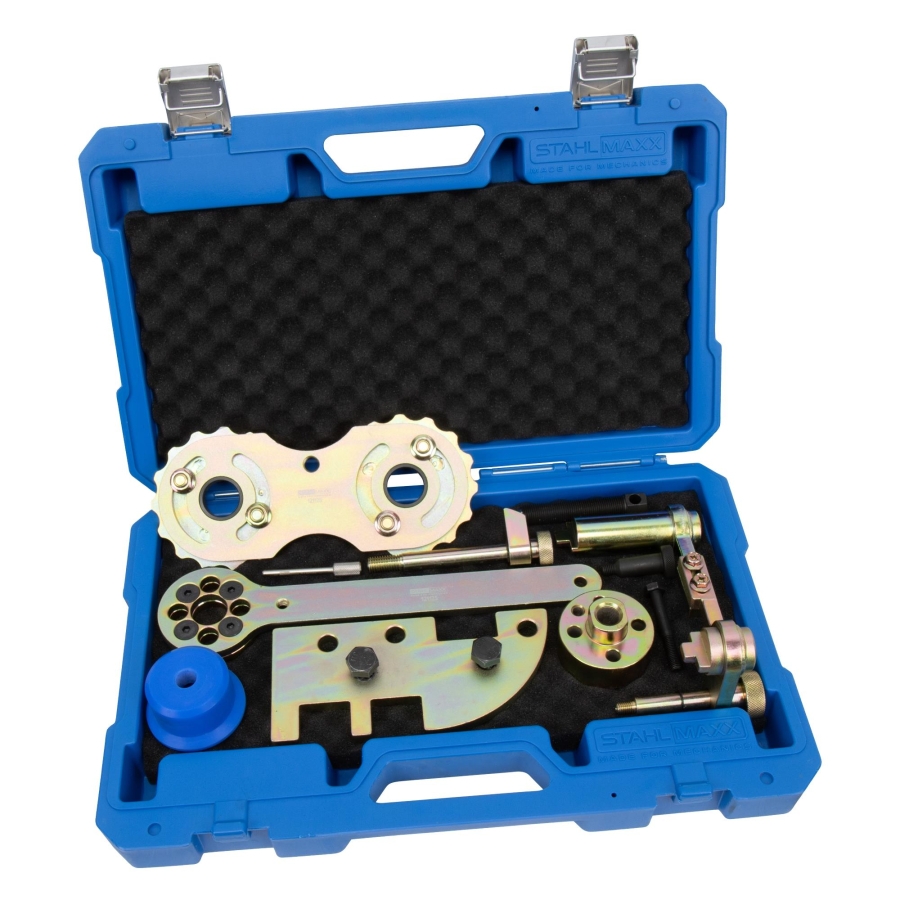

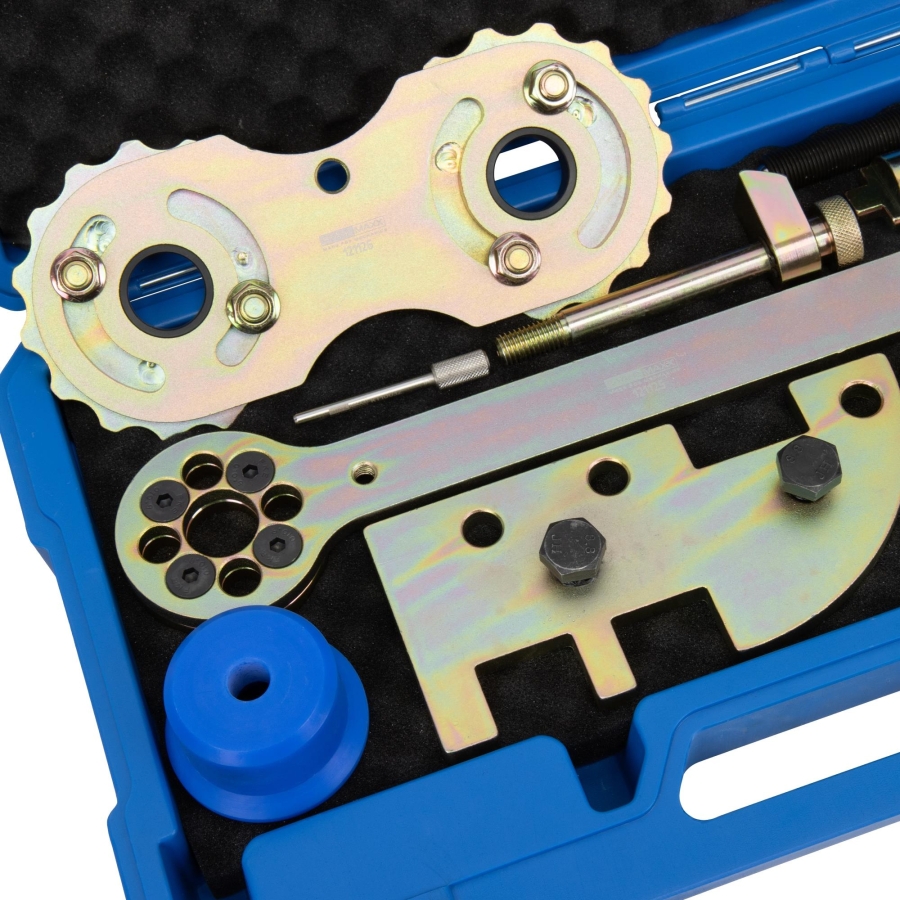

Package Contents

Item No. KT10032 Locking pin for high-pressure pump, to be used as 9997233
Item No. 121125 Counter holder for vibration damper B4154, B4204 and D4204, to be used as Volvo 9997495
Item No. 121126 Camshaft adjuster setting tool, to be used as Volvo 9997497
Item No. 121127 Camshaft alignment tool, to be used as Volvo 9997490
Item No. 121128 Puller for crankshaft pulley B3154, B4154, B4204 and D4204, to be used as Volvo 9997493
Item No. 121129 Front camshaft oil seal installation tool, to be used as Volvo 9997496
Item No. 115269 Storage case 1/3

OEM numbers are provided for comparison purposes only. This is not an original Volvo tool.

With this special tool set, suitable for Volvo 2.0L B4154, B4204 petrol engines and D4204 diesel engines, it is possible to carry out timing belt replacement and timing adjustment professionally and efficiently.

The set includes a locking pin for positioning the high-pressure fuel pump (equivalent to Volvo OEM 9997233) on diesel engines. A counterhold tool (equivalent to Volvo OEM 9997495) allows controlled loosening and tightening of the crankshaft center bolt. Removal of the vibration damper/harmonic balancer can be performed safely, even on seized components, using the puller tool (equivalent to Volvo OEM 9997493).

Repairs on the camshaft phaser / variable valve timing (VVT) unit can also be carried out professionally using the included adjustment tool (equivalent to Volvo OEM 9997497). If repair work requires removal and installation of the camshafts, the camshaft alignment tool (equivalent to Volvo OEM 9997490) can be used to set the basic camshaft position in the cylinder head, while the installation drift/tool (equivalent to Volvo OEM 9997496) is used for fitting the camshaft oil seals.

Note:
Please note that this engine series uses a diamond-coated friction washer/shim located beneath the vibration damper and timing belt pulley. To prevent the crankshaft center bolt from loosening automatically, the bolt should always be replaced during service.

Required tightening torques
(always follow the vehicle manufacturer’s specific instructions and specifications):

D4204T14

Crankshaft pulley (outer bolts): 25 Nm + 90°
Crankshaft pulley (center bolt): 110 Nm + 90°
Timing cover: 10 Nm
Timing belt idler pulley (upper): 65 Nm
Timing belt idler pulley (lower): lower bolt 24 Nm, both upper bolts 30 Nm
Timing belt tensioner pulley: 20 Nm + 45°
High-pressure fuel pump sprocket/pulley: outer bolts 10 Nm, inner nut 85 Nm

B4204T11 / B4204T15 / D4204T5 (differences)

Crankshaft pulley (outer bolts): 35 Nm + 50°
Crankshaft pulley (center bolt): 30 Nm + 180°

VOLVO C30 (533) (10.2006 - 12.2013) 2.0 (136 HP, 100 kW) VOLVO C30 (533) (10.2006 - 12.2013) 2.0 (145 HP, 107 kW) VOLVO C30 (533) (10.2006 - 12.2013) 2.0 D (136 HP, 100 kW) VOLVO C30 (533) (10.2006 - 12.2013) 2.0 FlexFuel (146 HP, 107 kW) VOLVO C70 II Cabriolet (542) (03.2006 - 12.2013) 2.0 D (136 HP, 100 kW) VOLVO S40 I (644) (07.1995 - 12.2004) 1.9 (173 HP, 127 kW) VOLVO S40 I (644) (07.1995 - 12.2004) 2.0 (136 HP, 100 kW) VOLVO S40 I (644) (07.1995 - 12.2004) 2.0 (140 HP, 103 kW) VOLVO S40 I (644) (07.1995 - 12.2004) 2.0 D (136 HP, 100 kW) VOLVO S40 I (644) (07.1995 - 12.2004) 2.0 T (160 HP, 118 kW) VOLVO S40 I (644) (07.1995 - 12.2004) 2.0 T (163 HP, 120 kW) VOLVO S40 I (644) (07.1995 - 12.2004) 2.0 T (165 HP, 121 kW) VOLVO S40 I (644) (07.1995 - 12.2004) 2.0 T4 (200 HP, 147 kW) VOLVO S40 II (544) (01.2004 - 12.2012) 1.9 (173 HP, 127 kW) VOLVO S40 II (544) (01.2004 - 12.2012) 2.0 (146 HP, 107 kW) VOLVO S40 II (544) (01.2004 - 12.2012) 2.0 CDI (133 HP, 98 kW) VOLVO S40 II (544) (01.2004 - 12.2012) 2.0 D (136 HP, 100 kW) VOLVO S40 II (544) (01.2004 - 12.2012) 2.0 D4 (131 HP, 96 kW) VOLVO S40 II (544) (01.2004 - 12.2012) 2.0 F (146 HP, 107 kW) VOLVO S60 II (134) (04.2010 - 12.2018) 1.5 T2 (122 HP, 90 kW) VOLVO S60 II (134) (04.2010 - 12.2018) 1.5 T3 (152 HP, 112 kW) VOLVO S60 II (134) (04.2010 - 12.2018) 2.0 D2 (120 HP, 88 kW) VOLVO S60 II (134) (04.2010 - 12.2018) 2.0 D3 (150 HP, 110 kW) VOLVO S60 II (134) (04.2010 - 12.2018) 2.0 D4 (190 HP, 140 kW) VOLVO S60 II (134) (04.2010 - 12.2018) 2.0 D4 AWD (190 HP, 140 kW) VOLVO S60 II (134) (04.2010 - 12.2018) 2.0 D5 (224 HP, 165 kW) VOLVO S60 II (134) (04.2010 - 12.2018) 2.0 T (203 HP, 149 kW) VOLVO S60 II (134) (04.2010 - 12.2018) 2.0 T3 (152 HP, 112 kW) VOLVO S60 II (134) (04.2010 - 12.2018) 2.0 T4 (190 HP, 140 kW) VOLVO S60 II (134) (04.2010 - 12.2018) 2.0 T5 DRIVe (245 HP, 180 kW) VOLVO S60 II (134) (04.2010 - 12.2018) 2.0 T5 Flexfuel (220 HP, 162 kW) VOLVO S60 II (134) (04.2010 - 12.2018) D4 (181 HP, 133 kW) VOLVO S60 II (134) (04.2010 - 12.2018) D4 Drive-E Polestar (200 HP, 147 kW) VOLVO S60 II (134) (04.2010 - 12.2018) D5 Drive-E Polestar (232 HP, 171 kW) VOLVO S60 II (134) (04.2010 - 12.2018) T5 (240 HP, 177 kW) VOLVO S60 II (134) (04.2010 - 12.2018) T5 (245 HP, 180 kW) VOLVO S60 II (134) (04.2010 - 12.2018) T5 (306 HP, 225 kW) VOLVO S60 II (134) (04.2010 - 12.2018) T5 AWD (245 HP, 180 kW) VOLVO S60 II (134) (04.2010 - 12.2018) T5 Drive-E Polestar AWD (253 HP, 186 kW) VOLVO S60 II (134) (04.2010 - 12.2018) T6 (306 HP, 225 kW) VOLVO S60 II (134) (04.2010 - 12.2018) T6 AWD (306 HP, 225 kW) VOLVO S60 III (224) (02.2019 - ) 2.0 T6 AWD (321 hp, 236 kW) VOLVO S60 III (224) (02.2019 - ) 2.0 T8 Drive-E AWD (405 HP, 298 kW) VOLVO S60 III (224) (02.2019 - ) 2.0 T8 Plug-in Hybrid AWD (407 HP, 299 kW) VOLVO S60 III (224) (02.2019 - ) 2.0 T8 R-Design Hybrid AWD (334 HP, 246 kW) VOLVO S60 III (224) (02.2019 - ) T4 (190 HP, 140 kW) VOLVO S60 III (224) (02.2019 - ) T4 Polestar (210 HP, 155 kW) VOLVO S60 III (224) (02.2019 - ) T5 (250 hp, 184 kW) VOLVO S60 III (224) (02.2019 - ) T5 AWD (249 hp, 183 kW) VOLVO S60 III (224) (02.2019 - ) T5 AWD (250 hp, 184 kW) VOLVO S60 III (224) (02.2019 - ) T5 AWD (254 hp, 187 kW) VOLVO S60 III (224) (02.2019 - ) T5 AWD (261 hp, 192 kW) VOLVO S60 III (224) (02.2019 - ) T5 Polestar (253 hp, 186 kW) VOLVO S60 III (224) (02.2019 - ) T5 Polestar AWD (253 hp, 186 kW) VOLVO S60 III (224) (02.2019 - ) T6 AWD (310 HP, 228 kW) VOLVO S60 III (224) (02.2019 - ) T6 Drive-E Polestar AWD (317 HP, 233 kW) VOLVO S60 III (224) (02.2019 - ) T6 Hybrid Polestar AWD (333 HP, 245 kW) VOLVO S60 III (224) (02.2019 - ) T6 Twin Engine AWD (253 HP, 186 kW) VOLVO S60 III (224) (02.2019 - ) T8 Hybrid Polestar AWD (420 HP, 309 kW) VOLVO S60 III (224) (02.2019 - ) T8 Plug-in Hybrid AWD (320 HP, 235 kW) VOLVO S60 III (224) (02.2019 - ) T8 Twin Engine AWD (303 HP, 223 kW) VOLVO S60 III (224) (02.2019 - ) T8 Twin Engine Polestar AWD (318 HP, 233 kW) VOLVO S80 II (124) (03.2006 - 12.2016) 2.0 (146 HP, 107 kW) VOLVO S80 II (124) (03.2006 - 12.2016) 2.0 Drive-E (245 HP, 180 kW) VOLVO S80 II (124) (03.2006 - 12.2016) 2.0 FlexFuel (146 HP, 107 kW) VOLVO S80 II (124) (03.2006 - 12.2016) 2.0 T (203 HP, 149 kW) VOLVO S80 II (124) (03.2006 - 12.2016) 2.0 T5 (220 HP, 162 kW) VOLVO S80 II (124) (03.2006 - 12.2016) 2.0 TDi (136 HP, 100 kW) VOLVO S80 II (124) (03.2006 - 12.2016) D4 (181 HP, 133 kW) VOLVO S80 II (124) (03.2006 - 12.2016) T5 (241 HP, 177 kW) VOLVO S80 II (124) (03.2006 - 12.2016) T5 (245 HP, 180 kW) VOLVO S90 II (234) (01.2016 - ) 2.0 (249 HP, 183 kW) VOLVO S90 II (234) (01.2016 - ) 2.0 B5 Mild hybrid (250 hp, 184 kW) VOLVO S90 II (234) (01.2016 - ) 2.0 D3 (150 HP, 110 kW) VOLVO S90 II (234) (01.2016 - ) 2.0 D4 (163 HP, 120 kW) VOLVO S90 II (234) (01.2016 - ) 2.0 D4 (190 HP, 140 kW) VOLVO S90 II (234) (01.2016 - ) 2.0 D4 AWD (190 HP, 140 kW) VOLVO S90 II (234) (01.2016 - ) 2.0 D5 AWD (235 HP, 173 kW) VOLVO S90 II (234) (01.2016 - ) 2.0 D5 Polestar AWD (240 HP, 177 kW) VOLVO S90 II (234) (01.2016 - ) 2.0 T4 (190 HP, 140 kW) VOLVO S90 II (234) (01.2016 - ) 2.0 T4 Polestar (210 HP, 155 kW) VOLVO S90 II (234) (01.2016 - ) 2.0 T5 (250 HP, 184 kW) VOLVO S90 II (234) (01.2016 - ) 2.0 T5 (254 HP, 187 kW) VOLVO S90 II (234) (01.2016 - ) 2.0 T5 AWD (254 HP, 187 kW) VOLVO S90 II (234) (01.2016 - ) 2.0 T5 Drive-E Polestar (253 HP, 186 kW) VOLVO S90 II (234) (01.2016 - ) 2.0 T5 Drive-E Polestar (261 HP, 192 kW) VOLVO S90 II (234) (01.2016 - ) 2.0 T6 AWD (310 HP, 228 kW) VOLVO S90 II (234) (01.2016 - ) 2.0 T6 AWD (320 HP, 235 kW) VOLVO S90 II (234) (01.2016 - ) 2.0 T6 Drive-E Polestar AWD (326 HP, 240 kW) VOLVO S90 II (234) (01.2016 - ) 2.0 T8 Hybrid AWD (303 hp, 223 kW) VOLVO S90 II (234) (01.2016 - ) 2.0 T8 Hybrid AWD (405 HP, 298 kW) VOLVO S90 II (234) (01.2016 - ) 2.0 T8 Hybrid Polestar AWD (317 HP, 233 kW) VOLVO S90 II (234) (01.2016 - ) 2.0 T8 Plug-in Hybrid AWD (320 HP, 235 kW) VOLVO S90 II (234) (01.2016 - ) 2.0 T8 Plug-in Hybrid AWD (407 HP, 299 kW) VOLVO S90 II (234) (01.2016 - ) D4 Drive-E Polestar (200 HP, 147 kW) VOLVO S90 II (234) (01.2016 - ) D4 Drive-E Polestar AWD (200 HP, 147 kW) VOLVO S90 II (234) (01.2016 - ) T6 Drive-E Polestar AWD (334 HP, 246 kW) VOLVO S90 II (234) (01.2016 - ) T8 Plug-in Hybrid Polestar AWD (334 HP, 246 kW) VOLVO V40 Estate (645) (07.1995 - 06.2004) 1.9 (173 HP, 127 kW) VOLVO V40 Estate (645) (07.1995 - 06.2004) 2.0 (136 HP, 100 kW) VOLVO V40 station wagon (645) (07.1995 - 06.2004) 2.0 (140 HP, 103 kW) VOLVO V40 Estate (645) (07.1995 - 06.2004) 2.0 (162 HP, 119 kW) VOLVO V40 Estate (645) (07.1995 - 06.2004) 2.0 D (136 HP, 100 kW) VOLVO V40 Estate (645) (07.1995 - 06.2004) 2.0 T (160 HP, 118 kW) VOLVO V40 Estate (645) (07.1995 - 06.2004) 2.0 T (163 HP, 120 kW) VOLVO V40 Estate (645) (07.1995 - 06.2004) 2.0 T (165 hp, 121 kW) VOLVO V40 Estate (645) (07.1995 - 06.2004) 2.0 T4 (200 hp, 147 kW) VOLVO V40 Hatchback (525, 526) (03.2012 - 12.2015) 2.0 T (165 hp, 121 kW) VOLVO V40 Hatchback (525, 526) (03.2012 - 12.2015) D2 (120 hp, 88 kW) VOLVO V40 Hatchback (525, 526) (03.2012 - 12.2015) D3 (150 hp, 110 kW) VOLVO V40 Hatchback (525, 526) (03.2012 - 12.2015) D4 (190 HP, 140 kW) VOLVO V40 Hatchback (525, 526) (03.2012 - 12.2015) D4 Polestar (200 HP, 147 kW) VOLVO V40 Hatchback (525, 526) (03.2012 - 12.2015) T2 (122 HP, 90 kW) VOLVO V40 Hatchback (525, 526) (03.2012 - 12.2015) T3 (122 HP, 90 kW) VOLVO V40 Hatchback (525, 526) (03.2012 - 12.2015) T3 (152 HP, 112 kW) VOLVO V40 Hatchback (525, 526) (03.2012 - 12.2015) T4 (190 hp, 140 kW) VOLVO V40 Hatchback (525, 526) (03.2012 - 12.2015) T4 AWD (190 hp, 140 kW) VOLVO V40 Hatchback (525, 526) (03.2012 - 12.2015) T5 (245 hp, 180 kW) VOLVO V40 Hatchback (525, 526) (03.2012 - 12.2015) T5 AWD (245 hp, 180 kW) VOLVO V40 Hatchback (525, 526) (03.2012 - 12.2015) T5 Drive-E Polestar (253 hp, 186 kW) VOLVO V40 Hatchback (525, 526) (03.2012 - 12.2015) T5 Polestar AWD (253 hp, 186 kW) VOLVO V50 (545) (12.2003 - 12.2012) 2.0 (146 hp, 107 kW) VOLVO V50 (545) (12.2003 - 12.2012) 2.0 CDI (133 hp, 98 kW) VOLVO V50 (545) (12.2003 - 12.2012) 2.0 D (136 hp, 100 kW) kW) VOLVO V50 (545) (12.2003 - 12.2012) 2.0 D4 (131 HP, 96 kW) VOLVO V50 (545) (12.2003 - 12.2012) 2.0 FlexFuel (146 HP, 107 kW) VOLVO V60 I (155, 157) (07.2010 - 12.2018) 1.5 T2 (122 HP, 90 kW) VOLVO V60 I (155, 157) (07.2010 - 12.2018) 2.0 D2 (120 HP, 88 kW) VOLVO V60 I (155, 157) (07.2010 - 12.2018) 2.0 D3 (150 HP, 110 kW) VOLVO V60 I (155, 157) (07.2010 - 12.2018) 2.0 D4 (190 HP, 140 kW) VOLVO V60 I (155, 157) (07.2010 - 12.2018) 2.0 D4 Drive-E Polestar (200 HP, 147 kW) VOLVO V60 I (155, 157) (07.2010 - 12.2018) 2.0 T (203 HP, 149 kW) VOLVO V60 I (155, 157) (07.2010 - 12.2018) 2.0 T4 (190 HP, 140 kW) VOLVO V60 I (155, 157) (07.2010 - 12.2018) 2.0 T5 (220 HP, 162 kW) VOLVO V60 I (155, 157) (07.2010 - 12.2018) D4 (181 HP, 133 kW) VOLVO V60 I (155, 157) (07.2010 - 12.2018) D5 (224 HP, 165 kW) VOLVO V60 I (155, 157) (07.2010 - 12.2018) T3 (152 HP, 112 kW) VOLVO V60 I (155, 157) (07.2010 - 12.2018) T5 (240 HP, 176 kW) VOLVO V60 I (155, 157) (07.2010 - 12.2018) T5 (241 HP, 177 kW) VOLVO V60 I (155, 157) (07.2010 - 12.2018) T5 (245 HP, 180 kW) VOLVO V60 I (155, 157) (07.2010 - 12.2018) T5 AWD (245 HP, 180 kW) VOLVO V60 I (155, 157) (07.2010 - 12.2018) T5 Drive-E Polestar (253 HP, 186 kW) VOLVO V60 I (155, 157) (07.2010 - 12.2018) T5 Drive-E Polestar AWD (253 HP, 186 kW) VOLVO V60 I (155, 157) (07.2010 - 12.2018) T6 (306 HP, 225 kW) VOLVO V60 I (155, 157) (07.2010 - 12.2018) T6 AWD (306 HP, 225 kW) VOLVO V60 II (225, 227) (02.2018 - ) 2.0 T4 (190 HP, 140 kW) VOLVO V60 II (225, 227) (02.2018 - ) 2.0 T6 Drive-E Polestar AWD (326 HP, 240 kW) VOLVO V60 II (225, 227) (02.2018 - ) D3 (150 HP, 110 kW) VOLVO V60 II (225, 227) (02.2018 - ) D3 AWD (150 HP, 110 kW) VOLVO V60 II (225, 227) (02.2018 - ) D4 (190 HP, 140 kW) VOLVO V60 II (225, 227) (02.2018 - ) D4 AWD (190 HP, 140 kW) VOLVO V60 II (225, 227) (02.2018 - ) D4 Polestar (200 HP, 147 kW) VOLVO V60 II (225, 227) (02.2018 - ) D4 Polestar AWD (200 HP, 147 kW) VOLVO V60 II (225, 227) (02.2018 - ) T4 Polestar (210 hp, 155 kW) VOLVO V60 II (225, 227) (02.2018 - ) T5 (250 HP, 184 kW) VOLVO V60 II (225, 227) (02.2018 - ) T5 (254 HP, 187 kW) VOLVO V60 II (225, 227) (02.2018 - ) T5 AWD (250 HP, 184 kW) VOLVO V60 II (225, 227) (02.2018 - ) T5 AWD (261 HP, 192 kW) VOLVO V60 II (225, 227) (02.2018 - ) T5 Polestar (253 HP, 186 kW) VOLVO V60 II (225, 227) (02.2018 - ) T5 Polestar AWD (253 HP, 186 kW) VOLVO V60 II (225, 227) (02.2018 - ) T6 AWD (310 HP, 228 kW) VOLVO V60 II (225, 227) (02.2018 - ) T6 Plug-in Hybrid AWD (253 HP, 186 kW) VOLVO V60 II (225, 227) (02.2018 - ) T8 Hybrid Polestar AWD (420 HP, 309 kW) VOLVO V60 II (225, 227) (02.2018 - ) T8 Plug-in Hybrid AWD (303 HP, 223 kW) VOLVO V60 II (225, 227) (02.2018 - ) T8 Plug-in Hybrid Polestar AWD (318 HP, 233 kW) VOLVO V60 II (225, 227) (02.2018 - ) T8 Plug-in Hybrid Polestar AWD (334 HP, 246 kW) VOLVO V70 III (135) (04.2007 - 04.2016) 2.0 (145 HP, 107 kW) VOLVO V70 III (135) (04.2007 - 04.2016) 2.0 D (136 HP, 100 kW) VOLVO V70 III (135) (04.2007 - 04.2016) 2.0 FlexiFuel (146 HP, 107 kW) VOLVO V70 III (135) (04.2007 - 04.2016) 2.0 T (203 HP, 149 kW) VOLVO V70 III (135) (04.2007 - 04.2016) D2 (120 HP, 88 kW) VOLVO V70 III (135) (04.2007 - 04.2016) D3 (150 HP, 110 kW) VOLVO V70 III (135) (04.2007 - 04.2016) D4 (181 HP, 133 kW) VOLVO V70 III (135) (04.2007 - 04.2016) T4 (190 HP, 140 kW) VOLVO V70 III (135) (04.2007 - 04.2016) T5 (241 HP, 177 kW) VOLVO V70 III (135) (04.2007 - 04.2016) T5 (245 HP, 180 kW) VOLVO V90 II Estate (235, 236) (03.2016 - 07.2020) 2.0 D3 (150 HP, 110 kW) VOLVO V90 II Estate (235, 236) (03.2016 - 07.2020) 2.0 D3 AWD (150 HP, 110 kW) VOLVO V90 II Estate (235, 236) (03.2016 - 07.2020) 2.0 D4 (163 HP, 120 kW) VOLVO V90 II Estate (235, 236) (03.2016 - 07.2020) 2.0 D4 (190 HP, 140 kW) VOLVO V90 II Estate (235, 236) (03.2016 - 07.2020) 2.0 D4 AWD (163 HP, 120 kW) VOLVO V90 II Estate (235, 236) (03.2016 - 07.2020) 2.0 D4 AWD (190 HP, 140 kW) VOLVO V90 II Estate (235, 236) (03.2016 - 07.2020) 2.0 D4 Polestar (200 HP, 147 kW) VOLVO V90 II Estate (235, 236) (03.2016 - 07.2020) 2.0 D5 AWD (235 HP, 173 kW) VOLVO V90 II Estate (235, 236) (03.2016 - 07.2020) 2.0 Hybrid AWD (320 HP, 235 kW) VOLVO V90 II Estate (235, 236) (03.2016 - 07.2020) 2.0 Polestar AWD (200 HP, 147 kW) VOLVO V90 II Estate (235, 236) (03.2016 - 07.2020) 2.0 Polestar AWD (239 HP, 176 kW) VOLVO V90 II Estate (235, 236) (03.2016 - 07.2020) 2.0 T4 (190 HP, 140 kW) VOLVO V90 II Estate (235, 236) (03.2016 - 07.2020) 2.0 T4 AWD (190 HP, 140 kW) VOLVO V90 II Estate (235, 236) (03.2016 - 07.2020) 2.0 T4 Polestar (210 hp, 155 kW) VOLVO V90 II Estate (235, 236) (03.2016 - 07.2020) 2.0 T5 (250 HP, 184 kW) VOLVO V90 II Estate (235, 236) (03.2016 - 07.2020) 2.0 T5 (254 HP, 187 kW) VOLVO V90 II Estate (235, 236) (03.2016 - 07.2020) 2.0 T5 AWD (249 HP, 183 kW) VOLVO V90 II Estate (235, 236) (03.2016 - 07.2020) 2.0 T5 AWD (250 HP, 184 kW) VOLVO V90 II station wagon (235, 236) (03.2016 - 07.2020) 2.0 T5 AWD (254 HP, 187 kW) VOLVO V90 II Estate (235, 236) (03.2016 - 07.2020) 2.0 T5 Polestar (253 HP, 186 kW) VOLVO V90 II Estate (235, 236) (03.2016 - 07.2020) 2.0 T5 Polestar AWD (253 HP, 186 kW) VOLVO V90 II Estate (235, 236) (03.2016 - 07.2020) 2.0 T6 AWD (310 HP, 228 kW) VOLVO V90 II Estate (235, 236) (03.2016 - 07.2020) 2.0 T6 AWD (320 HP, 235 kW) VOLVO V90 II Estate (235, 236) (03.2016 - 07.2020) 2.0 T6 Plug-in Hybrid AWD (340 HP, 250 kW) VOLVO V90 II Estate (235, 236) (03.2016 - 07.2020) 2.0 T6 Polestar AWD (326 HP, 240 kW) VOLVO V90 II Estate (235, 236) (03.2016 - 07.2020) 2.0 T6 Polestar AWD (334 HP, 246 kW) VOLVO V90 II Estate (235, 236) (03.2016 - 07.2020) 2.0 T8 Hybrid AWD (303 hp, 223 kW) VOLVO V90 II Estate (235, 236) (03.2016 - 07.2020) 2.0 T8 Plug-in Hybrid Polestar AWD (317 HP, 233 kW) VOLVO V90 II Estate (235, 236) (03.2016 - 07.2020) 2.0 T8 Plug-in Hybrid AWD (390 HP, 287 kW) VOLVO V90 II Estate (235, 236) (03.2016 - 07.2020) T4 Polestar (209 HP, 154 kW) VOLVO V90 II Estate (235, 236) (03.2016 - 07.2020) T5 Drive-E Polestar AWD (261 HP, 192 kW) VOLVO V90 II Estate (235, 236) (03.2016 - 07.2020) T8 Plug-in Hybrid Polestar AWD (334 HP, 246 kW) VOLVO XC40 (536) (10.2017 - 12.2019) 2.0 D3 (150 HP, 110 kW) VOLVO XC40 (536) (10.2017 - 12.2019) 2.0 D3 AWD (150 HP, 110 kW) VOLVO XC40 (536) (10.2017 - 12.2019) 2.0 D4 AWD (190 HP, 140 kW) VOLVO XC40 (536) (10.2017 - 12.2019) 2.0 T4 (190 HP, 140 kW) VOLVO XC40 (536) (10.2017 - 12.2019) 2.0 T4 AWD (190 HP, 140 kW) VOLVO XC40 (536) (10.2017 - 12.2019) D4 Polestar (200 HP, 147 kW) VOLVO XC40 (536) (10.2017 - 12.2019) D4 Polestar AWD (200 HP, 147 kW) VOLVO XC40 (536) (10.2017 - 12.2019) T5 AWD (247 HP, 182 kW) VOLVO XC40 (536) (10.2017 - 12.2019) T5 AWD (250 HP, 184 kW) VOLVO XC40 (536) (10.2017 - 12.2019) T5 AWD (252 HP, 185 kW) VOLVO XC40 (536) (10.2017 - 12.2019) T5 Polestar AWD (249 HP, 183 kW) VOLVO XC60 I SUV (156) (05.2008 - 12.2017) 2.0 T (203 HP, 149 kW) VOLVO XC60 I SUV (156) (05.2008 - 12.2017) 2.0 T5 Flexfuel (220 HP, 162 kW) VOLVO XC60 I SUV (156) (05.2008 - 12.2017) D3 (150 HP, 110 kW) VOLVO XC60 I SUV (156) (05.2008 - 12.2017) D4 (181 HP, 133 kW) VOLVO XC60 I SUV (156) (05.2008 - 12.2017) D4 (190 hp, 140 kW) VOLVO XC60 I SUV (156) (05.2008 - 12.2017) T5 (241 HP, 177 kW) VOLVO XC60 I SUV (156) (05.2008 - 12.2017) T5 (245 HP, 180 kW) VOLVO XC60 I SUV (156) (05.2008 - 12.2017) T5 AWD (245 HP, 180 kW) VOLVO XC60 I SUV (156) (05.2008 - 12.2017) T6 (306 HP, 225 kW) VOLVO XC60 I SUV (156) (05.2008 - 12.2017) T6 AWD (306 HP, 225 kW) VOLVO XC60 II (246) (03.2017 - 12.2018) 2.0 B4 mild hybrid (253 hp, 186 kW) VOLVO VOLVO XC60 II (246) (03.2017 - 12.2018) 2.0 B5 mild hybrid (250 hp, 184 kW) VOLVO XC60 II (246) (03.2017 - 12.2018) 2.0 B5 mild hybrid AWD (250 HP, 184 kW) VOLVO XC60 II (246) (03.2017 - 12.2018) 2.0 D3 (150 HP, 110 kW) VOLVO XC60 II (246) (03.2017 - 12.2018) 2.0 D4 (163 HP, 120 kW) VOLVO XC60 II (246) (03.2017 - 12.2018) 2.0 D4 (190 HP, 140 kW) VOLVO XC60 II (246) (03.2017 - 12.2018) 2.0 D4 AWD (190 HP, 140 kW) VOLVO XC60 II (246) (03.2017 - 12.2018) 2.0 D4 Polestar (200 HP, 147 kW) VOLVO XC60 II (246) (03.2017 - 12.2018) 2.0 D4 Polestar AWD (200 HP, 147 kW) VOLVO XC60 II (246) (03.2017 - 12.2018) 2.0 D5 AWD (235 HP, 173 kW) VOLVO XC60 II (246) (03.2017 - 12.2018) 2.0 D5 Polestar AWD (240 HP, 177 kW) VOLVO XC60 II (246) (03.2017 - 12.2018) 2.0 T4 (190 HP, 140 kW) VOLVO XC60 II (246) (03.2017 - 12.2018) 2.0 T5 (250 hp, 184 kW) VOLVO XC60 II (246) (03.2017 - 12.2018) 2.0 T5 (254 hp, 187 kW) VOLVO XC60 II (246) (03.2017 - 12.2018) 2.0 T5 AWD (249 hp, 183 kW) VOLVO XC60 II (246) (03.2017 - 12.2018) 2.0 T5 AWD (250 hp, 184 kW) VOLVO XC60 II (246) (03.2017 - 12.2018) 2.0 T5 AWD (254 HP, 187 kW) VOLVO XC60 II (246) (03.2017 - 12.2018) 2.0 T5 Polestar AWD (261 HP, 192 kW) VOLVO XC60 II (246) (03.2017 - 12.2018) 2.0 T6 AWD (310 HP, 228 kW) VOLVO XC60 II (246) (03.2017 - 12.2018) 2.0 T6 AWD (320 HP, 235 kW) VOLVO XC60 II (246) (03.2017 - 12.2018) 2.0 T6 Polestar AWD (334 HP, 246 kW) VOLVO XC60 II (246) (03.2017 - 12.2018) 2.0 T8 Drive-E AWD (405 HP, 298 kW) VOLVO XC60 II (246) (03.2017 - 12.2018) 2.0 T8 Hybrid AWD (303 HP, 223 kW) VOLVO XC60 II (246) (03.2017 - 12.2018) 2.0 T8 Hybrid AWD (320 HP, 235 kW) VOLVO XC60 II (246) (03.2017 - 12.2018) 2.0 T8 Hybrid AWD (334 HP, 246 kW) VOLVO XC60 II (246) (03.2017 - 12.2018) 2.0 T8 Hybrid Polestar AWD (317 HP, 233 kW) VOLVO XC60 II (246) (03.2017 - 12.2018) T4 Polestar (210 HP, 155 kW) VOLVO XC60 II (246) (03.2017 - 12.2018) T5 Polestar (253 HP, 186 kW) VOLVO XC60 II (246) (03.2017 - 12.2018) T5 Polestar AWD (253 HP, 186 kW) VOLVO XC60 II (246) (03.2017 - 12.2018) T6 Polestar AWD (326 HP, 240 kW) VOLVO XC60 II (246) (03.2017 - 12.2018) T8 Hybrid Polestar AWD (420 HP, 309 kW) VOLVO XC70 II (136) (04.2007 - 12.2016) D4 (181 HP, 133 kW) VOLVO XC70 II (136) (04.2007 - 12.2016) T5 (245 HP, 180 kW) VOLVO XC90 II (256) (09.2014 - 12.2019) 2.0 B5 mild hybrid AWD (250 HP, 184 kW) VOLVO XC90 II (256) (09.2014 - 12.2019) 2.0 D5 Polestar AWD (240 HP, 177 kW) VOLVO XC90 II (256) (09.2014 - 12.2019) 2.0 T5 AWD (249 HP, 183 kW) VOLVO XC90 II (256) (09.2014 - 12.2019) 2.0 T5 AWD (250 HP, 184 kW) VOLVO XC90 II (256) (09.2014 - 12.2019) 2.0 T6 AWD (310 HP, 228 kW) VOLVO XC90 II (256) (09.2014 - 12.2019) 2.0 T8 Hybrid AWD (303 HP, 223 kW) VOLVO XC90 II (256) (09.2014 - 12.2019) 2.0 T8 Hybrid Polestar AWD (317 HP, 233 kW) VOLVO XC90 II (256) (09.2014 - 12.2019) D4 (190 HP, 140 kW) VOLVO XC90 II (256) (09.2014 - 12.2019) D4 AWD (190 HP, 140 kW) VOLVO XC90 II (256) (09.2014 - 12.2019) D5 AWD (224 HP, 165 kW) VOLVO XC90 II (256) (09.2014 - 12.2019) D5 AWD (235 HP, 173 kW) VOLVO XC90 II (256) (09.2014 - 12.2019) D5 DRIVe Polestar AWD (239 HP, 176 kW) VOLVO XC90 II (256) (09.2014 - 12.2019) T5 (254 HP, 187 kW) VOLVO XC90 II (256) (09.2014 - 12.2019) T5 AWD (254 HP, 187 kW) VOLVO XC90 II (256) (09.2014 - 12.2019) T5 Drive-E Polestar AWD (239 HP, 176 kW) VOLVO XC90 II (256) (09.2014 - 12.2019) T5 Drive-E Polestar AWD (261 HP, 192 kW) VOLVO XC90 II (256) (09.2014 - 12.2019) T5 Polestar AWD (253 HP, 186 kW) VOLVO XC90 II (256) (09.2014 - 12.2019) T6 AWD (320 HP, 235 kW) VOLVO XC90 II (256) (09.2014 - 12.2019) T6 Polestar AWD (326 HP, 240 kW) VOLVO XC90 II (256) (09.2014 - 12.2019) T6 Polestar AWD (334 HP, 246 kW) VOLVO XC90 II (256) (09.2014 - 12.2019) T8 Hybrid AWD (405 HP, 298 kW) VOLVO XC90 II (256) (09.2014 - 12.2019) T8 Plug-in Hybrid Polestar AWD (334 HP, 246 kW) VOLVO XC90 II (256) (09.2014 - 12.2019) T8 Twin Engine AWD (390 HP, 287 kW)
