Universal Compressed-Air Valve Spring Compressor with Swivelling Frame
-
Code:50008
-
Weight:3.200 Kgs
Overview:
✔ Compresses valve springs using a 12.7 mm threaded spindle instead of lever force
✔ Suitable for cylinder heads installed on or removed from the engine
✔ Compressed air holds the valve securely against its seat
✔ Adjustable mounting width: 60–495 mm
✔ Support feet swivel and lock in seven positions for inclined valves
✔ Suitable for SOHC and DOHC petrol and diesel engines
✔ Includes spark-plug hose adapter for M14 x 1.25 and M18 x 1.5 threads
✔ Recommended compressed-air pressure: 6–8 bar
This professional valve spring compressor is designed for replacing valve stem seals, valve springs, spring retainers and valve keepers on installed or removed cylinder heads.

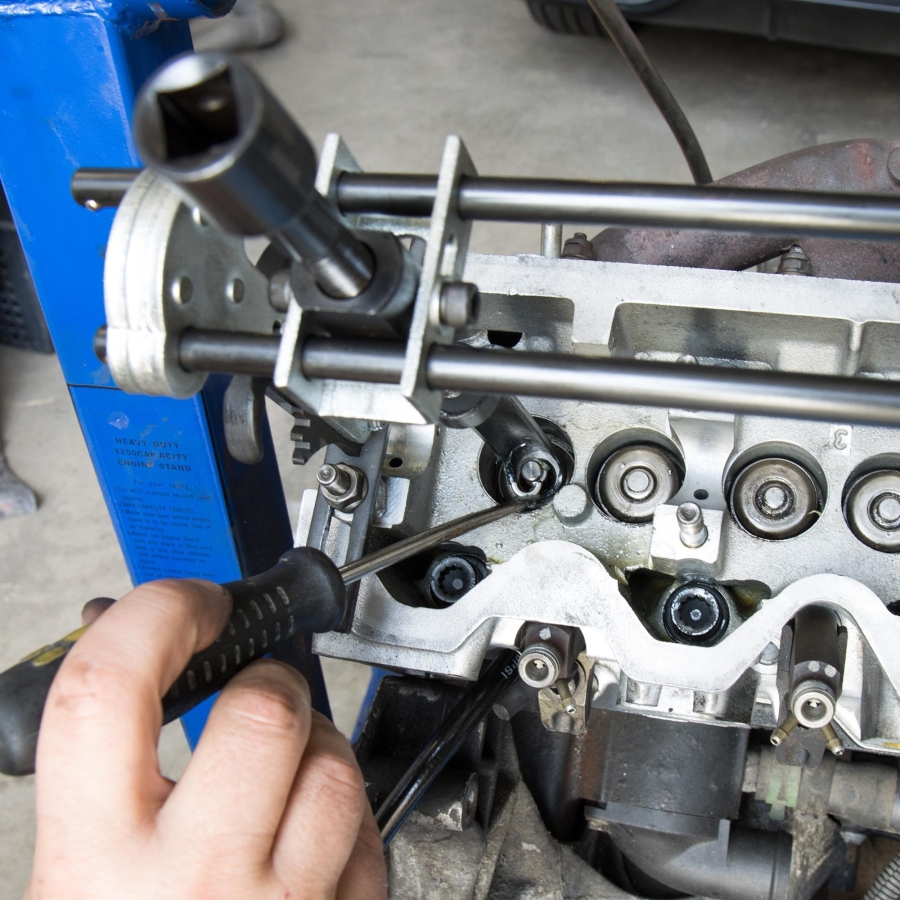

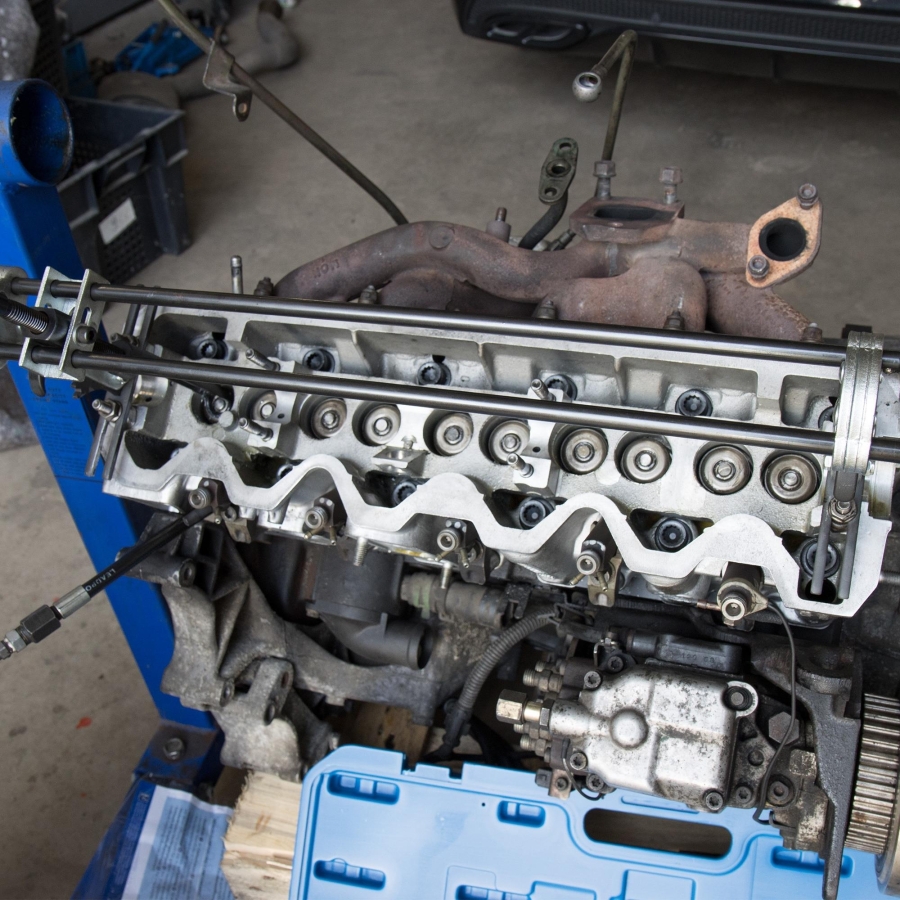

When working with the cylinder head installed, compressed air is supplied to the cylinder through the spark-plug or glow-plug opening. The air pressure holds the valve securely against its seat while the spring is compressed.
Threaded-Spindle Operation

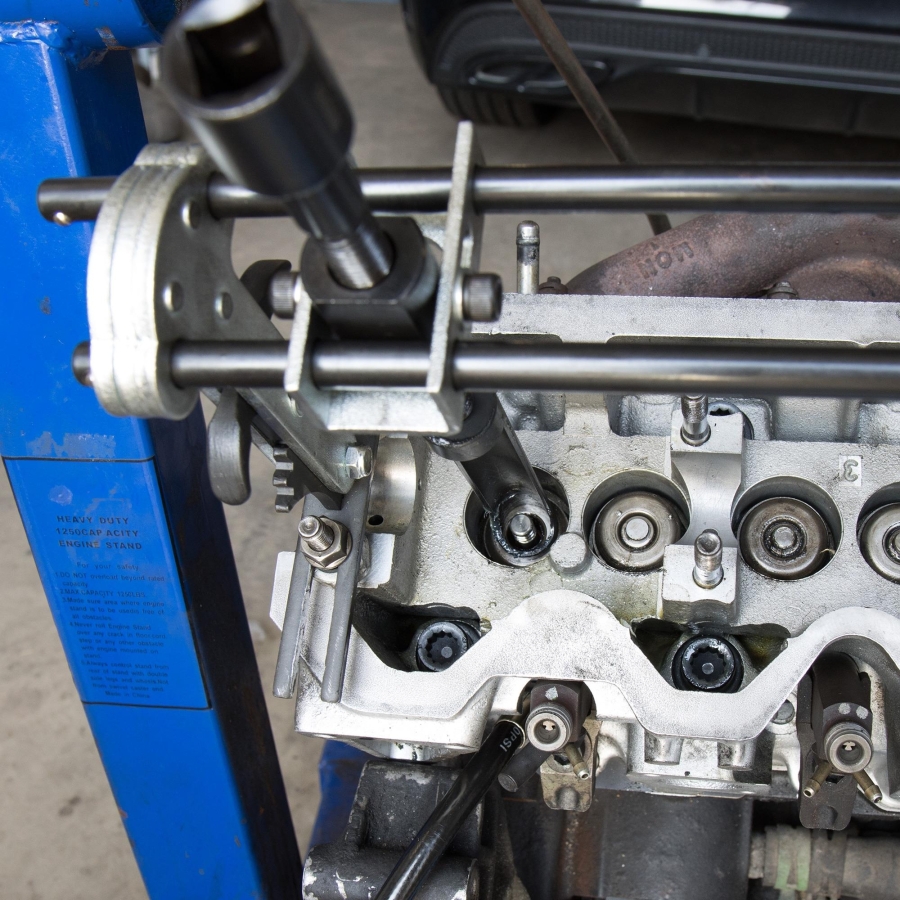

Unlike conventional lever-operated compressors, the valve spring is compressed precisely using a 12.7 mm threaded spindle. This provides controlled movement and keeps both hands free during the removal or installation of the valve keepers.

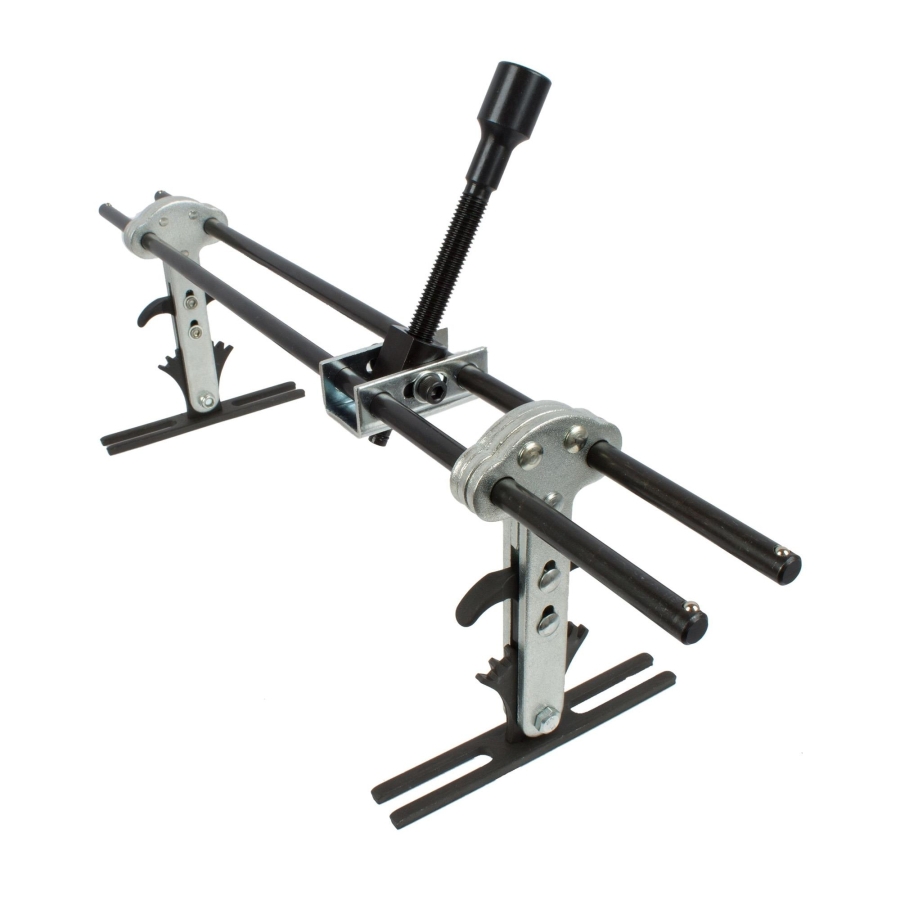

Adjustable Mounting Frame
- Adjustable mounting width: 60–495 mm
- Suitable for short and long cylinder heads
- Support feet swivel and lock in seven positions
- Suitable for strongly inclined valves
- Double round-bar guide
- Robust steel construction
Adapter Connections
The included spark-plug hose adapter covers the following threads:
- M14 x 1.25
- M18 x 1.5
Optional threaded adapters can reduce the connection to:
- M12 x 1.25
- M10 x 1
The reduction adapters are not included.
Engine Compatibility
- SOHC and DOHC engines
- Petrol engines using the spark-plug opening
- Diesel engines using the glow-plug opening and a suitable optional adapter
A suitable glow-plug adapter is required for diesel engines and is not included.
Technical Specifications
- Operating principle: Threaded-spindle valve spring compressor with compressed-air valve support
- Threaded spindle diameter: 12.7 mm
- Adjustable mounting width: 60–495 mm
- Locking positions: 7
- Recommended air pressure: 6–8 bar
- Included thread connections: M14 x 1.25 and M18 x 1.5
- Construction: Steel with double round-bar guide

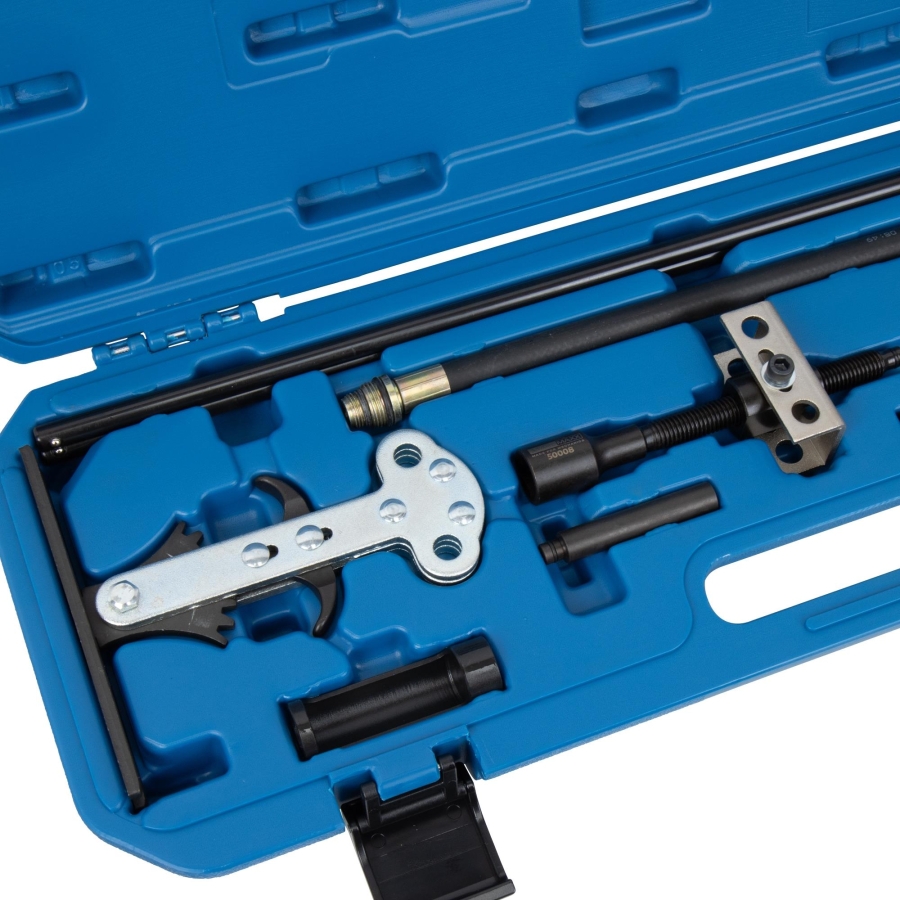

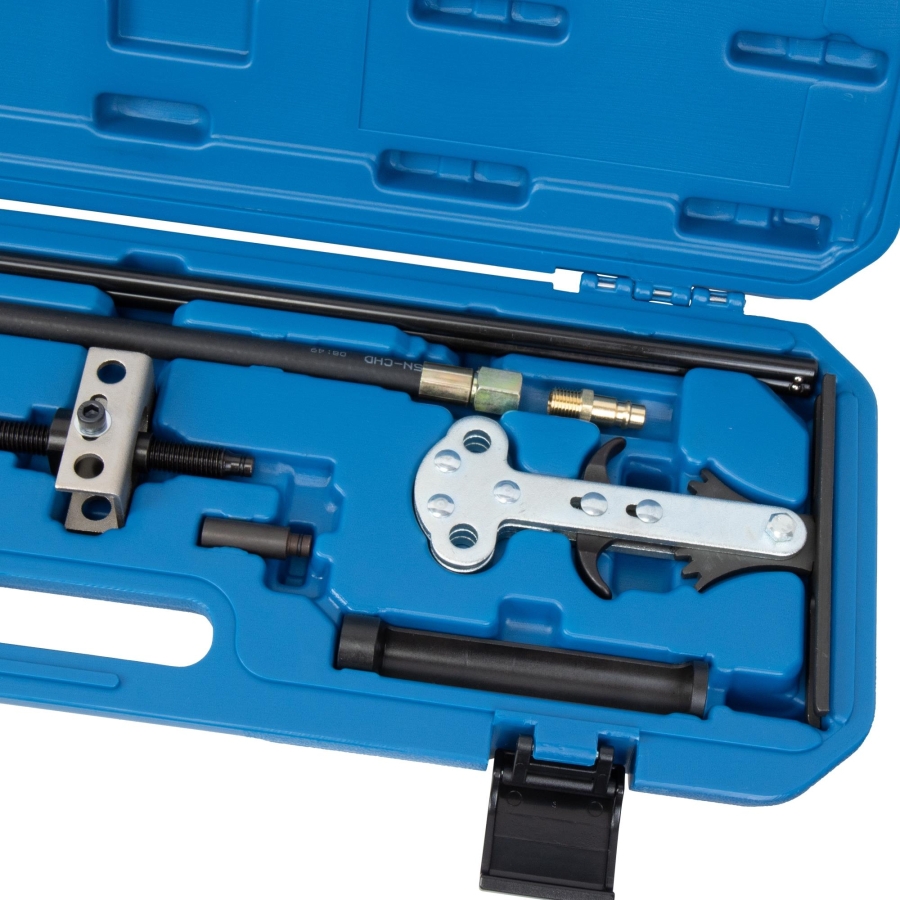

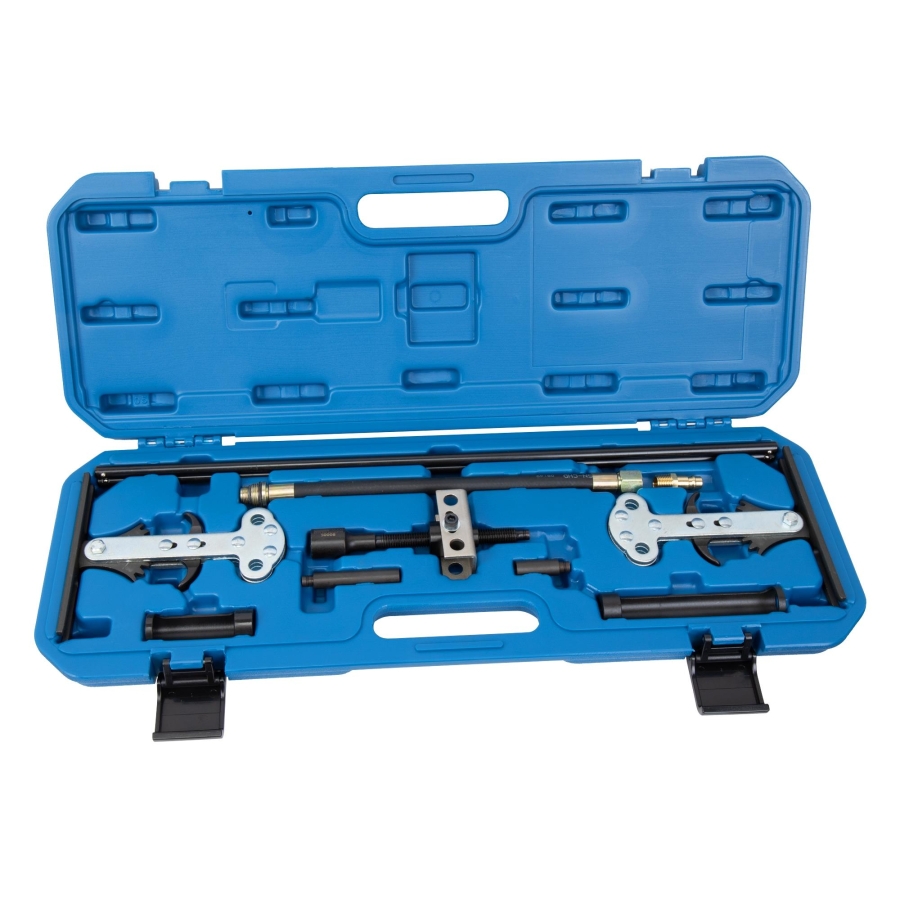

Scope of Delivery
- 1 mounting frame, lockable in seven positions

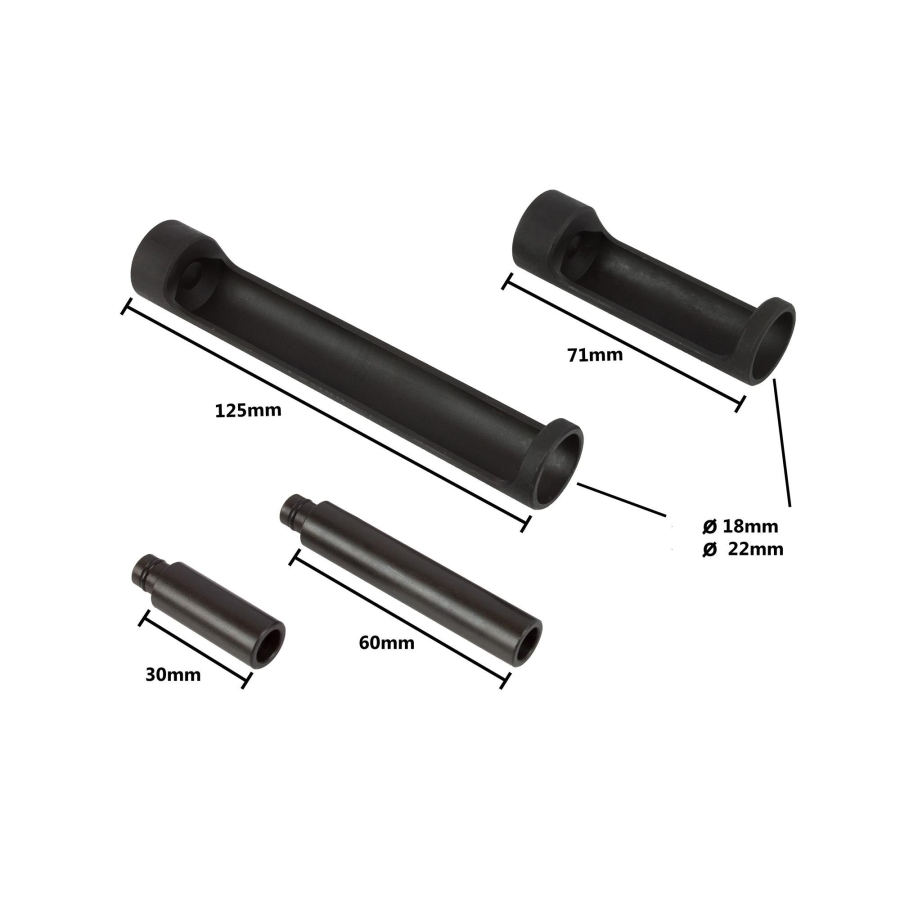

- 2 valve spring pressure pieces:
- Lengths: 71 mm and 125 mm
- Inside diameter: 18 mm
- Outside diameter: 22 mm
- 2 pressure-piece extensions:
- Lengths: 30 mm and 60 mm
- Diameter: 12 mm

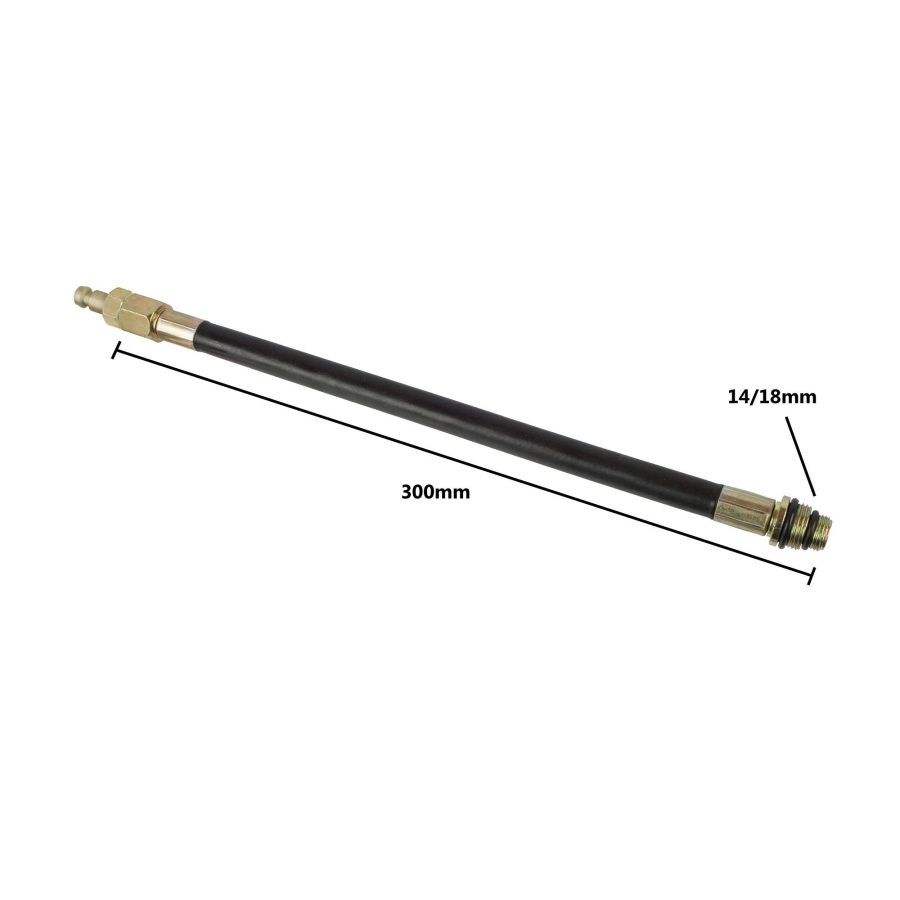

- 1 compressed-air hose for spark-plug threads:
- Length: 300 mm
- Threads: M14 x 1.25 and M18 x 1.5
