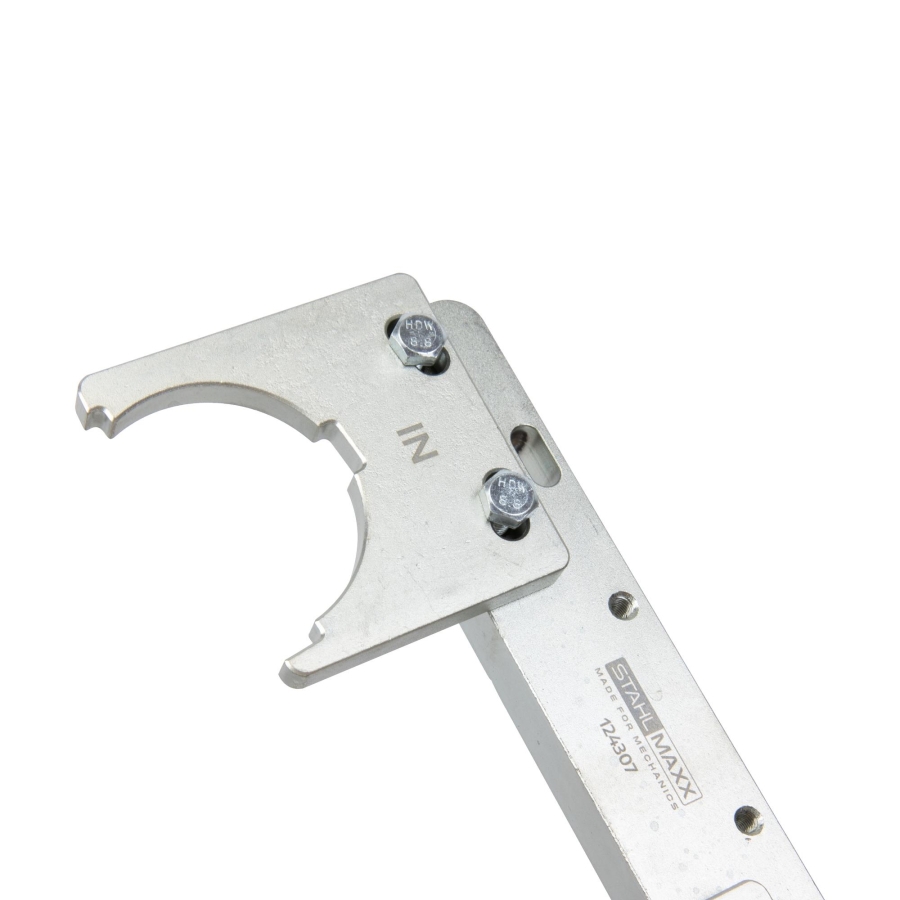

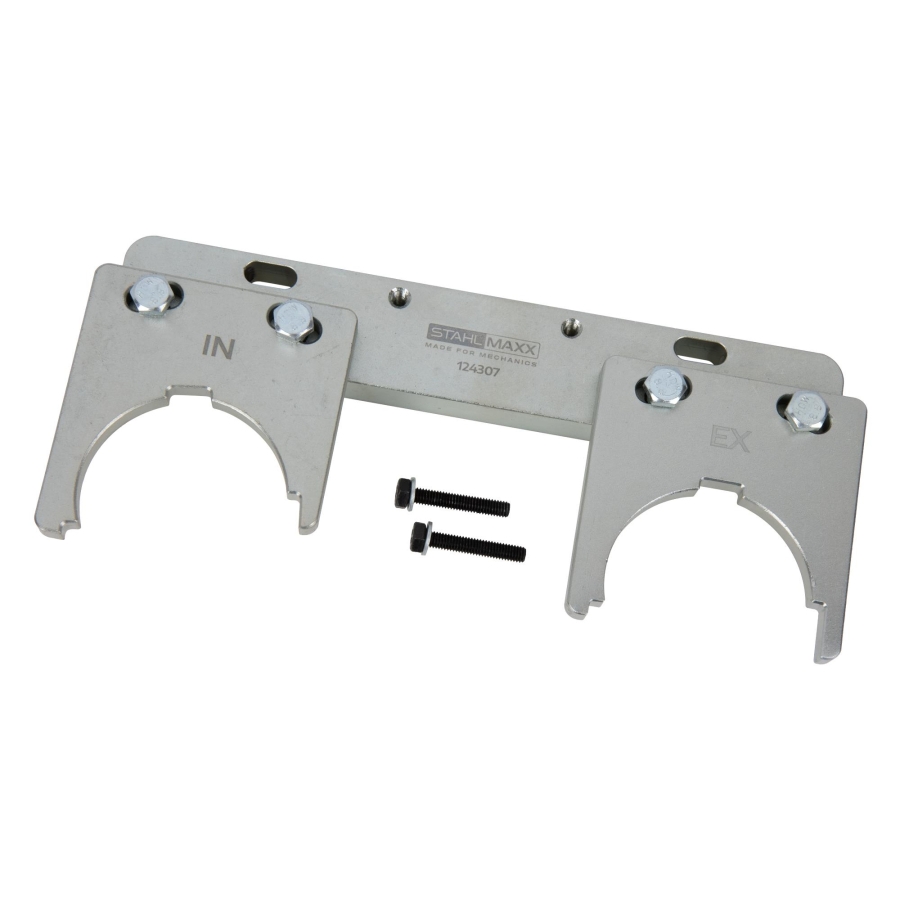

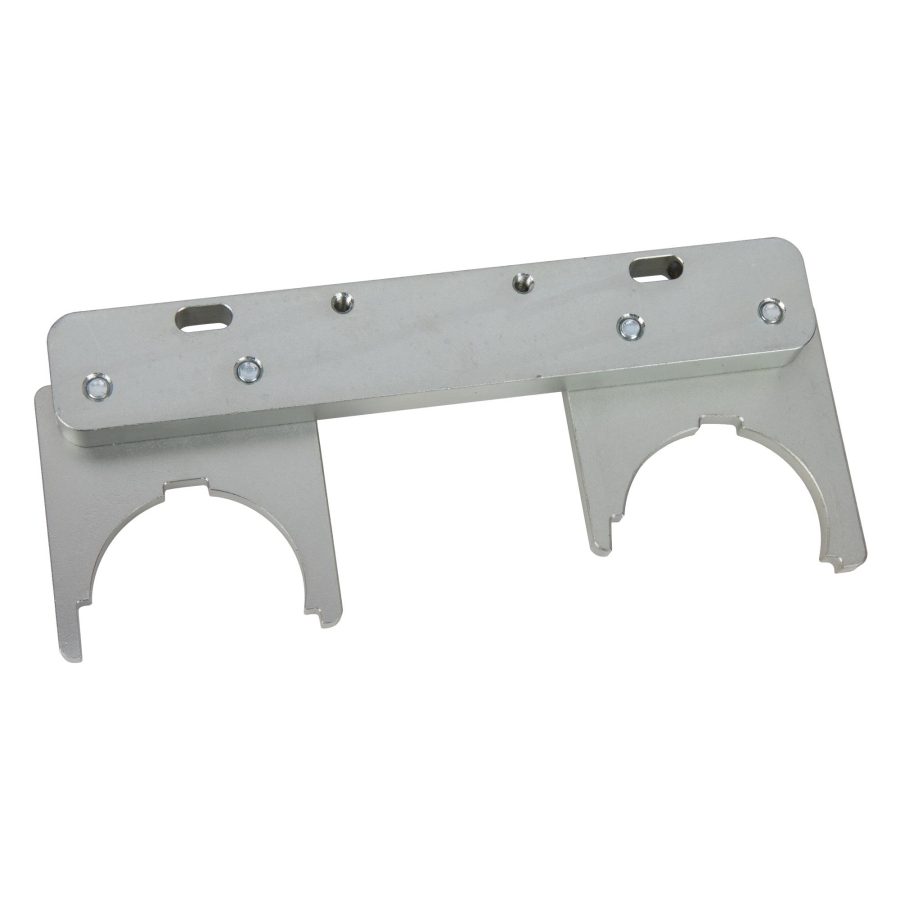

VCT Sprocket Alignment Tool for Jaguar / Land Rover 1.5L PT153 / AJ203P3 (as JLR-303-1654)

This specialized tool is designed for positioning the VCT (variable camshaft timing) chain sprockets on Jaguar and Land Rover 1.5L 3-cylinder petrol engines with engine codes PT153 and AJ203P3.

It is used during timing adjustment and engine repair to ensure correct alignment of camshaft timing components.

Functionality

The tool enables precise positioning of camshaft VCT sprockets during service procedures.

• Aligns VCT timing chain sprockets accurately
• Supports correct camshaft timing adjustment
• Prevents misalignment during repair
• Ensures reliable and repeatable service results

Compatibility

Engine Codes:

• PT153
• AJ203P3

OEM Reference

• JLR-303-1654
• JLR3031654

Original numbers are provided for comparison purposes only. This is not an original tool.

JAGUAR E-PACE (X540) (09.2017 - ) 1.5 P160 MHEV (160 HP, 118 kW)

JAGUAR E-PACE (X540) (09.2017 - ) 1.5 P300e Plug-in Hybrid AWD (200 HP, 147 kW)

JAGUAR E-PACE (X540) (09.2017 - ) 1.5 P300e Plug-in Hybrid AWD (309 HP, 227 kW)

LAND ROVER DISCOVERY SPORT (L550) (09.2014 - ) 1.5 P300e Hybrid 4x4 (200 HP, 147 kW)

LAND ROVER DISCOVERY SPORT (L550) (09.2014 - ) 1.5 P300e Hybrid 4x4 (309 hp, 227 kW)

LAND ROVER RANGE ROVER EVOQUE (L551) (12.2018 - ) 1.5 P160 MHEV (160 HP, 118 kW)

LAND ROVER RANGE ROVER EVOQUE (L551) (12.2018 - ) 1.5 P300e Hybrid 4x4 (200 hp, 147 kW)

LAND ROVER RANGE ROVER EVOQUE (L551) (12.2018 - ) 1.5 P300e Hybrid 4x4 (309 HP, 227 kW)
