Wheel Hub and Steering Knuckle Support Fixture

This specialized support fixture is designed to support and hold wheel hubs, steering knuckles, and suspension assemblies during maintenance and repair work.

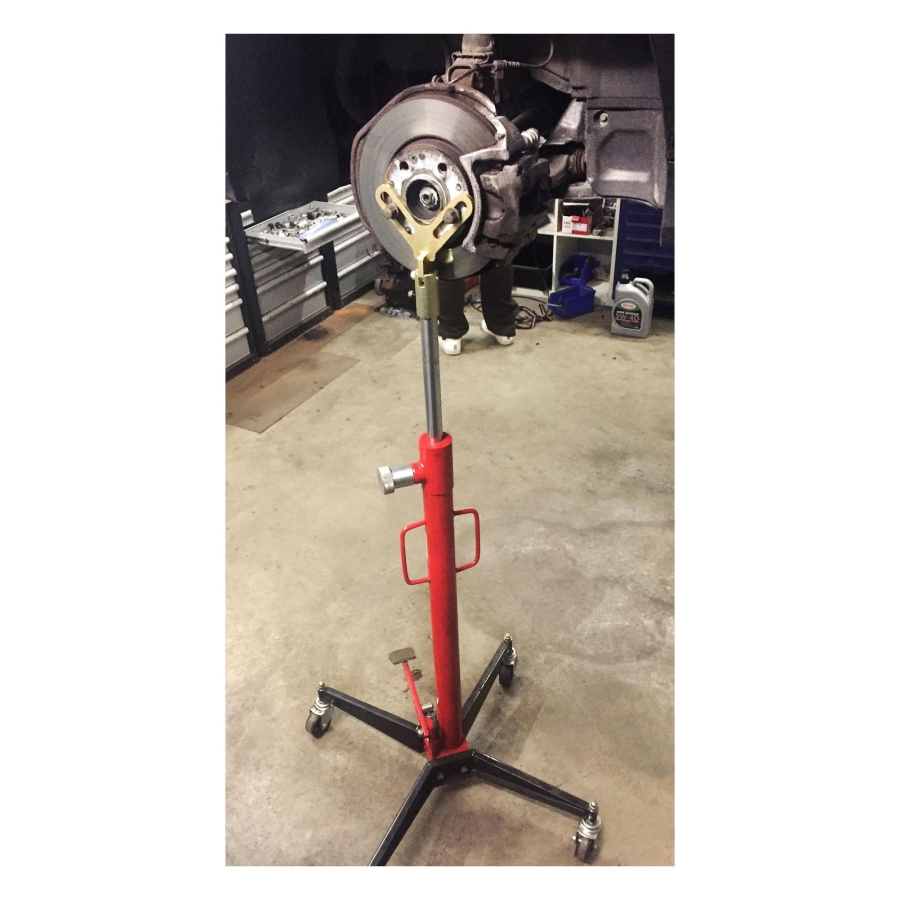

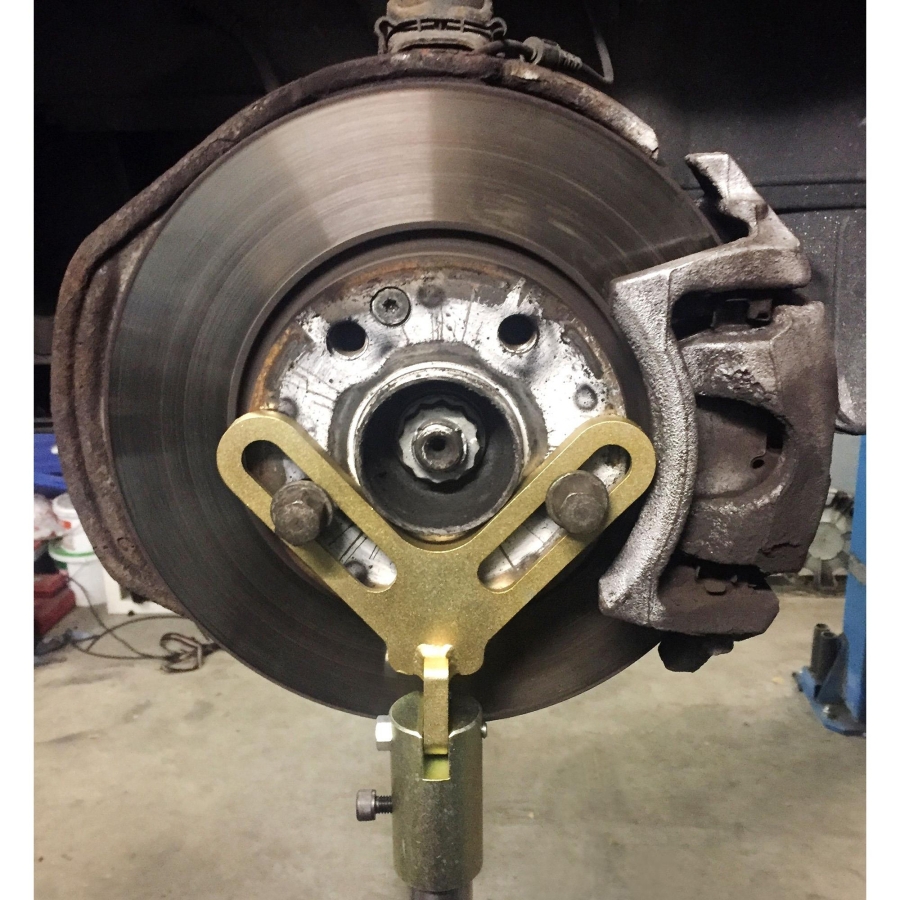

The tool is mounted directly to the wheel hub and can then be supported using a transmission jack. This allows the suspension assembly to be safely raised, lowered, or held in position during various service procedures.

It is particularly useful when tightening rubber bushings under load to ensure correct suspension geometry and bushing preload.

Benefits

The support fixture simplifies a wide range of suspension and drivetrain repair operations by safely supporting the wheel hub assembly.

Typical applications include:

• Suspension repairs
• Wheel hub support during service work
• Tightening suspension bushings under load
• Driveshaft and axle repairs
• Steering knuckle support during component replacement

Component Protection

Using the support fixture helps prevent:

• Bending of the driveshaft
• Damage to wiring and electrical connectors
• Leakage of transmission oil
• Damage to CV joint boots
• Uncontrolled dropping of the steering knuckle
• Separation of the inner tripod joint

This reduces the risk of costly repairs and damage during servicing.

Compatibility

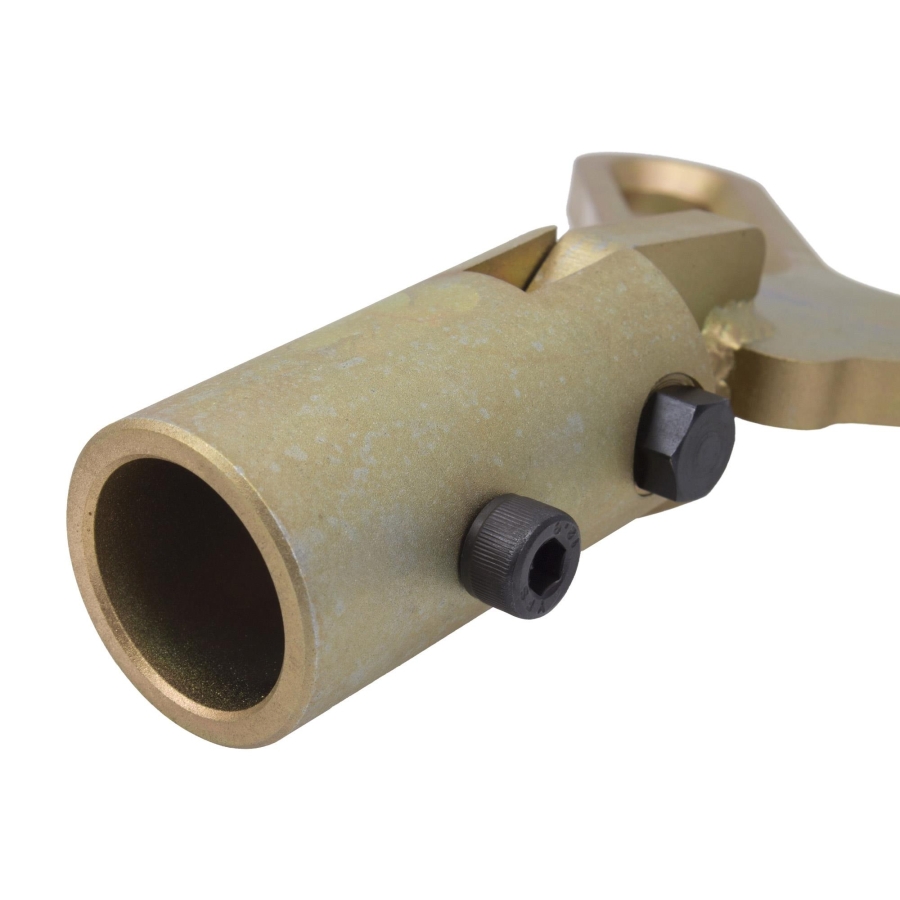

• Suitable for transmission jacks with 30 mm receiver
• Compatible with a wide range of wheel hub bolt patterns
• Suitable as an alternative to:
  • VAG T10149
  • Tesla 1459409-00-C

Features

• Direct wheel hub mounting
• Stable support of suspension assemblies
• Adjustable positioning using a transmission jack
• Broad wheel hub compatibility
• Professional workshop design

Reference numbers are provided for identification purposes only. This product is not an original OEM tool.
