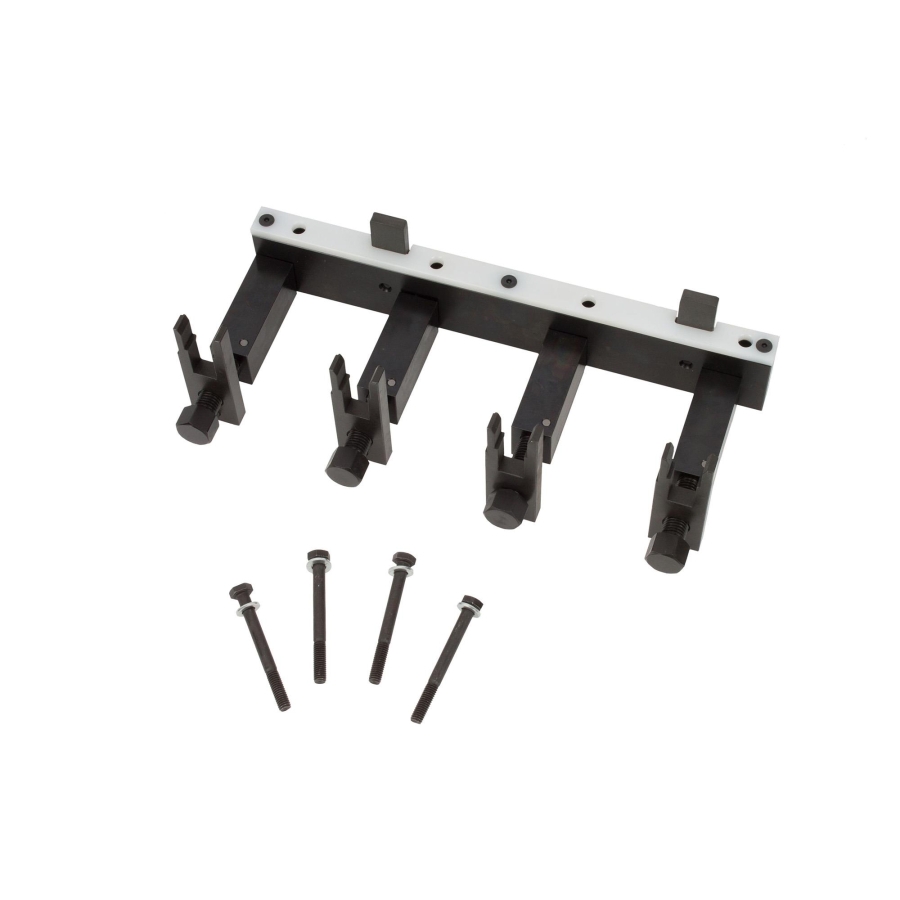

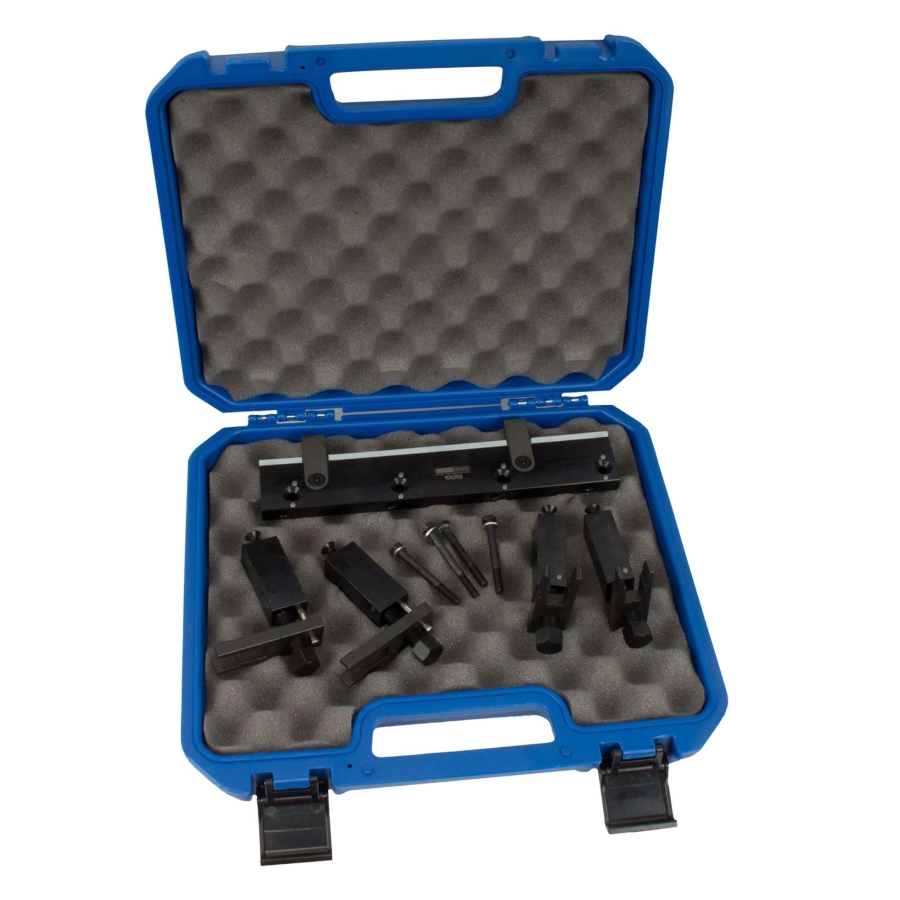

Spring Retainer Compressor for 1.4 L UniAir and MultiAir Engines, as 2000034500
-
Code:106769
-
Weight:3.800 Kgs
Overview:
✔ Special tool for compressing spring retainers on 1.4 L UniAir and MultiAir engines
✔ Suitable for Alfa Romeo, Dodge, Fiat, Jeep and Lancia applications
✔ Required before removing the MultiAir unit during camshaft or cylinder-head work
✔ Prevents damage to the electrohydraulic actuator during removal and installation
✔ Suitable for multiple 1.4 L UniAir and MultiAir engine codes
✔ Precision-manufactured from high-quality materials
✔ Used as Alfa Romeo / Fiat 2000034500
This special tool is designed to compress the spring retainers on UniAir and MultiAir engines from Alfa Romeo, Dodge, Fiat, Jeep and Lancia.
The electrohydraulic MultiAir actuator controls variable valve lift and is installed in numerous Alfa Romeo, Fiat, Lancia, Jeep, Dodge and Chrysler vehicles.
Before removing or replacing the MultiAir unit during camshaft or cylinder-head work, its compression springs must be compressed. The unit can only be removed and installed correctly without damage while the springs are held in the compressed position.
Compatible Engine Codes
198A.700, 940A2.000, 955A2.000, 955A6.000, 955A7.000, 955A8.000, 55263623, 55263624
Vehicle Compatibility
- Alfa Romeo: Giulietta, MiTo
- Dodge: Dart
- Fiat: 124 Spider, 500L, 500X, Bravo, Punto
- Jeep: Cherokee, Compass, Renegade
- Lancia: Delta
Compatibility depends on the installed UniAir or MultiAir engine and module version.
UniAir and MultiAir Module References
Suitable for modules referenced as:
as 46342822, as 55228221, as 55236341, as 55249566, as 55257643, as 55266123, as 55272426, as 04892697AA, as 04892697AB, as 04892697AG, as 68463929AA
Important Compatibility Note
For newer engine generations such as I3, I4 and T3, use Item no. 122964 or Item no. 122967, depending on the application.
These alternative tools are used as 2020000090, as 2027207090 and as 2020001090.
Comparison Reference
- Used as Alfa Romeo / Fiat 2000034500
Tool Features
- Precision-manufactured special tool
- High-quality material construction
- Designed for controlled compression of the MultiAir unit springs
- Supports damage-free removal and installation of the actuator unit
Original numbers are for comparison purposes only; this is not an original tool!
Preliminary Work
- Remove the engine cover.
- Remove the hose between the intercooler and throttle body.
- Remove the crankcase ventilation hose, oil separator and ignition coils.
- Remove the valve cover. It is secured with 13 M6 bolts, including one bolt located inside the timing-belt cover.
- Valve-cover bolt tightening torque: 8 ± 1 Nm.
- Disconnect the electrical connectors from the UniAir module and oil temperature sensor.
Tool Installation and Module Removal
- Position the tool claws behind the rocker arms.
- Slowly tighten the tool’s clamping screws until they make firm contact.
- Remove the nine bolts securing the module.
- Module bolt specification: M8 with T45 drive.
- Module bolt tightening torque during installation: 20–25 Nm.
Important
- Do not turn the module with the hydraulic tappets facing upward.
- Check that all eight hydraulic tappets are present and complete. Each tappet consists of two parts.
- Always replace the filter element located at the end of the module. A 10 mm hex key is required for removal.
- Replace all seals, including the metal gasket of the MultiAir module.
Installation and Initial Oil Filling
Installation is performed in reverse order.
- A new MultiAir unit must be prefilled before operation.
- After installing the valve cover, the ball valve is visible through the open oil-filler opening.
- Press the ball valve downward with a screwdriver while simultaneously adding an initial oil quantity of 240 ml.
