Home Automotive Tools Car Tools Engine Tools Engine Timing Tools Alfa, Fiat & Lancia Toolkits Engine Timing Tool Kit for Wet Belt Engines – 1.0 / 1.2L PSA, Opel, Toyota

Engine Timing Tool Kit for Wet Belt Engines – 1.0 / 1.2L PSA, Opel, Toyota

Price: €204.95 400.85лв.
  • Code:
    999175A
  • Weight:
    2.769 Kgs

Professional complete timing tool kit for wet belt engines (oil-immersed timing belt) used in PSA, Opel, Toyota, Fiat, and Jeep 1.0 / 1.2L engines. Enables precise locking, inspection, and installation work according to manufacturer specifications.

Estimated Shipping

outside Varna starts at €4.94 to Varna starts at €4.94
Temporary unavaliable
Add to wishlist
New Product
Engine Timing Tool Kit for Wet Belt Engines – 1.0 / 1.2L PSA, Opel, Toyota
Engine Timing Tool Kit for Wet Belt Engines – 1.0 / 1.2L PSA, Opel, Toyota Engine Timing Tool Kit for Wet Belt Engines – 1.0 / 1.2L PSA, Opel, Toyota Engine Timing Tool Kit for Wet Belt Engines – 1.0 / 1.2L PSA, Opel, Toyota Engine Timing Tool Kit for Wet Belt Engines – 1.0 / 1.2L PSA, Opel, Toyota Engine Timing Tool Kit for Wet Belt Engines – 1.0 / 1.2L PSA, Opel, Toyota Engine Timing Tool Kit for Wet Belt Engines – 1.0 / 1.2L PSA, Opel, Toyota Engine Timing Tool Kit for Wet Belt Engines – 1.0 / 1.2L PSA, Opel, Toyota Engine Timing Tool Kit for Wet Belt Engines – 1.0 / 1.2L PSA, Opel, Toyota Engine Timing Tool Kit for Wet Belt Engines – 1.0 / 1.2L PSA, Opel, Toyota Engine Timing Tool Kit for Wet Belt Engines – 1.0 / 1.2L PSA, Opel, Toyota
Send to friend
Rate this product

This comprehensive timing tool kit is designed for all variants and generations of PSA wet belt engines (oil-bath timing belt systems). It allows accurate locking of camshaft and crankshaft, proper installation of auxiliary components, and inspection of belt wear limits.

The kit supports:

  • Camshaft and crankshaft locking

  • Installation of elastic auxiliary belt via coolant pump

  • Inspection of timing belt wear limits

  • Installation of crankshaft oil seal

Applications & Engine Coverage

Suitable for a wide range of vehicles equipped with 1.0L and 1.2L PSA-based engines across multiple brands:

  • Peugeot

  • Citroën

  • Opel

  • Toyota

  • Fiat

  • Jeep

Covers multiple engine codes including EB0, EB2 variants and corresponding OEM platforms.

Generation Coverage – Full Compatibility

This complete kit includes all required tools for Generation 1, 2, and 3 engines, which differ in valve cover design and service procedures:

1st Generation

  • Full valve cover design

  • Requires complete disassembly for service

2nd Generation

  • Split valve cover design

  • Partial disassembly possible for timing belt replacement

  • 8 mm camshaft slot

3rd Generation

  • Split valve cover design with updated geometry

  • 9 mm camshaft slot (requires tool adaptation)

  • Special procedure for camshaft adjuster removal via oil pressure valve access

Important Technical Notes

  • Camshaft adjusters are visually identical (IN / EX marking only) → risk of incorrect installation

  • Ensure mechanical locking of adjusters before assembly

  • If locking does not engage → component must be replaced

Recommended diagnostic check:

  • Attempt counter-rotation via hex key

  • Max rotation: 30°

  • No engagement = defective adjuster

Critical Service Recommendations

  • Oil sump removal is required to inspect oil pump strainer

  • Always use manufacturer-approved engine oil for wet belt systems

  • Follow exact torque specifications for all components

Torque Specifications (Example – EB2 Engine)

  • Idler pulley / tensioner: 20 Nm

  • Timing cover: 8 Nm

  • Crankshaft pulley bolts: 20 Nm + 25 Nm + 45°

  • Crankshaft central bolt: 50 Nm + 180°

  • Camshaft gear: 20 Nm + 120°

  • Valve cover (upper): 10 Nm

  • Valve cover (lower): 8 Nm

Additional Tools Required (Not Included)

  • Balance shaft locking tools

  • Bearing press tools for balance shafts

  • OEM-equivalent special tools depending on engine variant

Key Features

✔ Professional-grade tool kit
✔ Covers multiple engine generations
✔ Enables OEM-compliant repairs
✔ Modular system – expandable with individual tools

OE comparison numbers

0109-2A, 0109-2B, 0109-2D, 0109-2E, 0109-4BZ, 0109-4H, 0197-BZ, 0197-N, 1643190080, 2000037072, EN-52112-2, EN-52127, EN-52127-1, EN-52127-2, EN-52128, EN-52589, EN-52809, G-0109-6



OEM reference numbers are for comparison purposes only. This is not an original OEM tool.

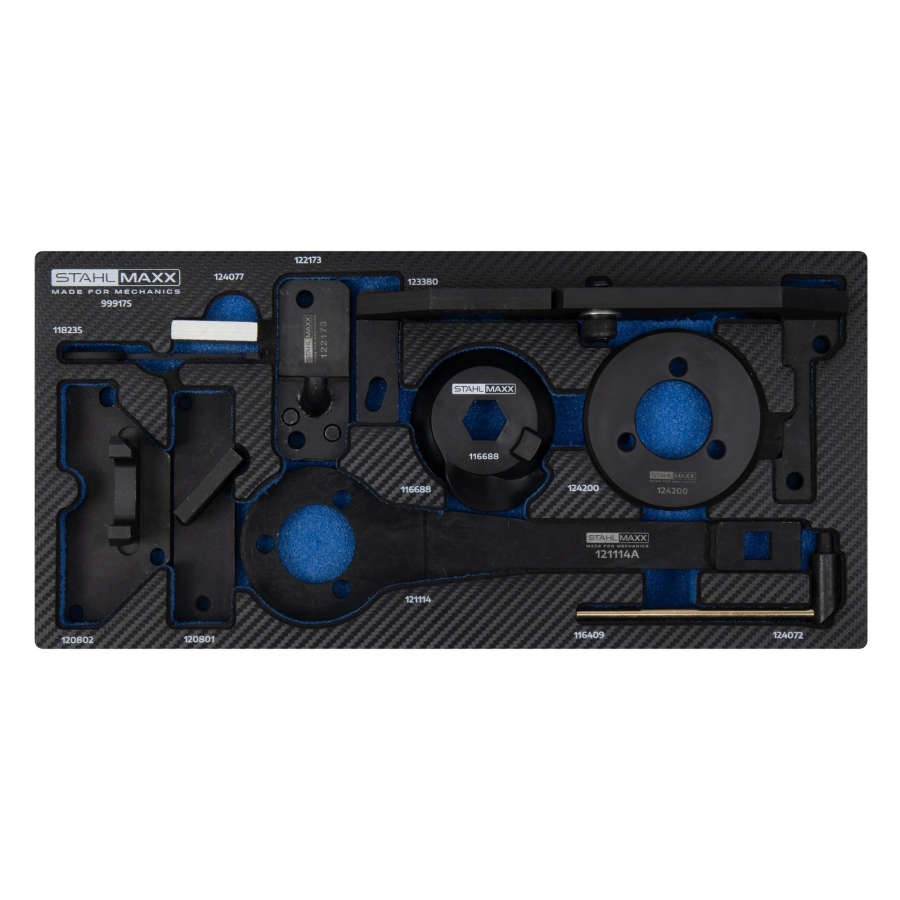

Article No. Quantity Description
123380 1 pc Camshaft locking tool (intake & exhaust) incl. crankshaft fixation, comparable to 0109-2A, EN-52127-1

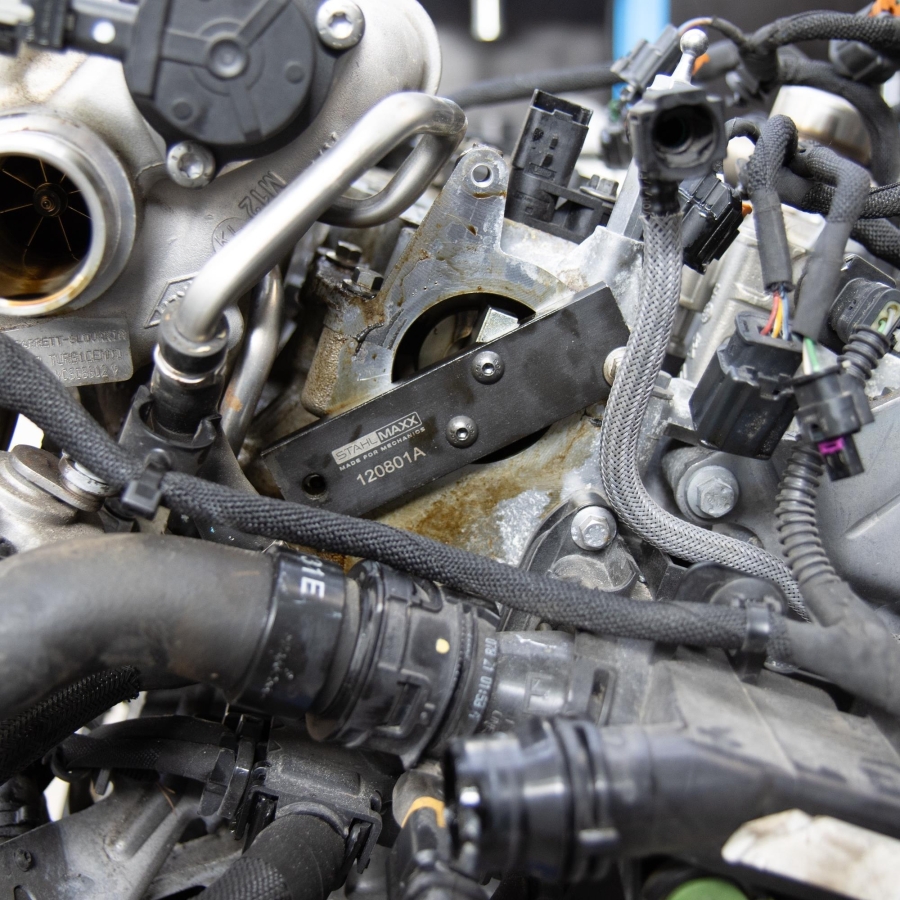

120801 1 pc Locking tool for exhaust camshaft via vacuum pump drive, comparable to 0109-2D
124077 1 pc Extension adapter plate for 120801, exhaust camshaft via vacuum pump drive

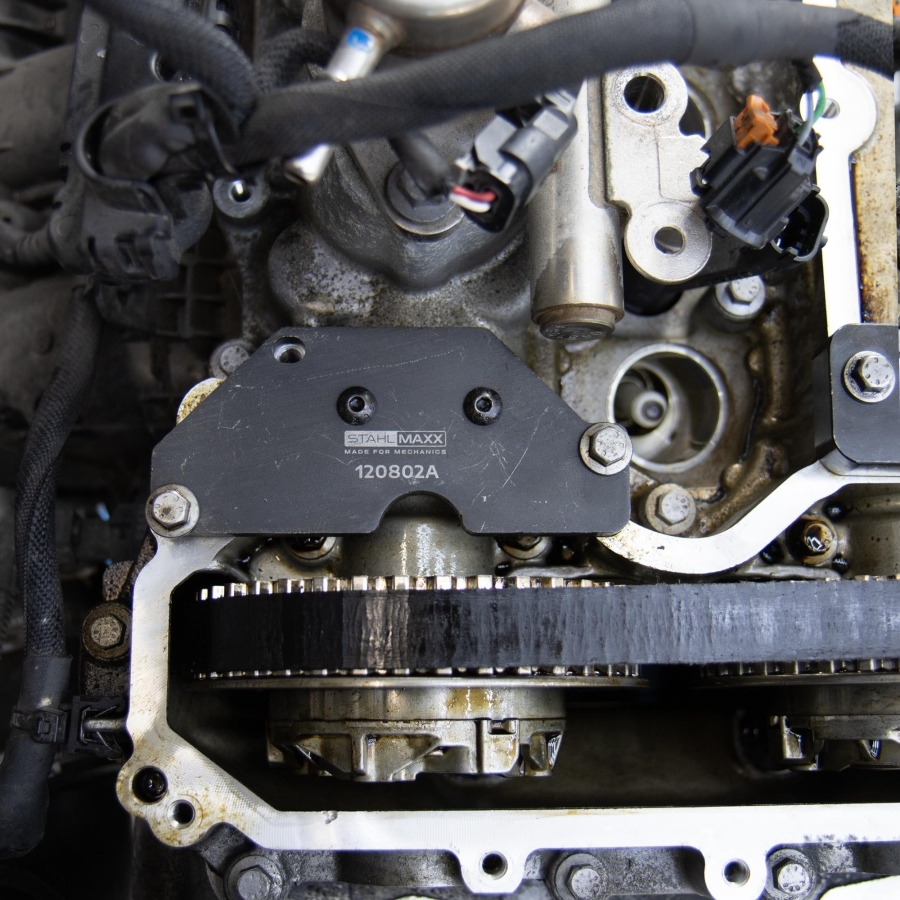

120802 1 pc Intake camshaft locking tool via valve cover, comparable to 0109-2C
122173 1 pc Exhaust camshaft locking tool via valve cover, comparable to 0109-2E, 2000037072

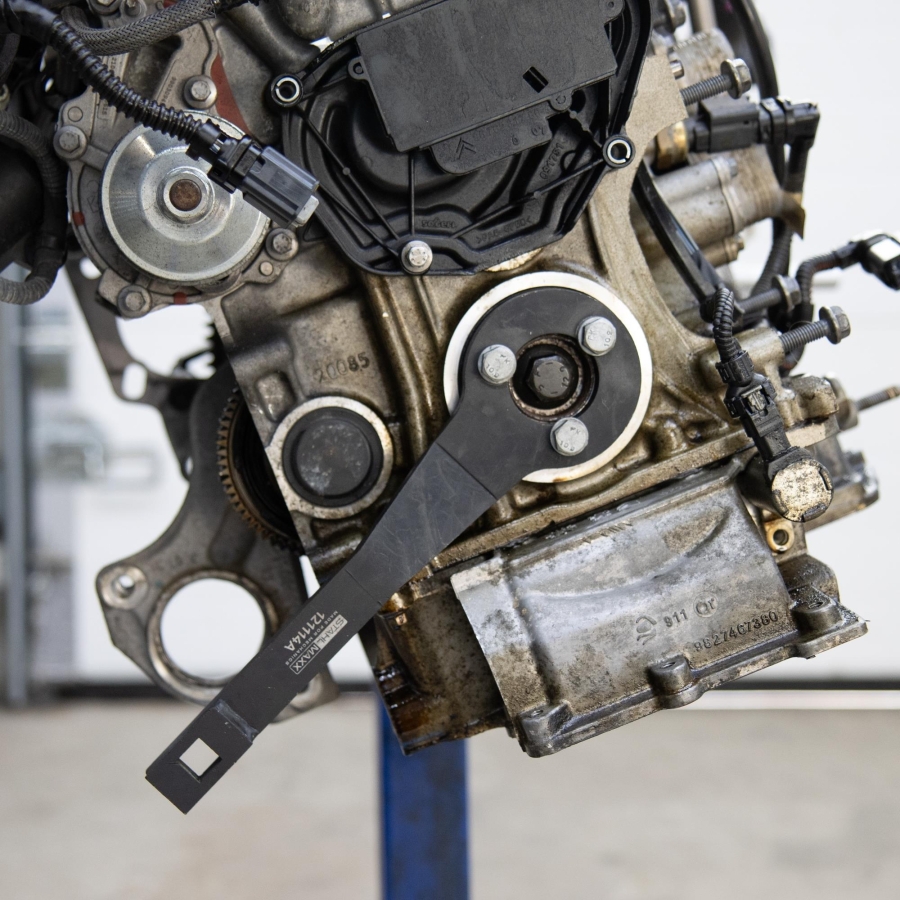

121114 1 pc Crankshaft counter holder, 3- and 6-hole, for PSA & BMW engines

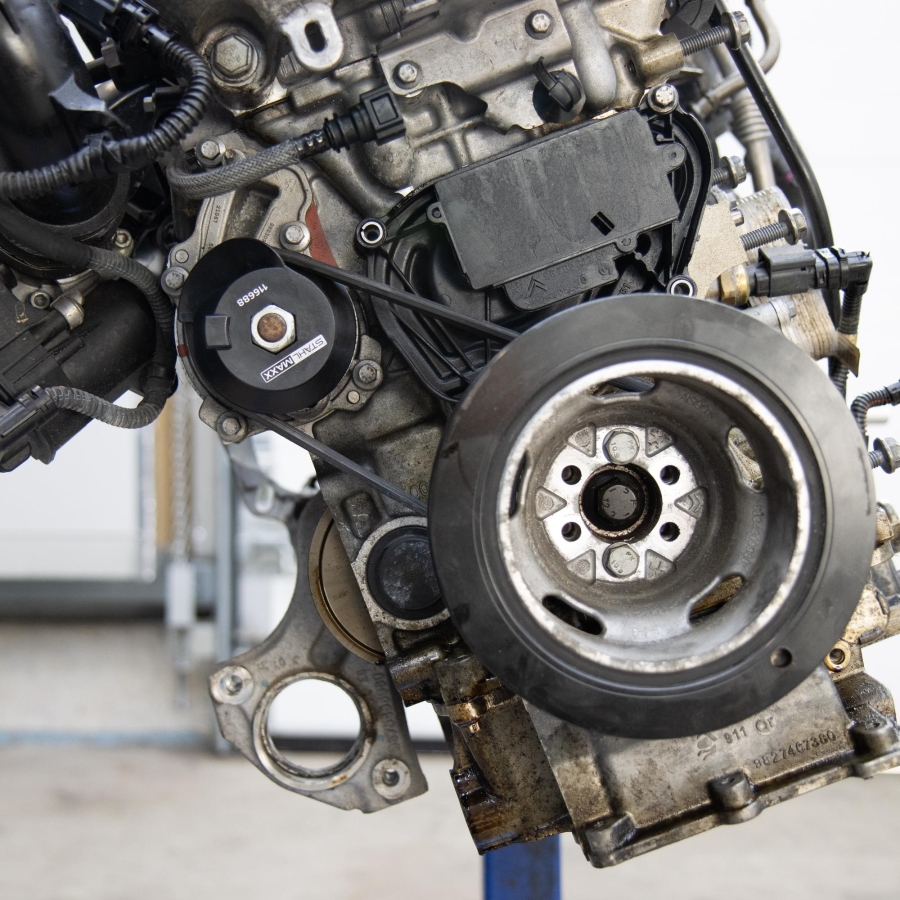

116688 1 pc Installation tool for elastic / stretch auxiliary belt, comparable to 0109-1B, EN-52112-2

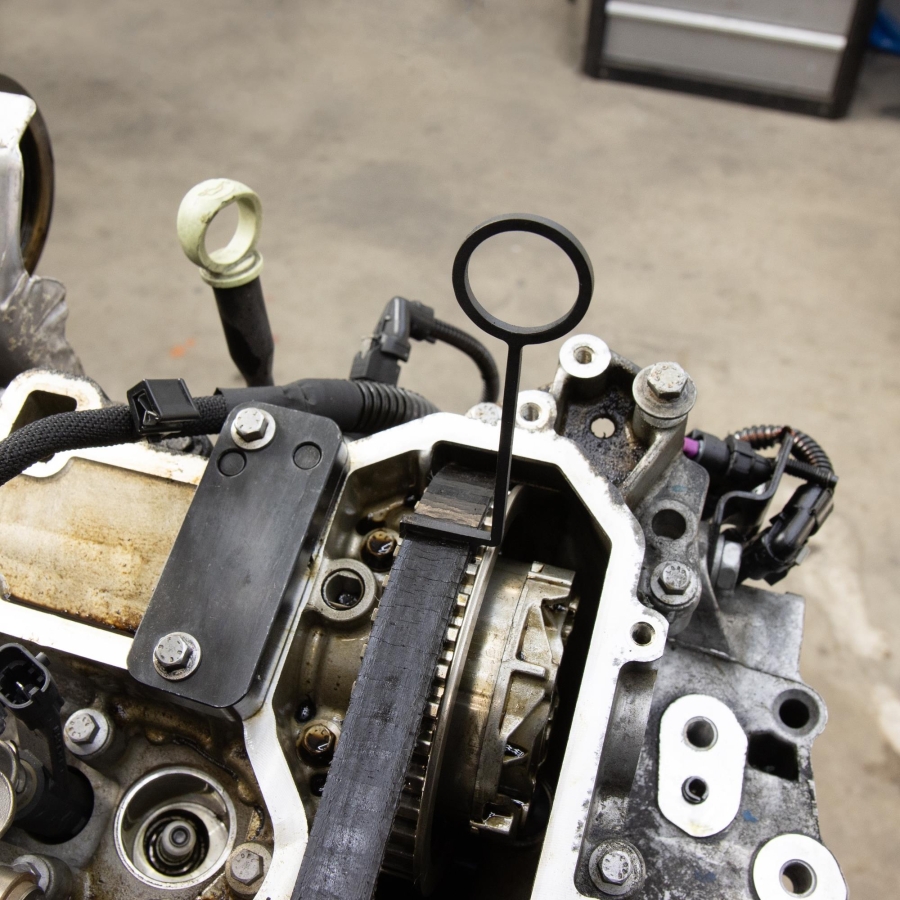

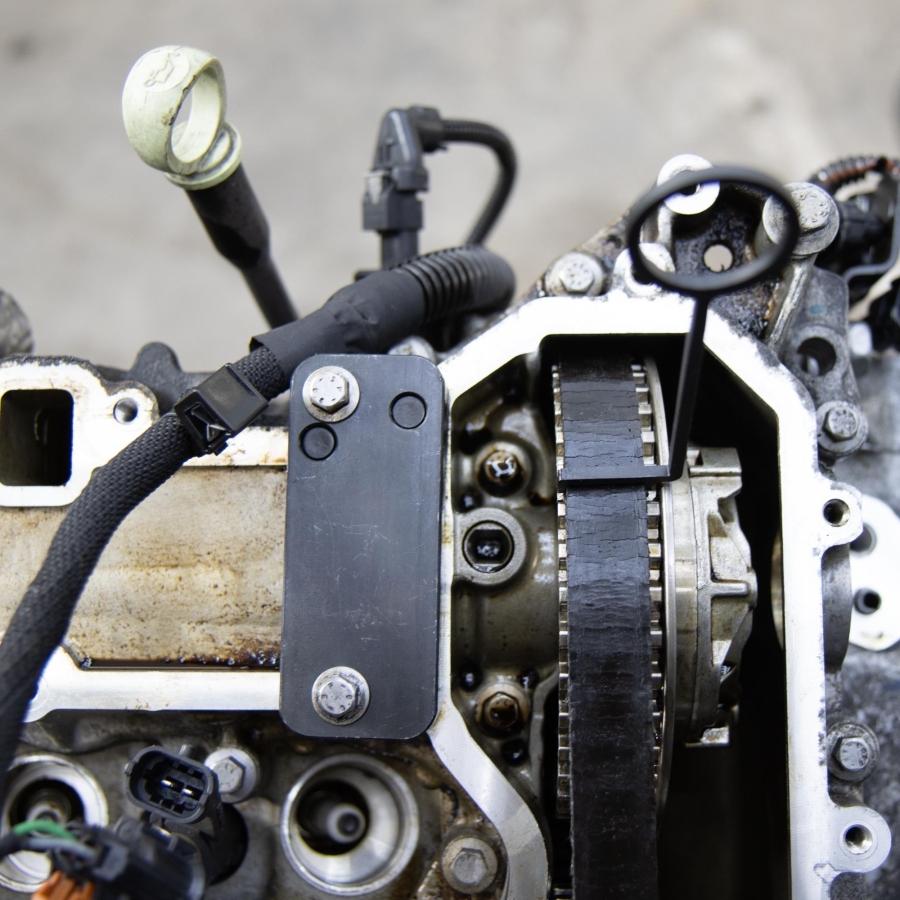

118235 1 pc Timing belt inspection tool / wear gauge, comparable to G-0109-6, EN-52809, 1643190080

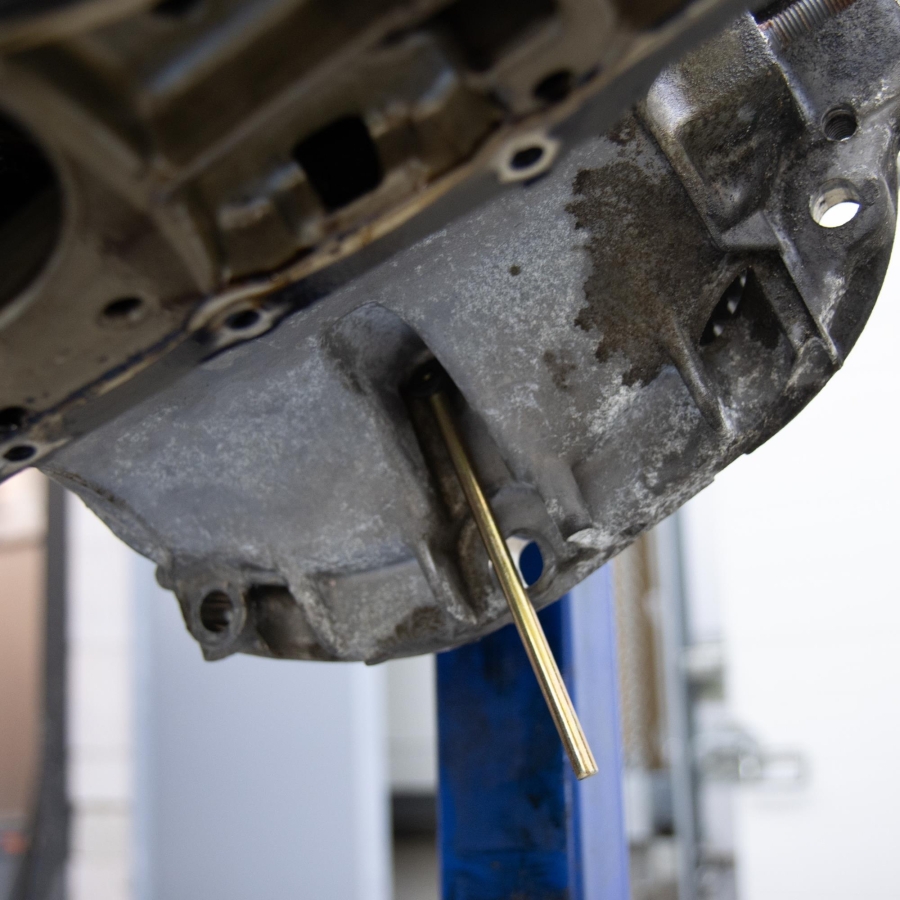

116409 1 pc Crankshaft locking tool, comparable to 0197-BZ, 0109-2B, 0197-N, EN-52127-2
124200 1 pc Crankshaft oil seal installation tool (front side), comparable to 0109-3A, EN-52133

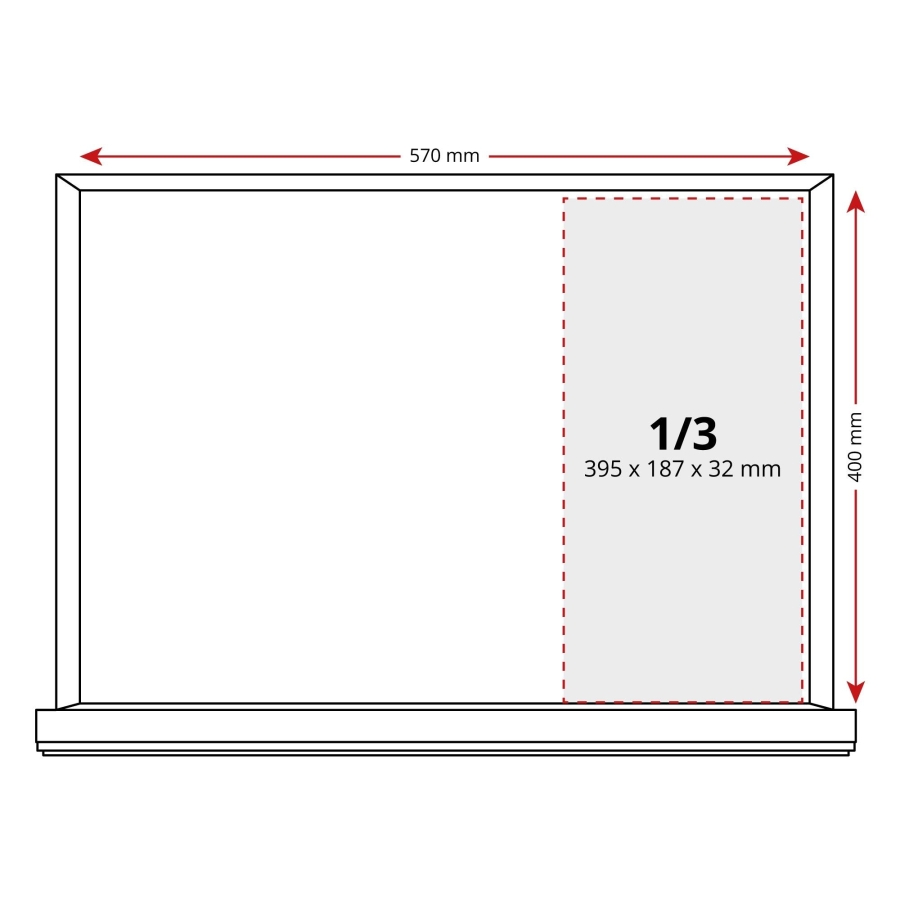

999175S 1 pc Foam insert with carbon-look [395 × 187 × 32 mm (L × W × H)]

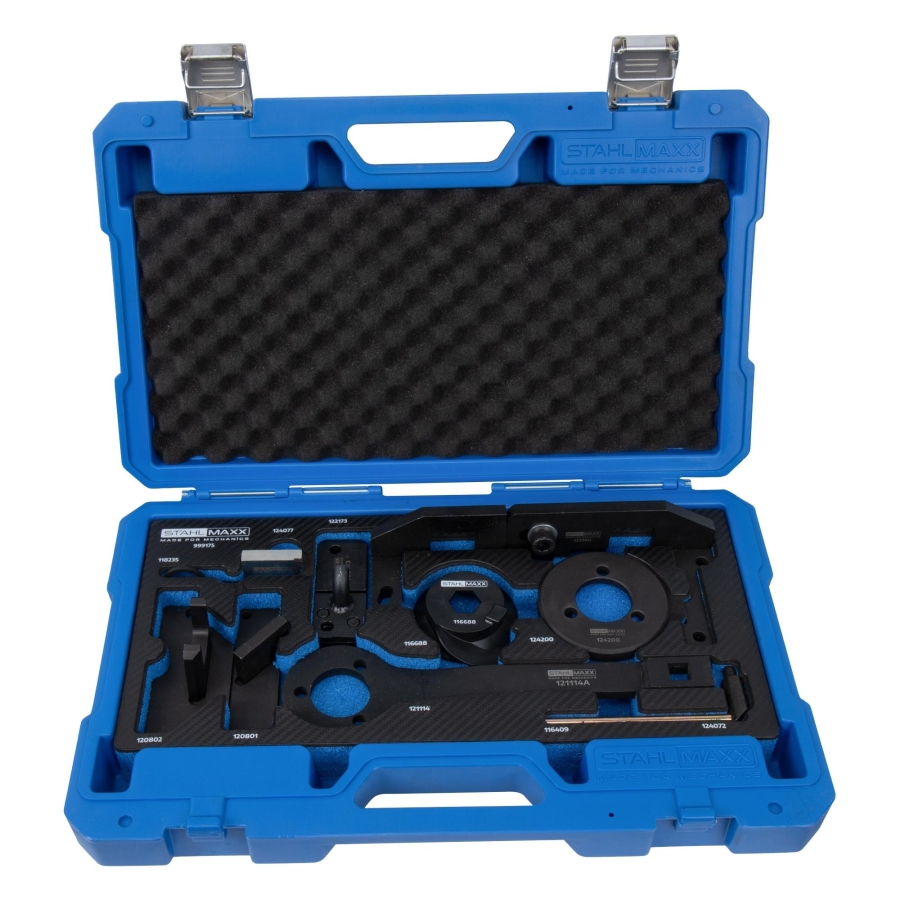

115269 1 pc Storage case 1/3

 OEM reference numbers are for comparison purposes only. This is not an original OEM tool.

This professional tool kit enables precise service operations on wet belt engines (oil-immersed timing belt systems), ensuring accurate timing alignment and OEM-compliant repairs.

Supported Operations

  • Locking of camshaft and crankshaft

  • Installation of elastic / stretch auxiliary belt via coolant pump

  • Inspection of timing belt wear limit

  • Installation of crankshaft front oil seal

For balance shaft service, additional special tools are required (not included).

Important Service Notes

  • Oil sump removal is required to inspect the oil pump strainer

  • Always use manufacturer-approved engine oil for wet belt engines

  • Strictly follow OEM torque specifications and repair procedures

Engine Generations Covered

This complete kit supports all known design variants of PSA wet belt engines, which differ in valve cover construction and service procedures:

1st Generation

  • Valve cover covers the entire cylinder head

  • All repair procedures require full disassembly

2nd Generation

  • Split valve cover design

  • Only the L-shaped section and vacuum pump need removal for timing belt replacement

  • Camshaft slot width: 8 mm

  • For camshaft adjuster or camshaft removal, full valve cover removal is required

  • Use of camshaft bridge tool across both camshafts is necessary

3rd Generation

  • Split valve cover with updated design

  • Only the L-shaped section and vacuum pump need removal for timing belt replacement

  • Camshaft slot width: 9 mm → requires tool extension/adaptation

  • Camshaft adjuster removal via oil pressure control valve access

  • Angled holding tool must be used on the camshaft flat surface

  • Full camshaft removal requires additional bridge tool for base alignment

Technical Warning – Camshaft Adjusters

  • Intake and exhaust adjusters are visually identical (marked only “IN” / “EX”)

  • High risk of incorrect installation

Mandatory check:

  • Verify mechanical locking of adjusters

  • Attempt rotation via hex key

  • Maximum allowed movement: 30°

  • If locking does not engage → adjuster must be replaced

Torque Specifications (Reference – EB2 Engine)

  • Idler pulley / tensioner: 20 Nm

  • Timing cover: 8 Nm

  • Crankshaft pulley bolts: 20 Nm + 25 Nm + 45°

  • Crankshaft central bolt: 50 Nm + 180°

  • Camshaft gear: 20 Nm + 120°

  • Valve cover (upper): 10 Nm

  • Valve cover (lower): 8 Nm

CITROËN BERLINGO (ER_, EC_) (06.2018 - ) 1.2 PureTech 110 (110 hp, 81 kW)

CITROËN BERLINGO (ER_, EC_) (06.2018 - ) 1.2 PureTech 130 (131 hp, 96 kW)

CITROËN BERLINGO Van/MPV (B9) (04.2008 - ) PureTech 110 (110 hp, 81 kW)

CITROËN BERLINGO Van/MPV (K9) (06.2018 - ) PureTech 110 (110 hp, 81 kW)

CITROËN BERLINGO Van/MPV (K9) (06.2018 - ) PureTech 130 (131 hp, 96 kW) kW)

CITROËN BERLINGO MULTISPACE (B9) (04.2008 - 12.2014) 1.2 PureTech 110 (110 HP, 81 kW)

CITROËN C-ELYSEE (DD_) (11.2012 - ) 1.2 PureTech 82 (DDHMRP) (83 HP, 61 kW)

CITROËN C-ELYSEE (DD_) (11.2012 - ) 1.2 VTi 72 (72 HP, 53 kW)

CITROËN C-ELYSEE (DD_) (11.2012 - ) 1.2 VTi 82 (82 HP, 60 kW)

CITROËN C1 II (PA_, PS_) (04.2014 - ) 1.2 VTi 82 (82 HP, 60 kW)

CITROËN C3 AIRCROSS II (2R_, 2C_) (06.2017 - ) 1.2 PureTech 110 (2RHNZB, 2RHNZW, 2RHNPX, 2RHNPJ) (110 HP, 81 kW)

CITROËN C3 AIRCROSS II (2R_, 2C_) (06.2017 - ) 1.2 PureTech 130 (2RHNYH) (131 HP, 96 kW)

CITROËN C3 AIRCROSS II (2R_, 2C_) (06.2017 - ) 1.2 PureTech 82 (2RHMRC, 2RHMZB) (82 HP, 60 kW)

CITROËN C3 AIRCROSS II Van (2C_, 2R_) (05.2019 - ) PureTech 82 (110 HP, 81 kW)

CITROËN C3 AIRCROSS II Van (2C_, 2R_) (05.2019 - ) PureTech 82 (82 HP, 60 kW)

CITROËN C3 II (SC_) (09.2009 - 12.2016) 1.0 VTi 68 (68 HP, 50 kW)

CITROËN C3 II (SC_) (09.2009 - 12.2016) 1.2 PureTech Flex (90 HP, 66 kW)

CITROËN C3 II (SC_) (09.2009 - 12.2016) 1.2 THP 110 (110 HP, 81 kW)

CITROËN C3 II (SC_) (09.2009 - 12.2016) 1.2 VTi 82 (82 HP, 60 kW)

CITROËN C3 III (SX) (07.2016 - ) 1.2 PureTech 82 (83 HP, 61 kW)

CITROËN C3 III (SX) (07.2016 - ) 1.2 PureTech 82 LPG (83 HP, 61 kW)

CITROËN C3 III (SX) (07.2016 - ) 1.2 THP 110 (110 HP, 81 kW)

CITROËN C3 III (SX) (07.2016 - ) 1.2 VTi 68 (68 HP, 50 kW)

CITROËN C3 III (SX) (07.2016 - ) 1.2 VTi 82 (82 HP, 60 kW)

CITROËN C3 III (SX) (07.2016 - ) 1.2 VTi 82 LPG (82 HP, 60 kW)

CITROËN C3 III Van (SX_, SY_) (03.2019 - ) PureTech 110 (110 HP, 81 kW)

CITROËN C3 III Van (SX_, SY_) (03.2019 - ) PureTech 82 (83 HP, 61 kW)

CITROËN C3 PICASSO (SH_) (02.2009 - 12.2016) 1.2 THP 110 (110 HP, 81 kW)

CITROËN C4 CACTUS (09.2014 - ) 1.2 PureTech 130 (131 HP, 96 kW)

CITROËN C4 CACTUS (09.2014 - ) 1.2 THP 110 (110 HP, 81 kW)

CITROËN C4 CACTUS (09.2014 - ) 1.2 VTi 75 / PureTech 75 (75 HP, 55 kW)

CITROËN C4 CACTUS (09.2014 - ) 1.2 VTi 82 (82 HP, 60 kW)

CITROËN C4 CACTUS Van (0B_, 0P_) (05.2019 - ) PureTech 110 (110 HP, 81 kW)

CITROËN C4 CACTUS Van (0B_, 0P_) (05.2019 - ) PureTech 130 (131 HP, 96 kW)

CITROËN C4 GRAND PICASSO II (DA_, DE_) (09.2013 - ) 1.2 THP 130 (130 HP, 96 kW)

CITROËN C4 II (B7) (02.2009 - 12.2016) 1.2 THP 110 (110 HP, 81 kW)

CITROËN C4 II (B7) (02.2009 - 12.2016) 1.2 THP 130 (130 HP, 96 kW)

CITROËN C4 III (B_) (10.2020 - ) 1.2 PureTech 130 (BAHNSA, BAHNSB) (130 HP, 96 kW)

CITROËN C4 PICASSO II (01.2013 - 12.2015) 1.2 THP 110 (110 HP, 81 kW)

CITROËN C4 PICASSO II (01.2013 - 12.2015) 1.2 THP 130 (130 HP, 96 kW)

CITROËN C4 SPACETOURER (3D_) (04.2018 - ) 1.2 PureTech 110 (110 HP, 81 kW)

CITROËN C4 SPACETOURER (3D_) (04.2018 - ) 1.2 PureTech 130 (131 HP, 96 kW)

CITROËN C4 SPACETOURER Van (3D_) (05.2019 - ) PureTech 130 (131 HP, 96 kW)

CITROËN C5 AIRCROSS (11.2018 - ) 1.2 PureTech 130 (131 HP, 96 kW)

CITROËN DS3 (11.2009 - 12.2015) 1.2 THP 110 (110 HP, 81 kW)

CITROËN DS3 (11.2009 - 12.2015) 1.2 VTi 82 (82 HP, 60 kW)

CITROËN DS3 Cabriolet (01.2013 - 07.2015) 1.2 THP 110 (110 HP, 81 kW)

CITROËN DS3 Cabriolet (01.2013 - 07.2015) 1.2 VTi 82 (82 HP, 60 kW)

CITROËN DS4 (NX_) (04.2011 - 07.2015) 1.2 THP 130 (130 HP, 96 kW)

CITROËN GRAND C4 SPACETOURER (3A_, 3E_) (04.2018 - ) 1.2 PureTech 130 (131 hp, 96 kW)

CITROËN GRAND C4 SPACETOURER Van (3A_, 3E_) (05.2019 - ) PureTech 130 (131 hp, 96 kW)

OPEL COMBO Panel Van/MPV (X19) (06.2018 - ) 1.2 (110 hp, 81 kW)

OPEL COMBO Panel Van/MPV (X19) (06.2018 - ) 1.2 (131 hp, 96 kW)

OPEL COMBO Tour / Life (X19) (06.2018 - ) 1.2 (110 hp, 81 kW)

OPEL COMBO Tour / Life (X19) (06.2018 - ) 1.2 (131 hp, 96 kW)

OPEL CORSA F (07.2019 - ) 1.2 (68) (101 hp, 74 kW)

OPEL CORSA F (07.2019 - ) 1.2 (68) (131 hp, 96 kW)

OPEL CORSA F (07.2019 - ) 1.2 (68) (75 hp, 55 kW)

OPEL CORSA F Van/Hatchback (07.2019 - ) 1.2 (68) (75 hp, 55 kW)

OPEL CROSSLAND X / CROSSLAND (P17, P2QO) (03.2017 - ) 1.2 (75) (110 hp, 81 kW)

OPEL CROSSLAND X / CROSSLAND (P17, P2QO) (03.2017 - ) 1.2 (75) (131 HP, 96 kW)

OPEL CROSSLAND X / CROSSLAND (P17, P2QO) (03.2017 - ) 1.2 (75) (82 HP, 60 kW)

OPEL CROSSLAND X / CROSSLAND (P17, P2QO) (03.2017 - ) 1.2 (83 HP, 61 kW)

OPEL CROSSLAND X / CROSSLAND (P17, P2QO) (03.2017 - ) 1.2 LPG (75) (82 HP, 60 kW)

OPEL CROSSLAND X Van (06.2018 - ) 1.2 (75) (110 HP, 81 kW)

OPEL CROSSLAND (06.2018 - ) 1.2 (75) (83 HP, 61 kW)

OPEL GRANDLAND X (A18) (06.2017 - ) 1.2 (75) (131 HP, 96 kW)

OPEL GRANDLAND X Van (11.2017 - ) 1.2 (75) (131 HP, 96 kW)

OPEL MOKKA (06.2020 - ) 1.2 (76) (101 HP, 74 kW)

OPEL MOKKA (06.2020 - ) 1.2 (76) (131 HP, 96 kW)

PEUGEOT 108 (05.2014 - ) 1.2 (82 HP, 60 kW)

PEUGEOT 2008 I (CU_) (03.2013 - 12.2019) 1.2 PureTech 82 (82 HP, 61 kW)

PEUGEOT 2008 I (CU_) (03.2013 - 12.2019) 1.2 THP 110 / PureTech 110 (110 HP, 81 kW)

PEUGEOT 2008 I (CU_) (03.2013 - 12.2019) 1.2 THP 130 / PureTech 130 (130 HP, 96 kW)

PEUGEOT 2008 I (CU_) (03.2013 - 12.2019) 1.2 VTi (82 HP, 60 kW)

PEUGEOT 2008 I Van (CU_) (01.2018 - ) PureTech 130 (CUHNYM, CUHNSS) (131 HP, 96 kW)

PEUGEOT 2008 II (UD_, US_, UY_, UK_) (08.2019 - ) 1.2 PureTech 100 (101 HP, 74 kW)

PEUGEOT 2008 II (UD_, US_, UY_, UK_) (08.2019 - ) 1.2 PureTech 130 (130 HP, 96 kW)

PEUGEOT 2008 II (UD_, US_, UY_, UK_) (08.2019 - ) 1.2 THP / PureTech 155 (USHNNS, URHNNS, UXHNJP, URHNJP,... (155 HP, 114 kW)

PEUGEOT 208 I (CA_, CC_) (03.2012 - 10.2017) 1.0 (68 HP, 50 kW)

PEUGEOT 208 I (CA_, CC_) (03.2012 - 10.2017) 1.2 (90 HP, 66 kW)

PEUGEOT 208 I (CA_, CC_) (03.2012 - 10.2017) 1.2 GPL (82 HP, 60 kW)

PEUGEOT 208 I (CA_, CC_) (03.2012 - 10.2017) 1.2 PureTech 82 (82 HP, 61 kW)

PEUGEOT 208 I (CA_, CC_) (03.2012 - 10.2017) 1.2 THP 110 (110 HP, 81 kW)

PEUGEOT 208 I (CA_, CC_) (03.2012 - 10.2017) 1.2 VTI 82 (82 HP, 60 kW)

PEUGEOT 208 I (CA_, CC_) (03.2012 - 10.2017) 1.2 VTi 68 / PureTech 68 (68 HP, 50 kW)

PEUGEOT 208 II (UB_, UP_, UW_, UJ_) (06.2019 - ) 1.2 PureTech 100 (101 HP, 74 kW)

PEUGEOT 208 II (UB_, UP_, UW_, UJ_) (06.2019 - ) 1.2 PureTech 130 (131 HP, 96 kW)

PEUGEOT 208 II (UB_, UP_, UW_, UJ_) (06.2019 - ) 1.2 PureTech 75 (75 hp, 55 kW)

PEUGEOT 208 Box Body/Hatchback (CR_) (10.2012 - ) 1.2 VTI 68 / PureTech 68 (CRHMP6, CRHMM6) (68 HP, 50 kW)

PEUGEOT 208 Box Body/Hatchback (CR_) (10.2012 - ) 1.2 VTI 82 / PureTech 82 (CRHMZ6, CRHMRP) (82 HP, 60 kW)

PEUGEOT 3008 MPV (0U_) (06.2009 - 12.2017) 1.2 (131 HP, 96 kW)

PEUGEOT 3008 SUV (MC_, MR_, MJ_, M4_) (05.2016 - ) 1.2 THP/ PureTech 130 (131 hp, 96 kW)

PEUGEOT 3008 Van (MR_, MC_, MJ_) (05.2016 - ) PureTech 130 (MRHNYH) (131 HP, 96 kW)

PEUGEOT 301 (11.2012 - 10.2017) 1.2 PureTech 82 (83 HP, 61 kW)

PEUGEOT 301 (11.2012 - 10.2017) 1.2 VTi 72 (72 HP, 53 kW)

PEUGEOT 301 (11.2012 - 10.2017) 1.2 VTi 82 (82 HP, 60 kW)

PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) (09.2013 - 02.2019) 1.2 THP 110 (110 HP, 81 kW)

PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) (09.2013 - 02.2019) 1.2 THP 130 (131 HP, 96 kW)

PEUGEOT 308 II (LB_, LP_, LW_, LH_, L3_) (09.2013 - 02.2019) 1.2 VTi 72 (82 HP, 60 kW)

PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) (03.2014 - ) 1.2 THP 110 (110 HP, 81 kW)

PEUGEOT 308 SW II (LC_, LJ_, LR_, LX_, L4_) (03.2014 - ) 1.2 THP 130 (131 HP, 96 kW)

PEUGEOT 5008 (0U_, 0E_) (06.2009 - 03.2017) 1.2 (131 HP, 96 kW)

PEUGEOT 5008 II (MC_, MJ_, MR_, M4_) (12.2016 - ) 1.2 (MRHNYH, MRHNYW, MRHNSJ) (131 HP, 96 kW)

PEUGEOT 508 II (FB_, FH_, F3_) (09.2018 - ) PureTech 130 (131 HP, 96 kW)

PEUGEOT 508 SW II (FC_, FJ_, F4_) (09.2018 - ) PureTech 130 (131 hp, 96 kW)

PEUGEOT PARTNER Van/MPV (04.2008 - 12.2018) 1.2 THP (110 hp, 81 kW)

PEUGEOT PARTNER Van/MPV (K9) (09.2018 - ) 1.2 PureTech 110 (110 hp, 81 kW)

PEUGEOT PARTNER Van/MPV (K9) (09.2018 - ) 1.2 PureTech 130 (131 hp, 96 kW)

PEUGEOT PARTNER TEPEE (04.2008 - 12.2018) 1.2 THP (110 hp, 81 kW)

PEUGEOT RIFTER (09.2018 - ) 1.2 PureTech 110 (110 hp, 81 kW)

PEUGEOT RIFTER (09.2018 - ) 1.2 PureTech 130 (131 hp, 96 kW)

TOYOTA PROACE CITY Van/MPV (10.2019 - ) 1.2 VVT-i 110 (BPZNN) (110 hp, 81 kW)

TOYOTA PROACE CITY Van/MPV (10.2019 - ) 1.2 VVT-i 130 (BPZNP) (131 hp, 96 kW)

TOYOTA PROACE CITY VERSO MPV (10.2019 - ) 1.2 VVT-i 110 (BKYNN) (110 hp, 81 kW)

TOYOTA PROACE CITY VERSO MPV (10.2019 - ) 1.2 VVT-i 130 (BKYNP) (131 hp, 96 kW)

New Products

Subscribe

News

Brands
STAHLMAXX
BGS Technic
RepTools
Laser Tools
Rotake
Scroll To Top
