Injector Removal & Installation Tool Set for 1.0L & 1.5L TSI EA211 Engines, as VW T10581, T10629, T10597, Ford 303-1752

Price: €135.50 265.01лв.

Code:

124712
Weight:

1.250 Kgs

Overview:
✔ Professional injector removal and installation tool set for VAG EA211 direct injection engines
✔ Suitable for 1.0L 3-cylinder and 1.5L 4-cylinder TSI engines
✔ Compatible with VW, Audi, Seat, Skoda and Ford 1.5L EcoBoost engines
✔ Designed for safe removal and installation of high-pressure injectors
✔ Includes Teflon seal installation and calibration tools
✔ Suitable for professional workshop use according to OEM procedures

Injector Removal & Installation Tool Set for 1.0L & 1.5L TSI EA211 Engines, as VW T10581, T10629, T10597, Ford 303-1752

Send to friend

Rate this product

This professional special tool set is designed for removing and installing injectors on 1.0L 3-cylinder and 1.5L 4-cylinder direct injection EA211 engines used in VW, Audi, Seat, Skoda and Ford 1.5L EcoBoost vehicles.

Direct injection injectors are often seized inside the cylinder head due to heat and carbon deposits. Limited installation space also makes injector removal difficult without dedicated tools.

The use of conventional hand tools such as pliers or pry bars is strongly discouraged. High-pressure injectors may become damaged, causing fuel leaks and potential vehicle fire hazards.

Combined Adapter Plate Design

STAHLMAXX has developed a combined version of the otherwise separate removal adapter plates used as:

VW T10581
VW T10629

This design covers multiple engine generations:

For 3-cylinder engines, the tool is used according to OEM repair procedures
For 4-cylinder engines, the plate can be reversed and used for cylinders 1–3 or 2–4

This provides broad workshop coverage while maintaining manufacturer repair specifications and cost-efficient servicing.

Preparation Procedure

Remove the intake manifold
Engines equipped with a vacuum pump use a special locking mechanism on the line connection which must be unlocked before removal
Remove the high-pressure fuel lines using a line wrench
Remove the fuel rail

Injector Removal Procedure

Install the impact sleeve onto the injector
Loosen the injector using light hammer strikes
Install the base plate using the knurled screws
On 4-cylinder engines:
- first use cylinders 1–3
- then reverse the plate for cylinders 2–4
Install the removal sleeve and puller into the upper injector groove
Tighten the screw hand-tight
Use a torque wrench set to 5 Nm to loosen the injector

If the injector cannot be removed:

Repeat the impact sleeve procedure

Important:

Do not exceed 5 Nm extraction force
Exceeding this value requires injector replacement

Injector Installation Procedure

Replacement of the following components is mandatory:

Teflon combustion chamber seal
Rubber sealing ring
Support rings
Injector retainer

Support ring installation order:

Larger support ring
Smaller support ring
Rubber sealing ring

Installation procedure:

Remove the old Teflon seal using a suitable hook tool
Clean the injector shaft carefully
Install the mounting cone onto the injector
Slide the Teflon seal onto the injector using fingers and installation sleeve
Use the calibration sleeve with light rotational movement until fully seated

Important:

The injector must be installed within 5 minutes after calibration
Otherwise, recalibration is required
Ensure proper alignment of the injector guide pin into the cylinder head

Vehicle Compatibility

Audi

Audi A1 (from 2018)
Audi A3 (from 2012)
Audi Q2 (from 2016)
Audi Q3 (from 2018)

Cupra

Cupra Formentor (from 2020)
Cupra Leon (from 2020)

Ford

Ford Tourneo Connect
Ford Grand Tourneo Connect

Seat

Seat Arona (from 2017)
Seat Ateca (from 2016)
Seat Ibiza (from 2017)
Seat Leon (from 2012)
Seat Tarraco (from 2018)
Seat Toledo (from 2017)

Skoda

Skoda Fabia (from 2021)
Skoda Kamiq (from 2019)
Skoda Karoq (from 2017)
Skoda Kodiaq (from 2016)
Skoda Octavia (from 2012)
Skoda Rapid (from 2017)
Skoda Scala (from 2019)
Skoda Superb (from 2015)

Volkswagen

VW Arteon (from 2017)
VW Caddy (from 2020)
VW Golf 7 (from 2012)
VW Passat (from 2014)
VW Polo (from 2017)
VW T-Cross (from 2018)
VW T-Roc (from 2017)
VW T7 Multivan (from 2021)
VW Taigo (from 2021)
VW Tiguan (from 2016)
VW Touran (from 2015)
VW up! (from 2016)

Compatible Injector & Seal Reference Numbers

Bosch

0261500443
0261500475

Elring

929.830
113.880
446.150

VAG

04E998907B
05C906036
04E906036AD
05E906907
04E906036L
04E906036K
05C906907
04E906036AE
04E906036H
04E906036P
04E906036R
04E906907E
04E906907C

Compatible Engine Codes

CHZA, CHZB, CHZC, CHZD, CHZE, CHZG, CHZJ, CHZK, CHZL, DADA, DFYA, DKJA, DKLA, DKLB, DKLC, DKLD, DKRA, DKRC, DKRD, DKRE, DKRF, DLAA, DLAB, DLAC, DPBC, DPCA, DUSB, DXDB

OEM Compatibility

VAG

T10581 (/1, /2, /3, /4, /5, /6, /7)
T10597
T10629 (/1, /2, /3)
T10133/16

Ford

303-1745
3031745
303-1752
3031752
303-D1744

Product Features

Professional Stahlmaxx quality tool
High-quality materials
Precision-manufactured components
Suitable for repairs according to OEM procedures
Based on original tool specifications
Broad engine and vehicle coverage
Suitable for professional workshop use

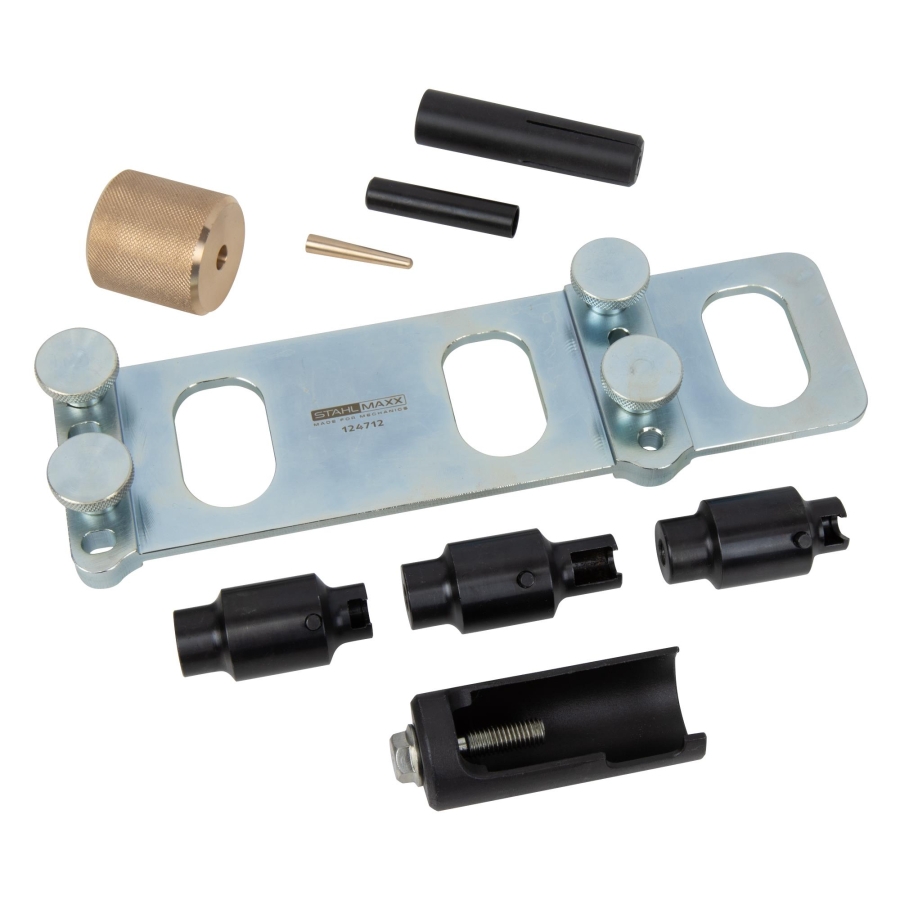

Package Contents

1 x Removal tool, to be used as VW T10133/16A, Ford 303-1745

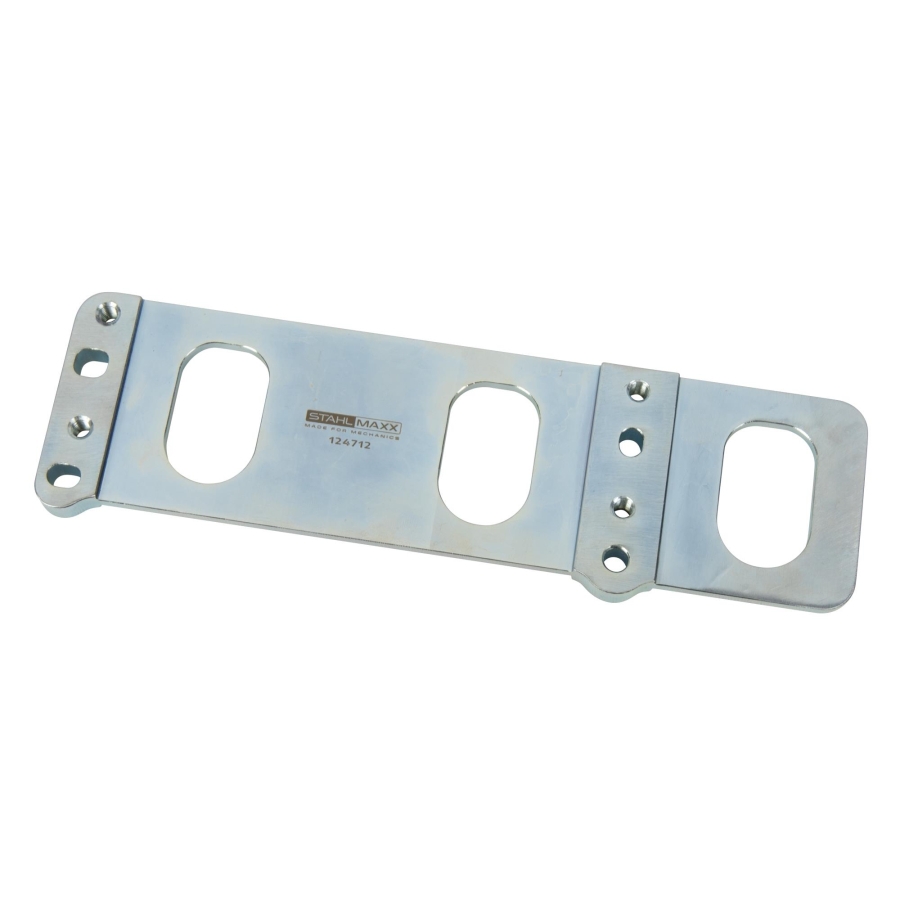

1 x Combined base plate, to be used as VW T10581/1, T10629/2, Ford 303-1752

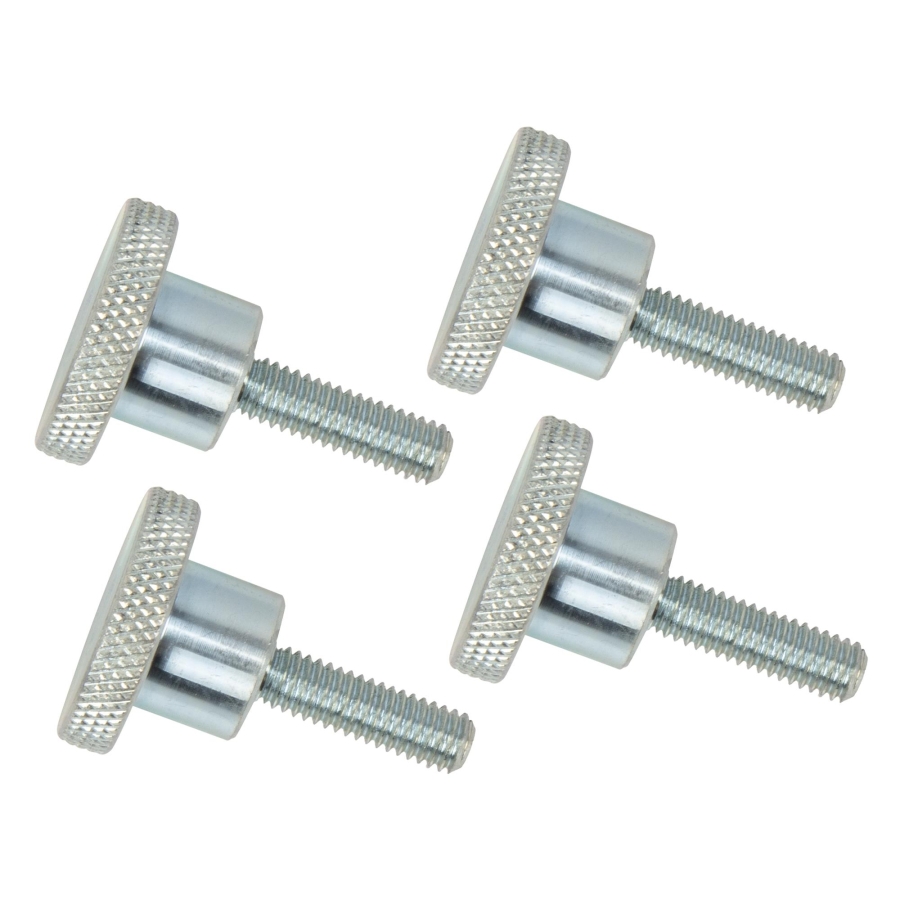

4 x Knurled screws, to be used as VW T10581/2, T10629/3
1 x Injector impact sleeve, to be used as VW T10581/3
1 x Puller for 1.5L TSI engines, to be used as VW T10581/4
1 x Removal pin for hammer impact use, to be used as VW T10581/5
1 x Teflon seal installation sleeve, to be used as VW T10581/6
1 x Teflon seal calibration sleeve, to be used as VW T10581/7
1 x Puller for 1.0L TSI Gen. II engines, to be used as VW T10597
1 x Puller for 1.0L TSI Gen. I engines, to be used as VW T10629/1

Professional Workshop Application

Suitable for professional workshops and technicians performing:

Injector removal
Injector installation
Direct injection fuel system repairs
Teflon seal replacement
EA211 engine maintenance
VAG and Ford EcoBoost injector servicing

OEM numbers are mentioned for identification purposes only. This product is not an original OEM tool.

Special tool set for the removal and installation of fuel injectors on 3-cylinder 1.0L and 4-cylinder 1.5L direct injection engines from Volkswagen, SEAT, Škoda Auto, Audi and Ford Motor Company (1.5L EcoBoost only).

The injectors / direct injection fuel injectors are often seized in the cylinder head seat. Due to limited space, removal is frequently difficult without the correct tooling.

It is strongly recommended not to remove the injectors using standard hand tools (pliers or pry bars). The injectors operate under high pressure, and damage may result in leaks and vehicle fires.

STAHLMAXX has designed a combined version of the otherwise separate removal adapter plates (such as T10581 and T10629).

This solution covers all engine generations:

On 3-cylinder engines, the tool is used according to the OE repair manual.
On 4-cylinder engines, the plate can be reversed and used depending on injector position for cylinders 1–3 or 2–4.

This provides mechanics and workshops with broad vehicle coverage and a cost-effective working method while still complying with manufacturer specifications.

Instructions for Use / Procedure

(Reference vehicles: VW Golf 2018 1.5L TSI engine DACA, Audi A3 1.0 TFSI engine DLAA and VW Polo 1.0L TSI engine DKJA)

Preparatory Work

Remove the intake manifold
(Engines equipped with a vacuum pump feature a special locking mechanism on the line; unlock it before disconnecting.)
Unscrew the high-pressure fuel lines using a line wrench (e.g. item no. KT09010)
Remove the fuel rail

Injector Removal

Position the impact sleeve (such as T10581/3) onto the injector and loosen it with light hammer blows (e.g. using a plastic hammer)
Install the base plate (such as T10581/1 or T10629/2) using the knurled screws (such as T10581/2 or T10629/3)
On 4-cylinder engines, first work on cylinders 1–3, then reverse the plate for cylinders 2–4
Position the removal sleeve (such as T10133/16A) together with the puller (such as T10581/4, T10597 or T10629/1) into the upper groove of the injector and initially tighten the screw hand-tight
Using a torque wrench set to 5 Nm, attempt to loosen the injector
If removal is not possible, use the impact sleeve again and repeat the extraction process
Do not exceed 5 Nm torque, otherwise the injector must be replaced

Installation

It is mandatory to replace:

the Teflon seal to the cylinder,
the rubber sealing ring,
the support rings,
and the retaining clip at the injector inlet.

(The larger diameter support ring is installed first onto the injector, followed by the smaller ring, then the rubber sealing ring.)

Remove the old Teflon seal using a small hook (e.g. from item no. 32009)
Clean the injector shaft using a clean cloth
First slide the installation cone (such as T10581/5) onto the injector, then install the Teflon sealing ring first by hand and then using the installation sleeve (such as T10581/6) until it seats in the groove
Then slide the calibration sleeve (such as T10581/7) onto the injector with light twisting movements until fully seated in order to “calibrate” the Teflon ring

The injector must be installed within 5 minutes after calibration. Otherwise, the calibration process must be repeated.

During installation, ensure that the locating pin of the injector correctly engages in the cylinder head.

Suitable for the Following Vehicles (among others)

Audi

A1 from 2018
A3 from 2012
Q2 from 2016
Q3 from 2018

Cupra

Formentor from 2020
Leon from 2020

Ford

Tourneo Connect
Grand Tourneo Connect

Seat

Arona from 2017
Ateca from 2016
Ibiza from 2017
Leon from 2012
Tarraco from 2018
Toledo from 2017

Skoda

Fabia from 2021
Kamiq from 2019
Karoq from 2017
Kodiaq from 2016
Octavia from 2012
Rapid from 2017
Scala from 2019
Superb from 2015

VW

Arteon from 2017
Caddy from 2020
Golf 7 from 2012
Passat from 2014
Polo from 2017
T-Cross from 2018
T-Roc from 2017
T7 Multivan from 2021
Taigo from 2021
Tiguan from 2016
Touran from 2015
up! from 2016

Suitable for the Following Comparison Numbers / Seal Kits / Injectors

Bosch

0261500443
0261500475

Elring

929.830
113.880
446.150

VAG

04E998907B
05C906036
04E906036AD
05E906907
04E906036L
04E906036K
05C906907
04E906036AE
04E906036H
04E906036P
04E906036R
04E906907E
04E906907C

AUDI A1 (8X1, 8XK) (05.2010 - 10.2018) 1.0 TFSI (82 HP, 60 kW) AUDI A1 (8X1, 8XK) (05.2010 - 10.2018) 1.0 TFSI (95 HP, 70 kW) AUDI A1 CITY CARVER (GBH) (07.2019 - ) 25 TFSI (95 HP, 70 kW) AUDI A1 CITY CARVER (GBH) (07.2019 - ) 30 TFSI (110 HP, 81 kW) AUDI A1 CITY CARVER (GBH) (07.2019 - ) 30 TFSI (116 HP, 85 kW) AUDI A1 CITY CARVER (GBH) (07.2019 - ) 35 TFSI (150 HP, 110 kW) AUDI A1 Sportback (8XA, 8XF) (09.2011 - 10.2018) 1.0 TFSI (82 HP, 60 kW) AUDI A1 Sportback (8XA, 8XF) (09.2011 - 10.2018) 1.0 TFSI (95 HP, 70 kW) AUDI A1 Sportback (GBA) (07.2018 - ) 25 TFSI (95 HP, 70 kW) AUDI A1 Sportback (GBA) (07.2018 - ) 30 TFSI (110 HP, 81 kW) AUDI A1 Sportback (GBA) (07.2018 - ) 30 TFSI (116 HP, 85 kW) AUDI A1 Sportback (GBA) (07.2018 - ) 35 TFSI (150 HP, 110 kW) AUDI A3 (8V1, 8VK) (09.2012 - 08.2016) 1.0 TFSI (115 HP, 85 kW) AUDI A3 (8V1, 8VK) (09.2012 - 08.2016) 1.5 TFSI (150 HP, 110 kW) AUDI A3 Cabriolet (8V7, 8VE) (10.2013 - 10.2018) 1.5 TFSI (150 HP, 110 kW) AUDI A3 Cabriolet (8V7, 8VE) (10.2013 - 10.2018) 35 TFSI (150 HP, 110 kW) AUDI A3 Sedan (8VS, 8VM) (05.2013 - 07.2019) 1.0 TFSI (115 HP, 85 kW) AUDI A3 Sedan (8VS, 8VM) (05.2013 - 07.2019) 1.5 TFSI (150 HP, 110 kW) AUDI A3 Sedan (8VS, 8VM) (05.2013 - 07.2019) 30 TFSI (115 HP, 85 kW) AUDI A3 Sedan (8VS, 8VM) (05.2013 - 07.2019) 35 TFSI (150 HP, 110 kW) AUDI A3 Sedan (8YS) (04.2020 - ) 30 TFSI (110 HP, 81 kW) AUDI A3 Sedan (8YS) (04.2020 - ) 35 TFSI (150 HP, 110 kW) AUDI A3 Sportback (8VA, 8VF) (09.2012 - 07.2018) 1.0 TFSI (115 HP, 85 kW) AUDI A3 Sportback (8VA, 8VF) (09.2012 - 07.2018) 1.5 TFSI (150 HP, 110 kW) AUDI A3 Sportback (8VA, 8VF) (09.2012 - 07.2018) 30 TFSI (116 HP, 85 kW) AUDI A3 Sportback (8VA, 8VF) (09.2012 - 07.2018) 35 TFSI (150 HP, 110 kW) AUDI A3 Sportback (8YA) (11.2019 - ) 30 TFSI (110 HP, 81 kW) AUDI A3 Sportback (8YA) (11.2019 - ) 30 TFSI Mild Hybrid (110 HP, 81 kW) AUDI A3 Sportback (8YA) (11.2019 - ) 35 TFSI (150 HP, 110 kW) AUDI Q2 (GAB, GAG) (06.2016 - 10.2018) 1.0 TFSI (115 HP, 85 kW) AUDI Q2 (GAB, GAG) (06.2016 - 10.2018) 30 TFSI (110 HP, 81 kW) AUDI Q2 (GAB, GAG) (06.2016 - 10.2018) 30 TFSI (115 HP, 85 kW) AUDI Q2 (GAB, GAG) (06.2016 - 10.2018) 35 TFSI (150 HP, 110 kW) AUDI Q3 (F3B) (07.2018 - ) 35 TFSI (150 HP, 110 kW) AUDI Q3 Sportback (F3N) (06.2019 - ) 35 TFSI (150 HP, 110 kW) SEAT ARONA (KJ7) (07.2017 - ) 1.0 TSI (110 HP, 81 kW) SEAT ARONA (KJ7) (07.2017 - ) 1.0 TSI (115 HP, 85 kW) SEAT ARONA (KJ7) (07.2017 - ) 1.0 TSI (95 HP, 70 kW) SEAT ARONA (KJ7) (07.2017 - ) 1.5 TSI (150 HP, 110 kW) SEAT ATECA (KH7, KHP) (04.2016 - ) 1.0 TSI (110 HP, 81 kW) SEAT ATECA (KH7, KHP) (04.2016 - ) 1.0 TSI (115 HP, 85 kW) SEAT ATECA (KH7, KHP) (04.2016 - ) 1.5 TSI (150 HP, 110 kW) SEAT ATECA (KH7, KHP) (04.2016 - ) 1.5 TSI 4Drive (150 HP, 110 kW) SEAT IBIZA IV (6J5, 6P1) (03.2008 - 12.2017) 1.0 TSI (110 HP, 81 kW) SEAT IBIZA IV (6J5, 6P1) (03.2008 - 12.2017) 1.0 TSI (95 HP, 70 kW) SEAT IBIZA IV SC (6J1, 6P5) (06.2008 - 12.2017) 1.0 TSI (110 HP, 81 kW) SEAT IBIZA IV SC (6J1, 6P5) (06.2008 - 12.2017) 1.0 TSI (95 HP, 70 kW) SEAT IBIZA IV ST (6J8, 6P8) (03.2010 - 07.2016) 1.0 TSI (110 HP, 81 kW) SEAT IBIZA IV ST (6J8, 6P8) (03.2010 - 07.2016) 1.0 TSI (95 HP, 70 kW) SEAT IBIZA V (KJ1) (01.2017 - ) 1.0 TSI (110 HP, 81 kW) SEAT IBIZA V (KJ1) (01.2017 - ) 1.0 TSI (115 HP, 85 kW) SEAT IBIZA V (KJ1) (01.2017 - ) 1.0 TSI (95 HP, 70 kW) SEAT IBIZA V (KJ1) (01.2017 - ) 1.5 TSI (150 HP, 110 kW) SEAT LEON (5F1) (09.2012 - ) 1.0 TSI (115 HP, 85 kW) SEAT LEON (5F1) (09.2012 - ) 1.0 TSi (86 HP, 63 kW) SEAT LEON (5F1) (09.2012 - ) 1.5 TSI (150 HP, 110 kW) SEAT LEON (KL1) (11.2019 - ) 1.0 TSI (110 HP, 81 kW) SEAT LEON (KL1) (11.2019 - ) 1.0 TSI (90 HP, 66 kW) SEAT LEON (KL1) (11.2019 - ) 1.5 TSI (150 HP, 110 kW) SEAT LEON Box Body/Hatchback (5F1) (09.2012 - 10.2016) 1.0 TSI (115 HP, 85 kW) SEAT LEON SC (5F5) (01.2013 - 12.2018) 1.0 TSI (115 hp, 85 kW) SEAT LEON ST (5F8) (09.2012 - ) 1.0 TSI (115 HP, 85 kW) SEAT LEON ST (5F8) (09.2012 - ) 1.0 TSi (86 HP, 63 kW) SEAT LEON ST (5F8) (09.2012 - ) 1.5 TSI (150 HP, 110 kW) SEAT LEON ST Box Body/Estate (5F8) (01.2013 - ) 1.0 TSI (115 HP, 85 kW) SEAT LEON Sportstourer (KL8) (03.2020 - ) 1.0 TSI (110 HP, 81 kW) SEAT LEON Sportstourer (KL8) (03.2020 - ) 1.0 TSI (90 HP, 66 kW) SEAT LEON sports tourer (KL8) (03.2020 - ) 1.5 TSI (150 HP, 110 kW) SEAT TARRACO (KN2) (09.2018 - ) 1.5 TSI ACT (150 HP, 110 kW) SEAT TOLEDO IV (KG3) (07.2012 - 04.2019) 1.0 TSI (110 HP, 81 kW) SEAT TOLEDO IV (KG3) (07.2012 - 04.2019) 1.0 TSI (95 HP, 70 kW) SKODA FABIA III (NJ3) (08.2014 - ) 1.0 TSI (110 HP, 81 kW) SKODA FABIA III (NJ3) (08.2014 - ) 1.0 TSI (95 HP, 70 kW) SKODA FABIA III Estate (NJ5) (08.2014 - ) 1.0 TSI (110 HP, 81 kW) SKODA FABIA III Estate (NJ5) (08.2014 - ) 1.0 TSI (95 HP, 70 kW) SKODA KAMIQ (NW4) (07.2019 - ) 1.0 TSI (110 HP, 81 kW) SKODA KAMIQ (NW4) (07.2019 - ) 1.0 TSI (115 HP, 85 kW) SKODA KAMIQ (NW4) (07.2019 - ) 1.0 TSI (95 HP, 70 kW) SKODA KAMIQ (NW4) (07.2019 - ) 1.5 TSI (150 HP, 110 kW) SKODA KAROQ (NU7) (07.2017 - ) 1.0 TSI (110 HP, 81 kW) SKODA KAROQ (NU7) (07.2017 - ) 1.0 TSI (115 HP, 85 kW) SKODA KAROQ (NU7) (07.2017 - ) 1.5 TSI (150 HP, 110 kW) SKODA KAROQ (NU7) (07.2017 - ) 1.5 TSI 4x4 (150 HP, 110 kW) SKODA KODIAQ (NS7, NV7) (10.2016 - ) 1.5 TSI (150 HP, 110 kW) SKODA KODIAQ (NS7, NV7) (10.2016 - ) 1.5 TSI 4x4 (150 hp, 110 kW) SKODA OCTAVIA IV (5E3, NL3, NR3) (11.2012 - 02.2017) 1.0 TSI (115 HP, 85 kW) SKODA OCTAVIA IV (5E3, NL3, NR3) (11.2012 - 02.2017) 1.5 TSI (150 HP, 110 kW) SKODA OCTAVIA IV Combi (5E5, 5E6) (11.2012 - 02.2017) 1.0 TSI (115 HP, 85 kW) SKODA OCTAVIA IV Combi (5E5, 5E6) (11.2012 - 02.2017) 1.5 TSI (150 HP, 110 kW) SKODA OCTAVIA V (NX3) (01.2020 - ) 1.0 TSI (110 HP, 81 kW) SKODA OCTAVIA V (NX3) (01.2020 - ) 1.0 TSI e-TEC (110 HP, 81 kW) SKODA OCTAVIA V (NX3) (01.2020 - ) 1.5 TSI (150 HP, 110 kW) SKODA OCTAVIA V Combi (NX5) (11.2019 - ) 1.0 TSI (110 HP, 81 kW) SKODA OCTAVIA V Combi (NX5) (11.2019 - ) 1.0 TSI e-TEC (110 HP, 81 kW) SKODA OCTAVIA V Combi (NX5) (11.2019 - ) 1.5 TSI (150 HP, 110 kW) SKODA RAPID (NH3) (07.2012 - 12.2019) 1.0 TSI (110 HP, 81 kW) SKODA RAPID (NH3) (07.2012 - 12.2019) 1.0 TSI (95 HP, 70 kW) SKODA RAPID Spaceback (NH1) (07.2012 - 12.2019) 1.0 TSI (110 HP, 81 kW) SKODA RAPID Spaceback (NH1) (07.2012 - 12.2019) 1.0 TSI (95 HP, 70 kW) SKODA SCALA (NW1) (02.2019 - ) 1.0 TSI (110 HP, 81 kW) SKODA SCALA (NW1) (02.2019 - ) 1.0 TSI (116 HP, 85 kW) SKODA SCALA (NW1) (02.2019 - ) 1.0 TSI (95 HP, 70 kW) SKODA SCALA (NW1) (02.2019 - ) 1.5 TSI (150 HP, 110 kW) SKODA SUPERB III (3V3) (03.2015 - ) 1.5 TSI (150 HP, 110 kW) SKODA SUPERB III (3V3) (03.2015 - ) 1.5 TSi 4x4 (150 hp, 110 kW) SKODA SUPERB III Estate (3V5) (03.2015 - ) 1.5 TSi (150 HP, 110 kW) VW ARTEON (3H7, 3H8) (03.2017 - 07.2020) 1.5 TSI (150 hp, 110 kW) VW ARTEON SHOOTING BRAKE (3H9) (06.2020 - ) 1.5 TSI (150 hp, 110 kW) VW CADDY ALLTRACK MPV (SAB) (05.2015 - 11.2017) 1.0 TSI (102 hp, 75 kW) VW CADDY ALLTRACK MPV (SAB) (05.2015 - 11.2017) 1.0 TSI (84 hp, 62 kW) VW CADDY ALLTRACK Panel Van/MPV (SAA) (05.2015 - 11.2017) 1.0 TSI (102 hp, 75 kW) VW CADDY CALIFORNIA V Camper (SBB, SBJ) (01.2021 - 12.2024) 1.5 TSI EVO (114 hp, 84 kW) VW CADDY IV MPV (SAB, SAJ) (05.2015 - 11.2017) 1.0 TSI (102 hp, 75 kW) VW CADDY IV MPV (SAB, SAJ) (05.2015 - 11.2017) 1.0 TSI (84 hp, 62 kW) VW CADDY IV Panel Van/MPV (SAA, SAH) (05.2015 - 11.2017) 1.0 TSI (102 hp, 75 kW) VW CADDY V VW Caddy V MPV (SBB, SBJ) (09.2020 - ) TSI EVO (114 hp, 84 kW) VW Caddy V Panel Van/MPV (SBA, SBH) (09.2020 - ) TSI EVO (114 hp, 84 kW) VW Golf Sportsvan VII (AM1, AN1) (02.2014 - 11.2017) 1.0 TSI (110 hp, 81 kW) VW Golf Sportsvan VII (AM1, AN1) (02.2014 - 11.2017) 1.0 TSI (115 hp, 85 kW) VW GOLF SPORTSVAN VII (AM1, AN1) (02.2014 - 11.2017) 1.0 TSI (86 HP, 63 kW) VW GOLF SPORTSVAN VII (AM1, AN1) (02.2014 - 11.2017) 1.5 TSI (150 HP, 110 kW) VW GOLF VII (5G1, BQ1, BE1, BE2) (08.2012 - 05.2019) 1.0 TSI (110 HP, 81 kW) VW GOLF VII (5G1, BQ1, BE1, BE2) (08.2012 - 05.2019) 1.0 TSI (115 HP, 85 kW) VW GOLF VII (5G1, BQ1, BE1, BE2) (08.2012 - 05.2019) 1.0 TSI (86 HP, 63 kW) VW GOLF VII (5G1, BQ1, BE1, BE2) (08.2012 - 05.2019) 1.5 TSI (150 HP, 110 kW) VW GOLF VII Variant (BA5, BV5) (04.2013 - 05.2018) 1.0 TSI (110 HP, 81 kW) VW GOLF VII Variant (BA5, BV5) (04.2013 - 05.2018) 1.0 TSI (115 HP, 85 kW) VW GOLF VII Variant (BA5, BV5) (04.2013 - 05.2018) 1.0 TSI (86 HP, 63 kW) VW GOLF VII Variant (BA5, BV5) (04.2013 - 05.2018) 1.5 TSI (150 HP, 110 kW) VW GOLF VIII (CD1) (07.2019 - ) 1.0 TSI (110 HP, 81 kW) VW GOLF VIII (CD1) (07.2019 - ) 1.0 TSI (90 HP, 66 kW) VW GOLF VIII (CD1) (07.2019 - ) 1.0 eTSI (110 HP, 81 kW) VW GOLF VIII (CD1) (07.2019 - ) 1.5 TSI (150 HP, 110 kW) VW GOLF VIII Variant (CG5) (08.2020 - ) 1.0 TSI (110 HP, 81 kW) VW GOLF VIII Variant (CG5) (08.2020 - ) 1.0 TSI (90 HP, 66 kW) VW GOLF VIII Variant (CG5) (08.2020 - ) 1.0 eTSI (110 HP, 81 kW) VW GOLF VIII Variant (CG5) (08.2020 - ) 1.5 TSI (150 HP, 110 kW) VW GOLF VIII Variant (CG5) (08.2020 - ) 1.5 eTSI (150 HP, 110 kW) VW LOAD UP (121, 122, BL1, BL2) (12.2014 - 08.2020) 1.0 TSi BlueMotion (90 HP, 66 kW) VW PASSAT B8 (3G2, CB2) (08.2014 - 11.2017) 1.5 TSI (150 HP, 110 kW) VW PASSAT B8 Variant (3G5, CB5) (08.2014 - 11.2017) 1.5 TSI (150 HP, 110 kW) VW POLO V (6R1, 6C1) (03.2009 - 03.2020) 1.0 TSI (110 HP, 81 kW) VW POLO V (6R1, 6C1) (03.2009 - 03.2020) 1.0 TSI (95 HP, 70 kW) VW POLO VI (AW1, BZ1) (06.2017 - ) 1.0 TSI (110 HP, 81 kW) VW POLO VI (AW1, BZ1) (06.2017 - ) 1.0 TSI (115 HP, 85 kW) VW POLO VI (AW1, BZ1) (06.2017 - ) 1.0 TSI (95 HP, 70 kW) VW POLO VI (AW1, BZ1) (06.2017 - ) 1.5 TSI (150 HP, 110 kW) VW POLO Van (6R) (03.2009 - 05.2014) 1.0 TSI (95 HP, 70 kW) VW POLO Van (6R) (11.2014 - 10.2017) 1.0 TSI (110 HP, 81 kW) VW T-CROSS (C11) (12.2018 - ) 1.0 TSI (110 HP, 81 kW) VW T-CROSS (C11) (12.2018 - ) 1.0 TSi (116 HP, 85 kW) VW T-CROSS (C11) (12.2018 - ) 1.0 TSi (95 HP, 70 kW) VW T-CROSS (C11) (12.2018 - ) 1.5 TSI (150 HP, 110 kW) VW T-ROC (A11) (07.2017 - ) 1.0 TSI (110 HP, 81 kW) VW T-ROC (A11) (07.2017 - ) 1.0 TSI (115 HP, 85 kW) VW T-ROC (A11) (07.2017 - ) 1.0 TSI 4motion (115 HP, 85 kW) VW T-ROC (A11) (07.2017 - ) 1.5 TSI (150 HP, 110 kW) VW T-ROC (A11) (07.2017 - ) 1.5 TSI 4motion (150 HP, 110 kW) VW T-ROC Cabriolet (AC7) (12.2019 - ) 1.0 TSI (110 HP, 81 kW) VW T-ROC Cabriolet (AC7) (12.2019 - ) 1.0 TSI (116 HP, 85 kW) VW T-ROC Cabriolet (AC7) (12.2019 - ) 1.5 TSI (150 HP, 110 kW) VW TAIGO (CS1) (11.2021 - 12.2024) 1.0 TSI (110 HP, 81 kW) VW TAIGO (CS1) (11.2021 - 12.2024) 1.0 TSI (95 HP, 70 kW) VW TAIGO (CS1) (11.2021 - 12.2024) 1.5 TSI (150 HP, 110 kW) VW TIGUAN (5N_) (09.2007 - 07.2018) 1.5 (150 HP, 110 kW) VW TIGUAN (AD1, AX1) (01.2016 - 07.2020) 1.5 TSI (150 HP, 110 kW) VW TIGUAN ALLSPACE (BW2) (03.2017 - ) 1.5 TSI (150 HP, 110 kW) VW TOURAN (5T1) (05.2015 - 07.2019) 1.5 TSI (150 HP, 110 kW) VW UP! (121, 122, BL1, BL2, BL3, 123) (08.2011 - 08.2020) 1.0 GTI (115 HP, 85 kW) VW UP! (121, 122, BL1, BL2, BL3, 123) (08.2011 - 08.2020) 1.0 TSI (90 HP, 66 kW)
