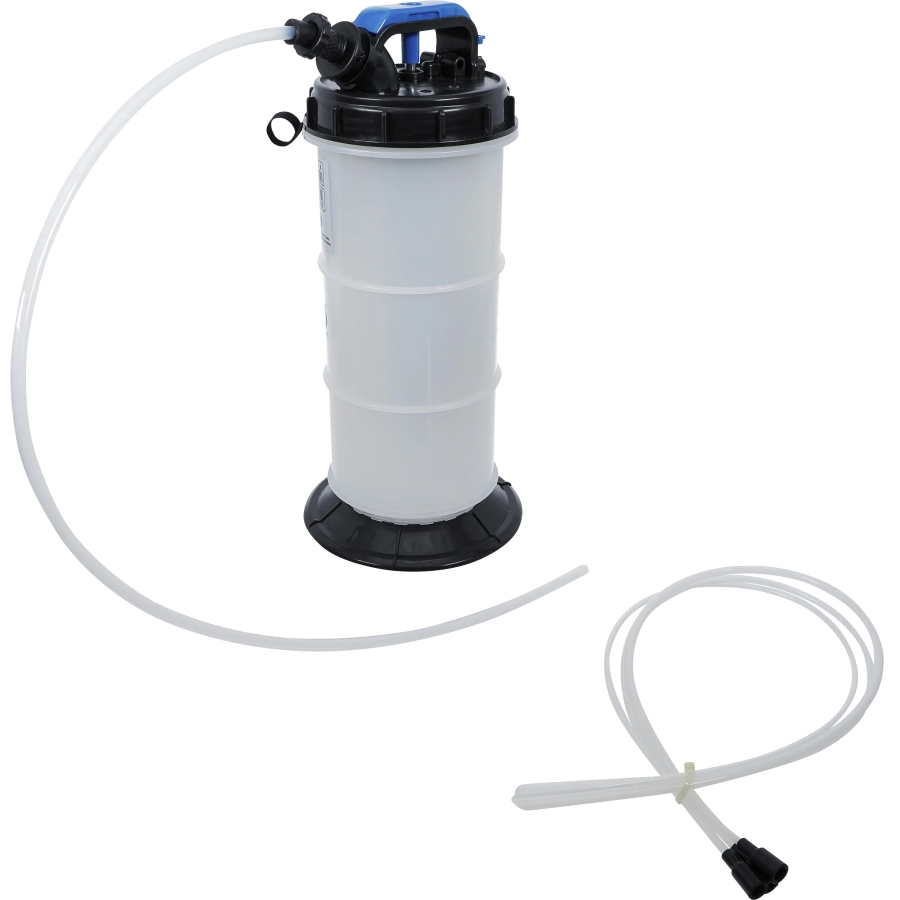

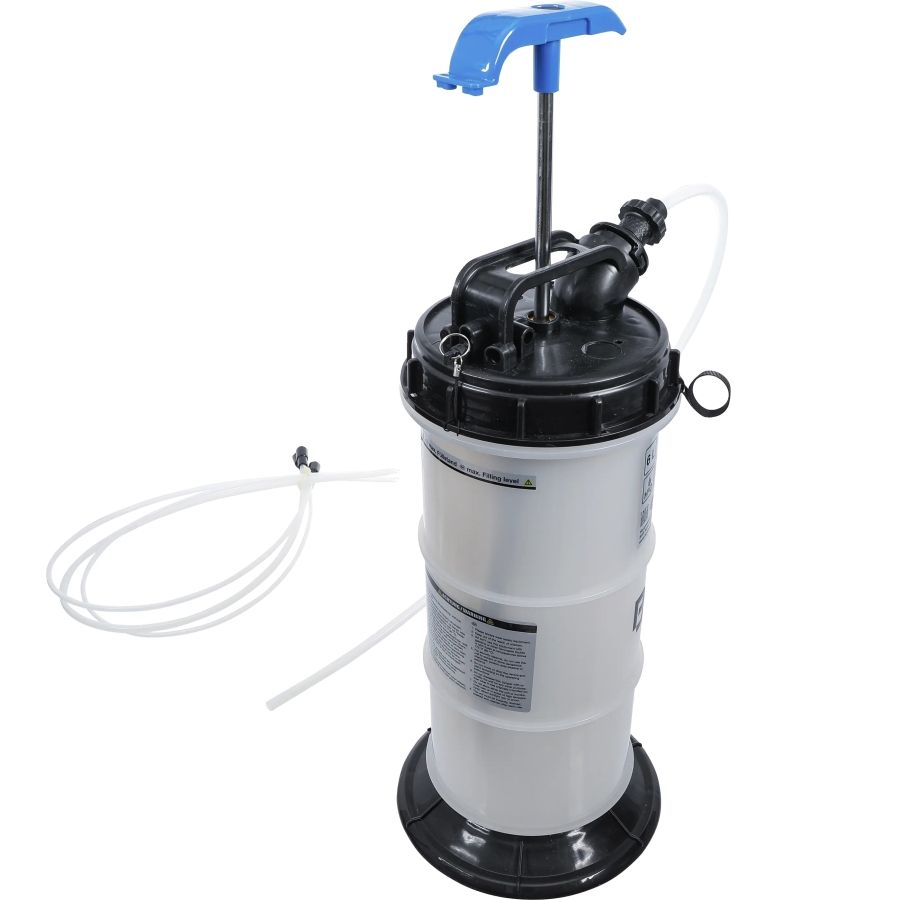

Manual Vacuum Fluid Extractor, 6 L

This manual vacuum fluid extractor is designed for the clean and efficient extraction of engine oils, transmission oils and other automotive fluids from cars, motorcycles, marine engines and industrial machinery.

The integrated hand pump generates a vacuum for quick and effortless fluid extraction without the need for compressed air, making it ideal for workshop and mobile servicing applications.

Applications

Suitable for extracting:

• Engine oil
• Transmission oil
• Automatic transmission fluid (ATF)
• Coolant
• Brake fluid
• Water
• Other low-viscosity fluids

Features

• Manual vacuum operation
• Clean and efficient fluid extraction
• Suitable for extracting, transferring and emptying fluids
• High-quality pump body with reinforced pump head
• Includes multiple extraction probes for different applications
• Integrated pressure relief valve for increased safety
• Transparent reservoir for easy fluid level monitoring

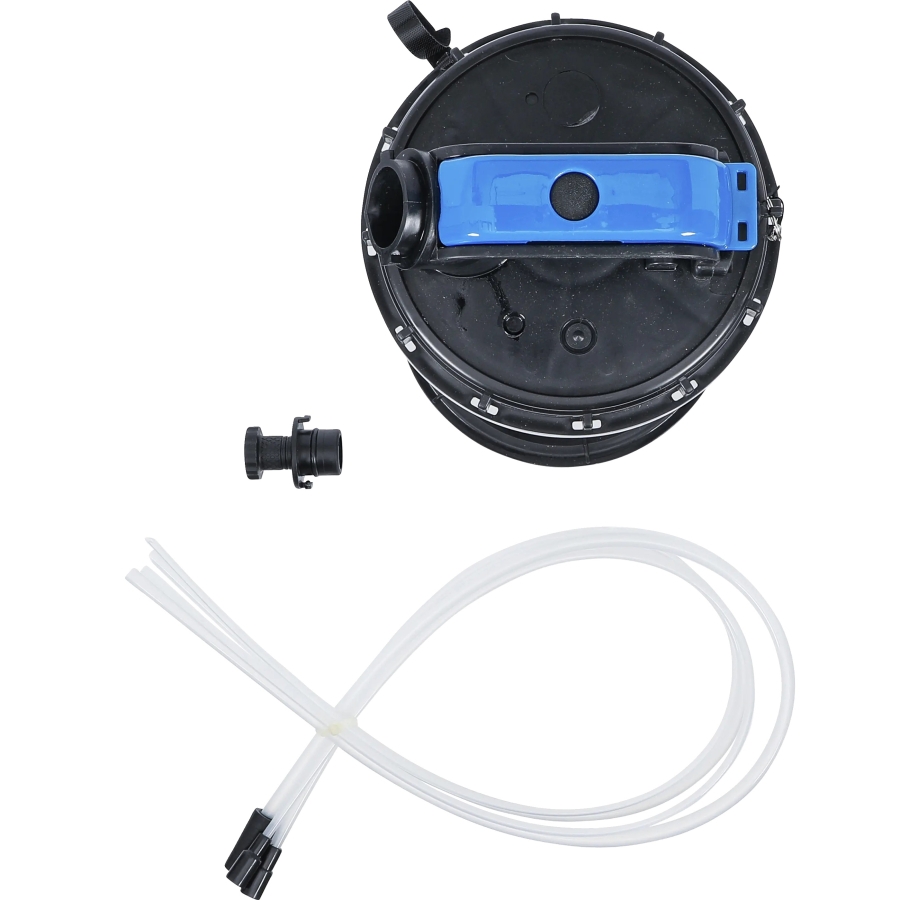

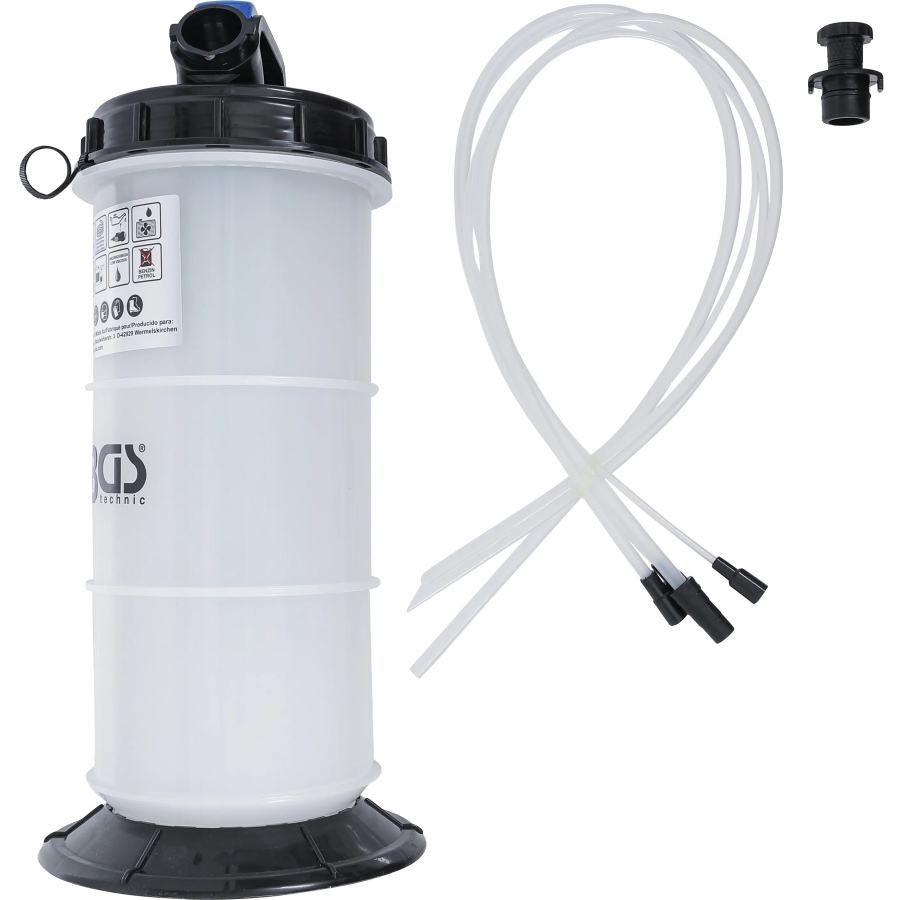

Scope of Delivery

• 1 × 6 L extraction tank with manual vacuum pump
• 1 × 5 mm dipstick extraction tube
• 1 × 6 mm dipstick extraction tube
• 1 × 8 mm extraction tube
• 1 × 10 mm main extraction hose

Specifications

• Capacity: 6 L
• Operation: Manual
• Vacuum generated by integrated hand pump

Assembly

• The main extraction tank is supplied fully assembled.
• Remove the unit and all accessories from the packaging.
• Check the parts list to ensure all components are included.
• Push the main suction hose into the suction port on the tank lid until it fits securely. The O-ring holds the hose firmly in place during operation.
• Ensure the tank lid is securely fastened to the container.

Preparation

• Park the vehicle on a level surface free from obstacles.
• Shift the transmission into Park or Neutral and apply the parking brake.
• For engine oil extraction, start the engine and allow it to reach normal operating temperature, then switch it off.
• Note: When extracting coolant, do not warm up the engine. Allow the engine to cool completely before beginning the procedure.

Engine Oil Extraction Through the Dipstick Tube

• Select the largest extraction tube that fits the vehicle's dipstick tube.
• Carefully insert the extraction tube into the dipstick tube until it reaches the bottom of the oil pan.
• Note: Do not kink or bend the extraction tube while inserting it.
• Connect the extraction tube to the main suction hose.
• Ensure all hose connections are secure to prevent air leaks during operation.
• Push the main suction hose firmly into the suction port on the tank lid.
• Note: Before starting, verify that the vacuum release plug is fully inserted. If it is not properly seated, the system will not be able to generate vacuum.
• Operate the hand pump to generate vacuum inside the tank. The engine oil will be drawn through the suction hose into the extraction tank until the oil has been completely removed or the tank reaches its maximum capacity.

After Use

• Disconnect the main suction hose from the extraction tube.
• Remove the main suction hose from the tank lid.
• Pour the used engine oil into a suitable waste oil container.
• Dispose of used oil in accordance with all applicable local, regional, and national environmental regulations.
