Injector & Rail Sealing Kit M15x1
-
Code:123372A
-
Weight:0.207 Kgs
6-piece M15x1 sealing kit for reliable diagnostics of common rail injectors. Protects high-pressure connections from contamination and corrosion while identifying leaking injectors during pressure testing.
Estimated Shipping
outside Varna starts at
€4.13
to Varna starts at
€4.13
The Injector & Rail Sealing Kit M15x1 is designed to seal high-pressure line connections directly on injectors or the fuel rail during common rail system diagnostics. By isolating each injector, mechanics can quickly detect leaks without disassembling the entire system.
How It Works
During pressure testing of a common rail system, a leaking injector can be identified by disconnecting it from the fuel rail and sealing the open connection with a locking screw.
If the system maintains or reaches the desired fuel pressure, the injector is defective and requires repair or replacement. This method provides 100% reliable identification of dripping injectors.
Protects Against Contamination and Corrosion
In addition to its diagnostic function, the sealing plugs prevent dirt and corrosion when fuel lines are disconnected, protecting system components during testing.
Features
-
Reliable detection of faulty injectors
-
Protects high-pressure connections from dirt and corrosion
-
Easy and efficient to use
Compatibility
Suitable for vehicles with M15x1 common rail connections, including injectors and injection systems from:
-
Siemens
-
Bosch
-
Denso
-
Delphi
Package Contents
-

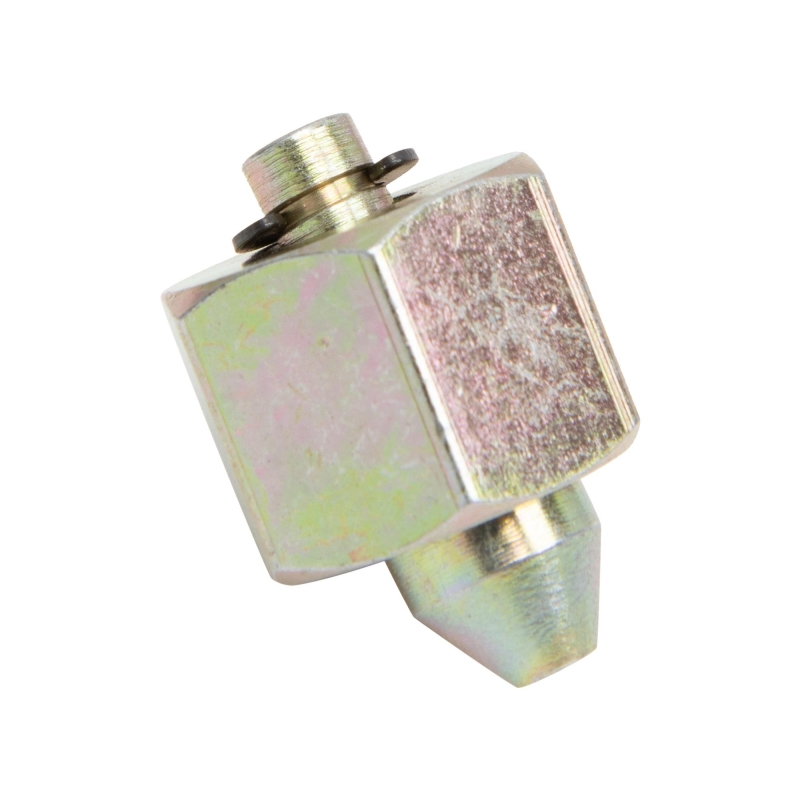

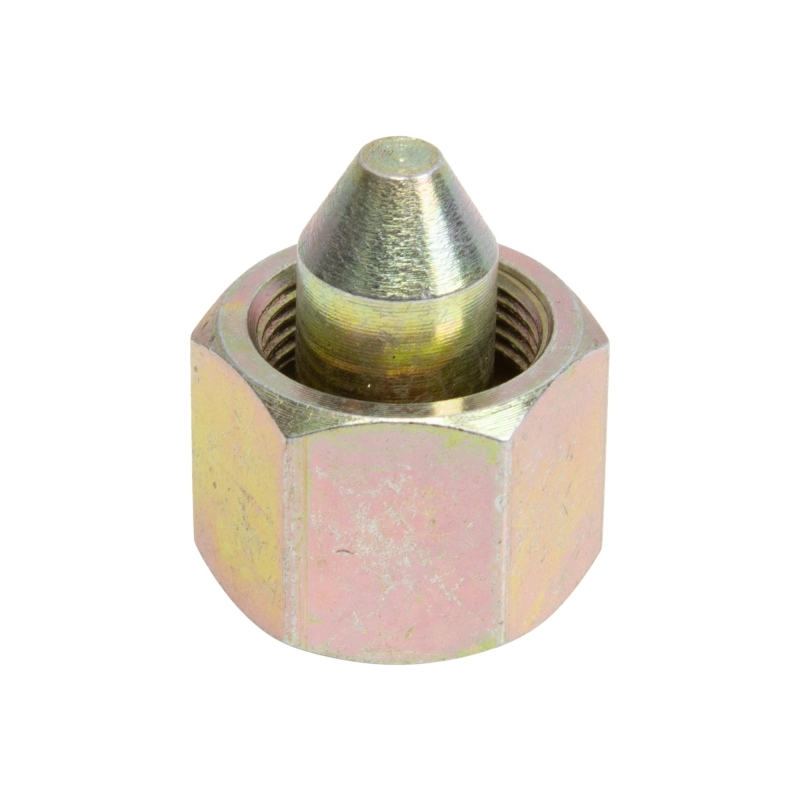

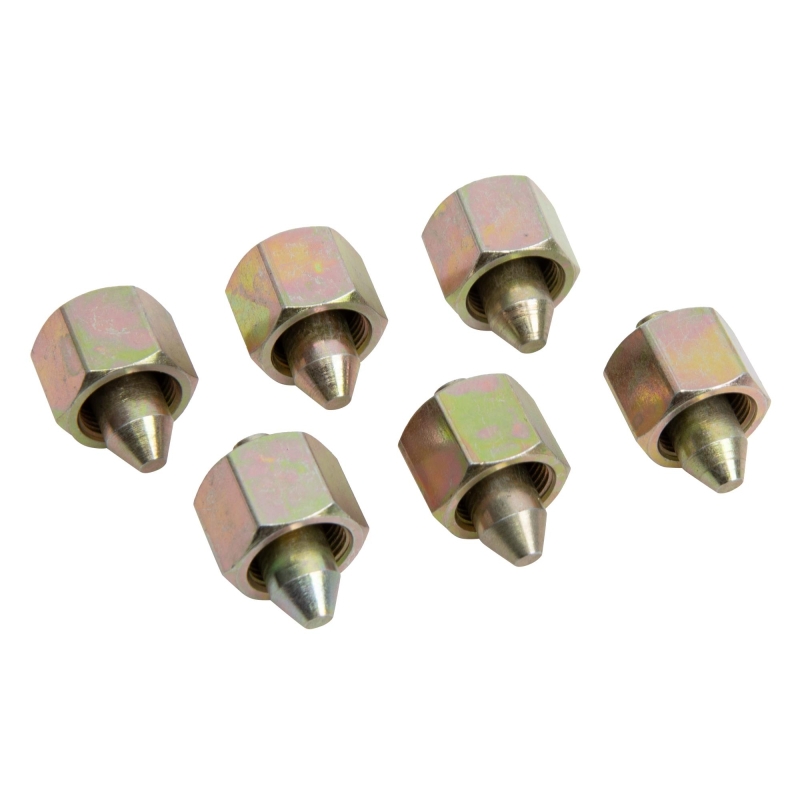

6 sealing plugs M15 x 1 (with internal sealing cone)
This tool is also included in the main article: Art-Nr. 113962A – Injection Pump High-Pressure Tester, Common Rail HD Tester, 2000 bar, with cover and full-load adapter.
