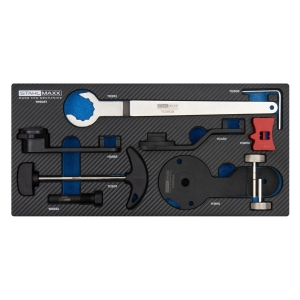

Engine Timing Tool Kit – VAG 1.0 / 1.2 / 1.4 / 1.6 MPI / TSI / TFSI / FSI / TGI

This professional engine timing tool kit is designed for service and repair operations on a wide range of VAG engines from Audi, Seat, Skoda, and Volkswagen.

It is specifically developed for accurate engine timing procedures such as timing belt replacement, camshaft alignment, and crankshaft positioning.

---

Functionality

The kit includes tools required to:

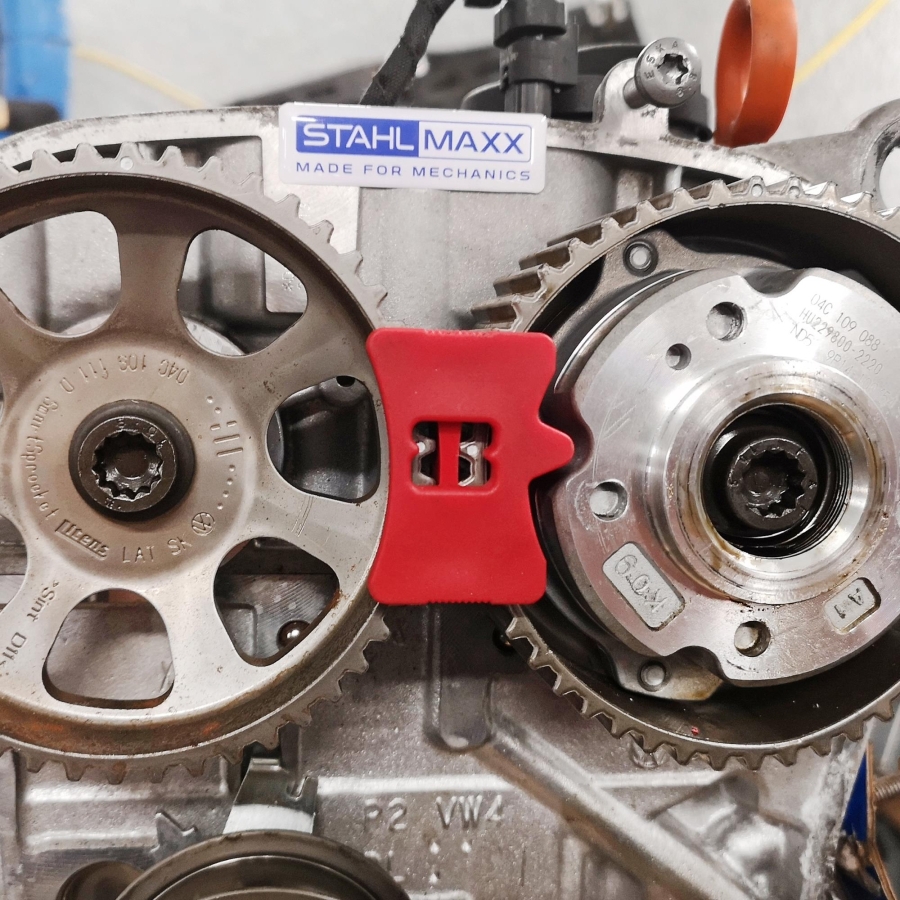

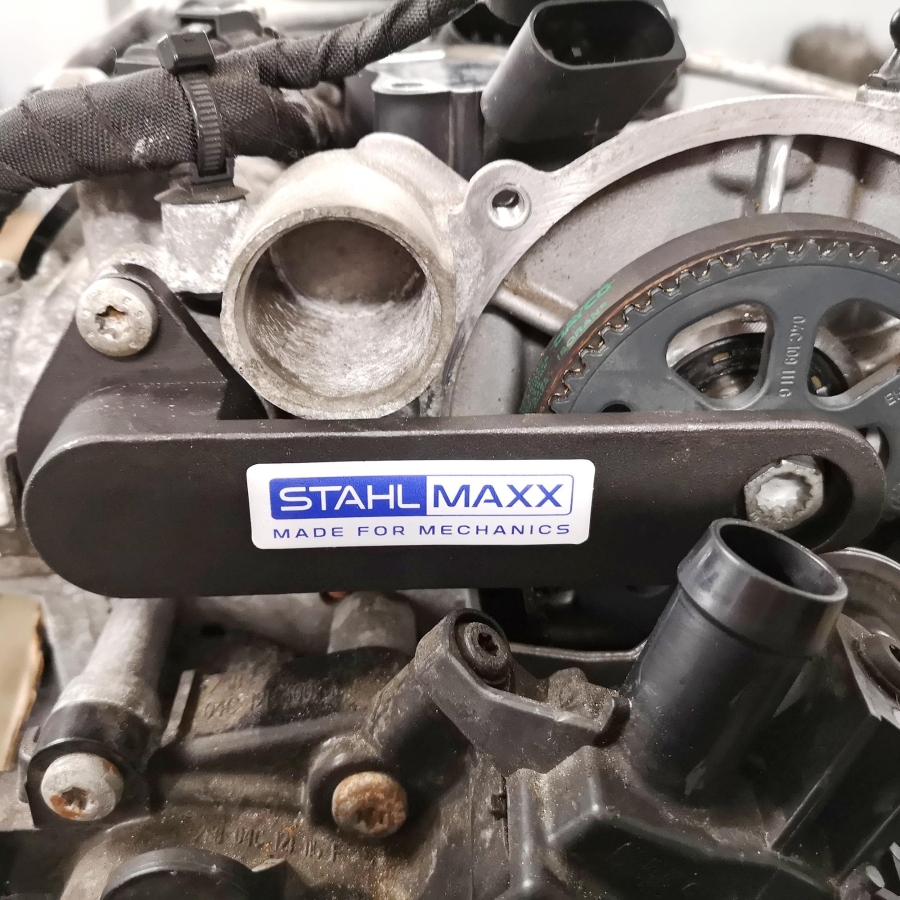

• Lock the camshaft

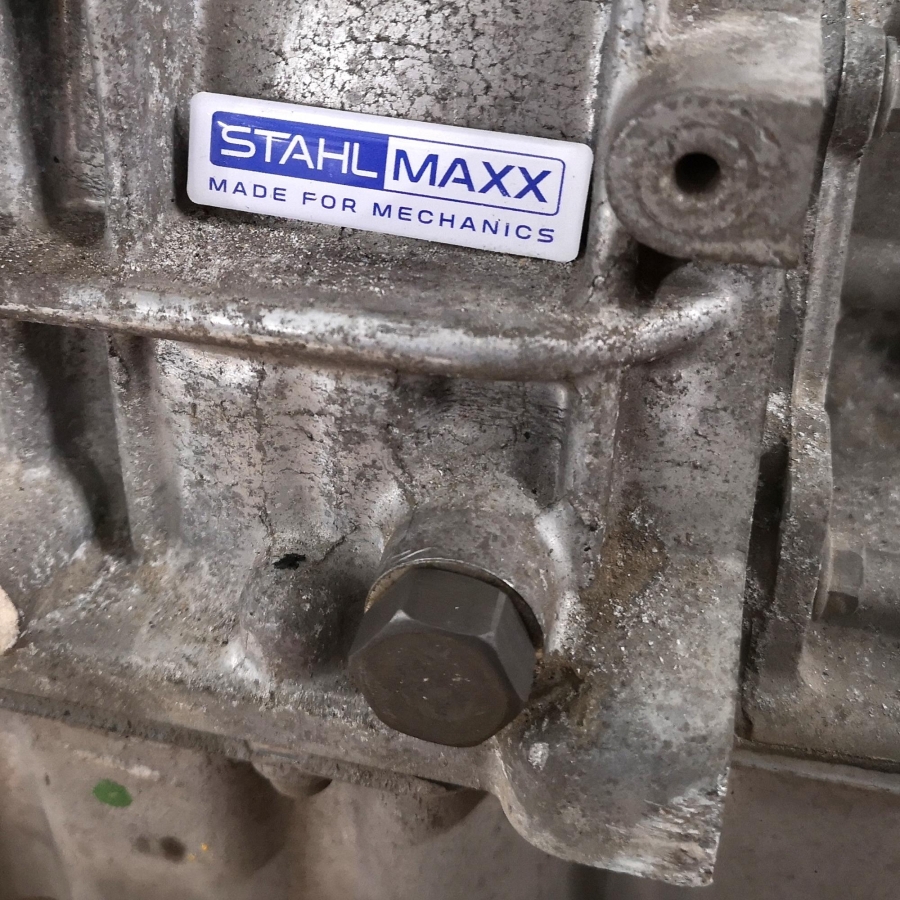

• Fix the crankshaft in position

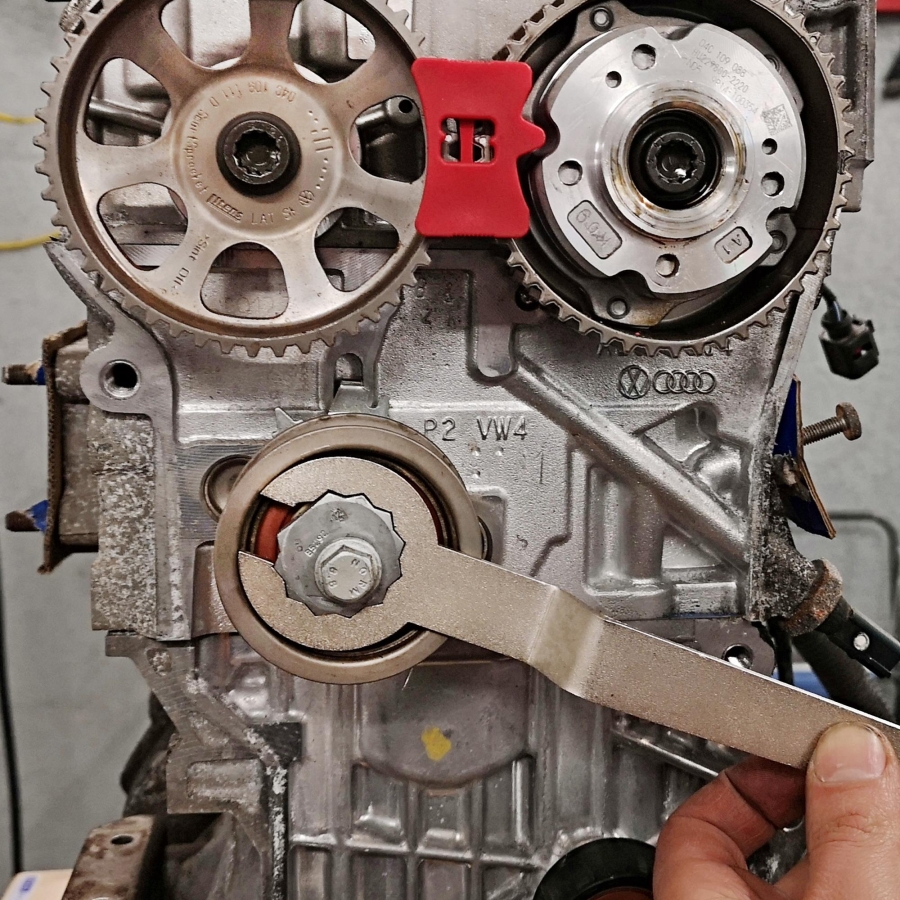

• Preload the timing belt tensioner
• Install and position camshaft locking tools
• Secure camshaft sprockets
• Lock auxiliary belt tensioners

This ensures precise engine timing alignment and reduces the risk of incorrect installation.

---

Important Notes

✔ Recommended additional tool: Intercooler hose clamp pliers – 118559

ATTENTION:
After removing the vibration damper, the crankshaft must not be rotated. Always set the engine to Top Dead Center (TDC) before proceeding.

---

Variants & Engine Codes

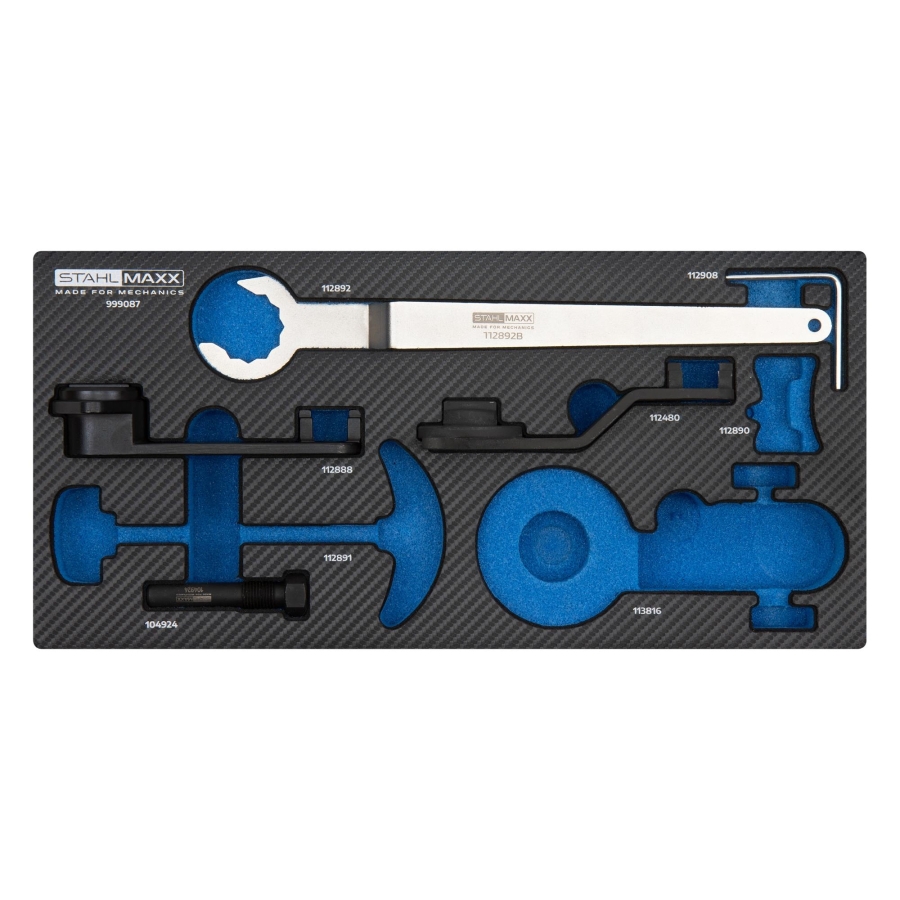

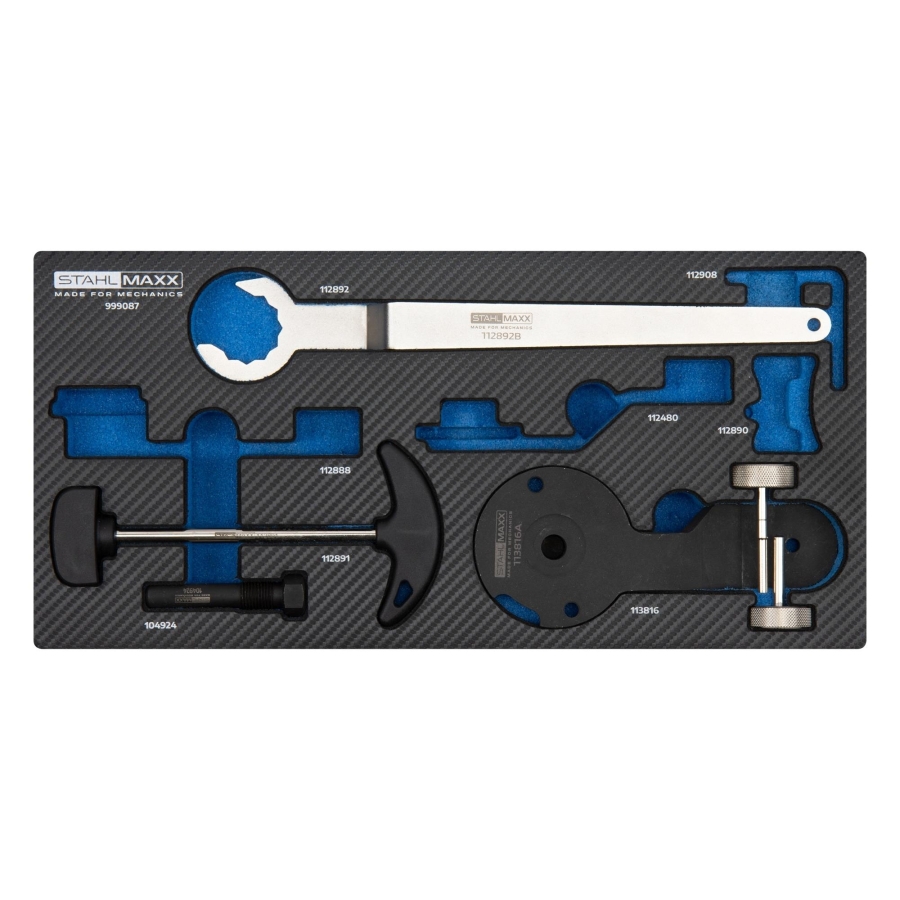

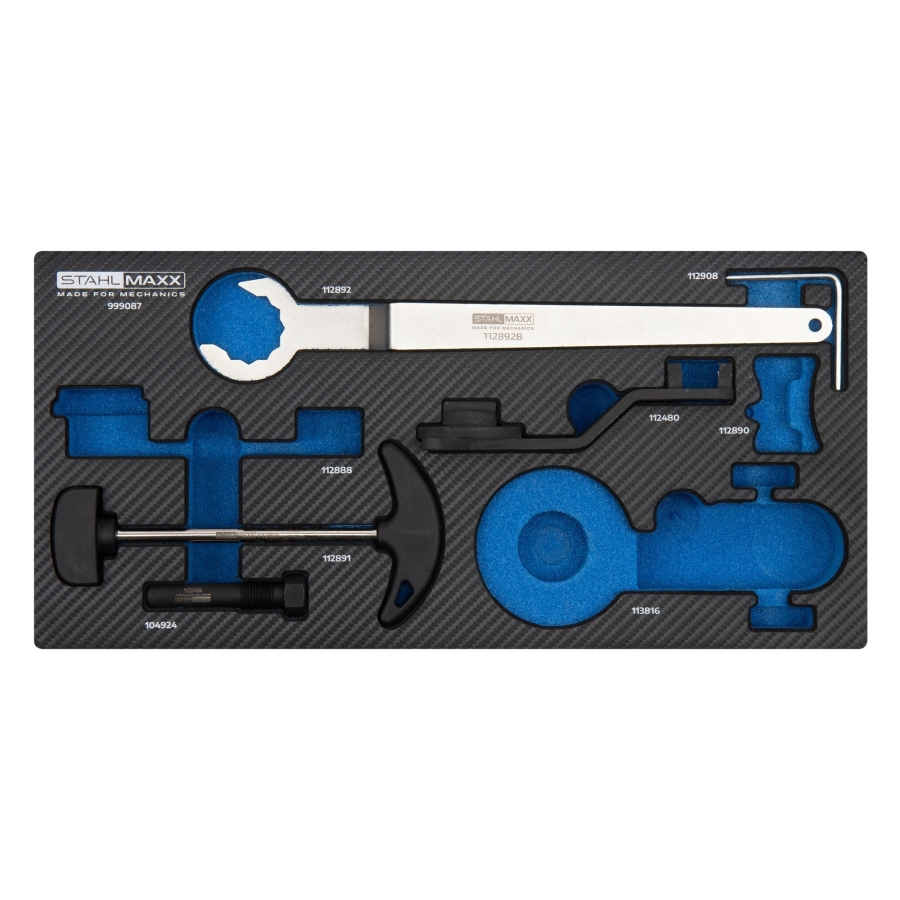

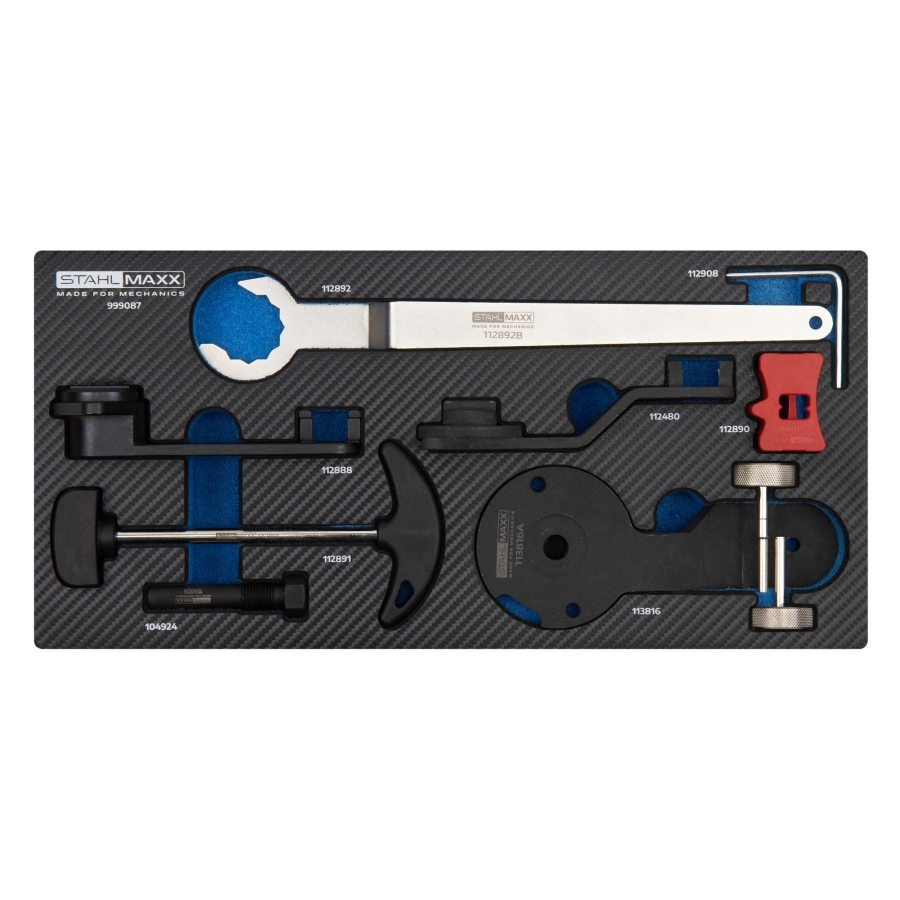

The complete kit XX999087 includes all tools from variants 1–4.

---

Variant 1 (999087-1)
For Audi / Seat / Skoda / VW – 1.0 & 1.6 MPI / TSI / TFSI / FSI / TGI

Engine codes:
CHYA, CHYB, CHZJ, CPGA, CWVA, CWVB, DAFA

---

Variant 2 (999087-2)
For Audi / Seat / Skoda / VW – 1.0 / 1.2 / 1.4 TFSI / FSI / TGI

1.0 TFSI:
CHZB, CHZC, CHZE, DKJA, DKLD, DKRF

1.2 TFSI / FSI / TGI:
CJZA, CJZB, CJZC, CJZD, CYVB, CYVD, CYVC

1.4 TFSI / FSI / TGI:
CHPA, CHPB, CMBA, CNLA, CPVA, CPVB, CPWA, CRJA, CUKA, CUKB, CUKC, CVNA, CXSA, CXSB, CXUA, CZCA, CZDA, CZDD (with 1 or 2 adjustable camshafts), DJVA

---

Variant 3 (999087-3)
For Audi / Seat / Skoda / VW – 1.4 TFSI

Engine codes:
CPTA, CZDB, CZDD (with dual camshaft adjustment & cylinder deactivation), CZEA

---

Variant 4 (999087-4)
For VW / Skoda – 1.6

Engine codes:
CWVA, CWVB

---

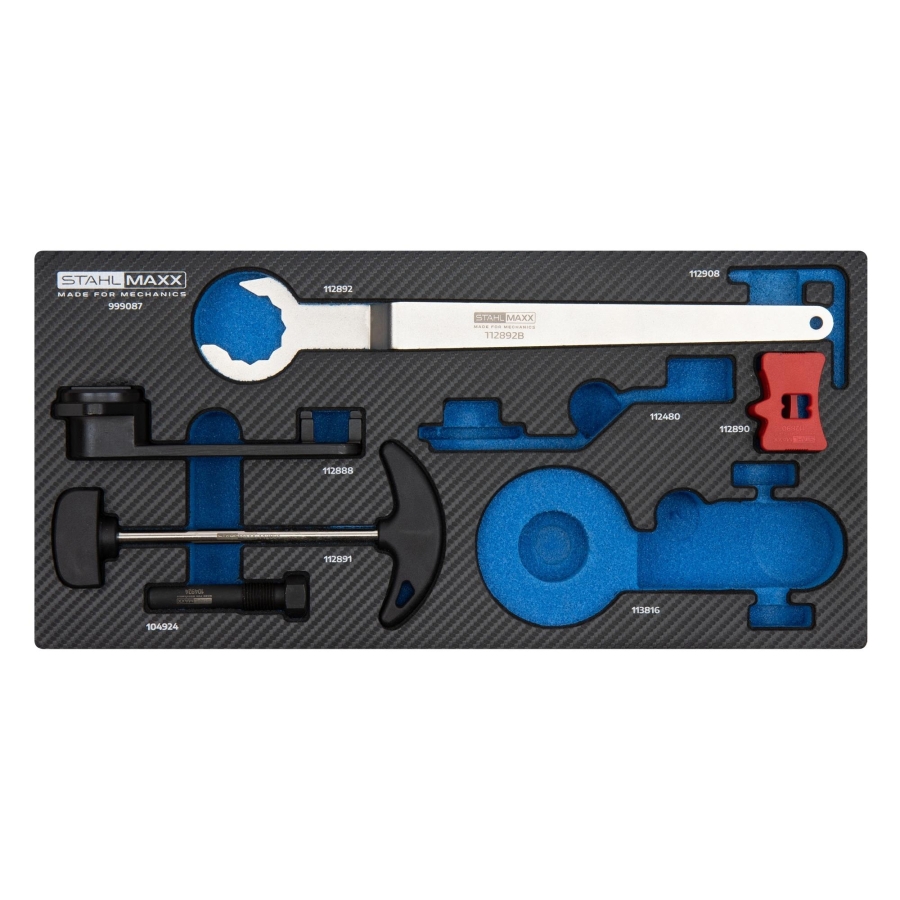

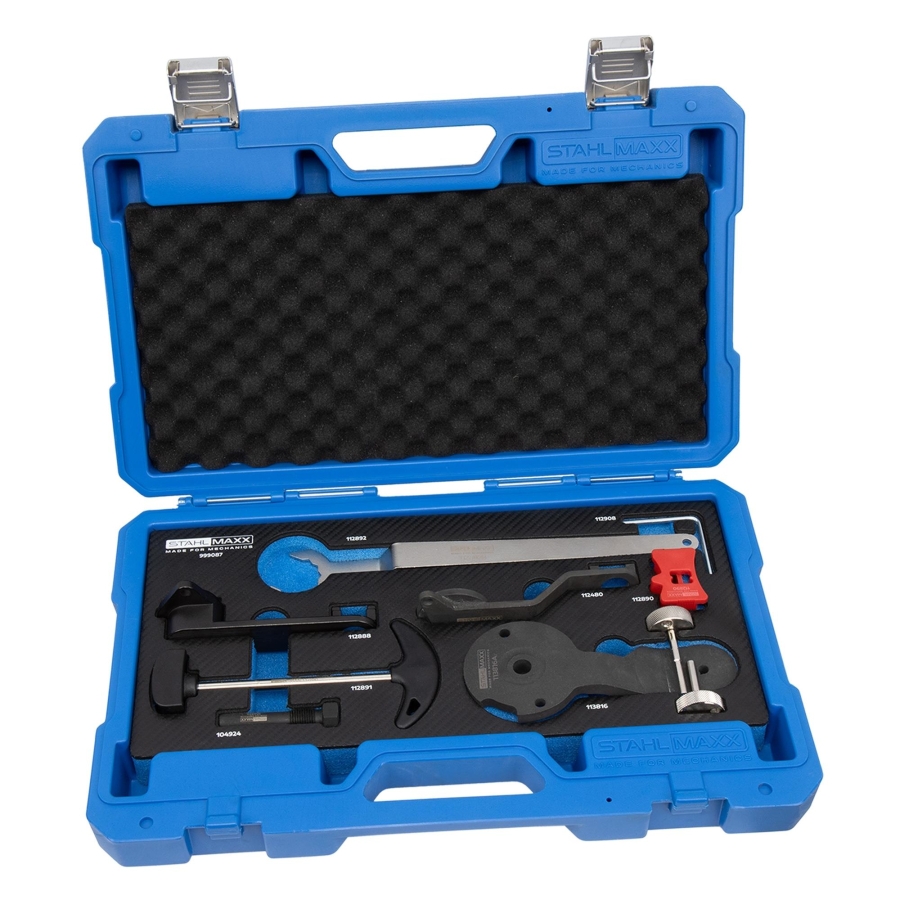

Scope of Delivery



OEM numbers are for reference purposes only. This is not an original tool.

AUDI A1 (8X1, 8XK) (05.2010 - 10.2018) 1.4 TFSI (125 HP, 92 kW)

AUDI A1 (8X1, 8XK) (05.2010 - 10.2018) 1.4 TFSI (140 HP, 103 kW)

AUDI A1 (8X1, 8XK) (05.2010 - 10.2018) 1.4 TSI (150 HP, 110 kW)

AUDI A1 CITY CARVER (GBH) (07.2019 - ) 30 TFSI (116 HP, 85 kW)

AUDI A1 Sportback (8XA, 8XF) (09.2011 - 10.2018) 1.4 TFSI (125 HP, 92 kW)

AUDI A1 Sportback (8XA, 8XF) (09.2011 - 10.2018) 1.4 TFSI (140 HP, 103 kW)

AUDI A1 Sportback (8XA, 8XF) (09.2011 - 10.2018) 1.4 TSI (150 HP, 110 kW)

AUDI A1 Sportback (GBA) (07.2018 - ) 25 TFSI (95 HP, 70 kW)

AUDI A1 Sportback (GBA) (07.2018 - ) 30 TFSI (116 HP, 85 kW)

AUDI A3 (8V1, 8VK) (09.2012 - 08.2016) 1.2 TFSI (105 HP, 77 kW)

AUDI A3 (8V1, 8VK) (09.2012 - 08.2016) 1.2 TFSI (110 HP, 81 kW)

AUDI A3 (8V1, 8VK) (09.2012 - 08.2016) 1.4 TFSI (122 HP, 90 kW)

AUDI A3 (8V1, 8VK) (09.2012 - 08.2016) 1.4 TFSI (125 HP, 92 kW)

AUDI A3 (8V1, 8VK) (09.2012 - 08.2016) 1.4 TFSI (140 HP, 103 kW)

AUDI A3 (8V1, 8VK) (09.2012 - 08.2016) 1.4 TSI (150 HP, 110 kW)

AUDI A3 Cabriolet (8V7, 8VE) (10.2013 - 10.2018) 1.4 TFSI (125 HP, 92 kW)

AUDI A3 Cabriolet (8V7, 8VE) (10.2013 - 10.2018) 1.4 TFSI (140 HP, 103 kW)

AUDI A3 Cabriolet (8V7, 8VE) (10.2013 - 10.2018) 1.4 TSI (150 HP, 110 kW)

AUDI A3 Sedan (8VS, 8VM) (05.2013 - 07.2019) 1.2 TFSI (105 HP, 77 kW)

AUDI A3 Sedan (8VS, 8VM) (05.2013 - 07.2019) 1.2 TFSI (110 HP, 81 kW)

AUDI A3 Sedan (8VS, 8VM) (05.2013 - 07.2019) 1.4 TFSI (122 HP, 90 kW)

AUDI A3 Sedan (8VS, 8VM) (05.2013 - 07.2019) 1.4 TFSI (125 HP, 92 kW)

AUDI A3 Sedan (8VS, 8VM) (05.2013 - 07.2019) 1.4 TFSI (140 HP, 103 kW)

AUDI A3 Sedan (8VS, 8VM) (05.2013 - 07.2019) 1.4 TFSI Flex (150 HP, 110 kW)

AUDI A3 Sedan (8VS, 8VM) (05.2013 - 07.2019) 1.4 TSI (150 HP, 110 kW)

AUDI A3 Sedan (8VS, 8VM) (05.2013 - 07.2019) 30 TFSI (115 HP, 85 kW)

AUDI A3 Sportback (8VA, 8VF) (09.2012 - 07.2018) 1.2 TFSI (105 HP, 77 kW)

AUDI A3 Sportback (8VA, 8VF) (09.2012 - 07.2018) 1.2 TFSI (110 HP, 81 kW)

AUDI A3 Sportback (8VA, 8VF) (09.2012 - 07.2018) 1.4 TFSI (122 HP, 90 kW)

AUDI A3 Sportback (8VA, 8VF) (09.2012 - 07.2018) 1.4 TFSI (125 HP, 92 kW)

AUDI A3 Sportback (8VA, 8VF) (09.2012 - 07.2018) 1.4 TFSI (140 HP, 103 kW)

AUDI A3 Sportback (8VA, 8VF) (09.2012 - 07.2018) 1.4 TFSI e-tron (150 HP, 110 kW)

AUDI A3 Sportback (8VA, 8VF) (09.2012 - 07.2018) 1.4 TFSI e-tron (204 HP, 150 kW)

AUDI A3 Sportback (8VA, 8VF) (09.2012 - 07.2018) 1.4 TFSI g-tron (110 HP, 81 kW)

AUDI A3 Sportback (8VA, 8VF) (09.2012 - 07.2018) 1.4 TSI (150 HP, 110 kW)

AUDI A3 Sportback (8VA, 8VF) (09.2012 - 07.2018) 30 TFSI (116 HP, 85 kW)

AUDI A4 B9 (8W2, 8WC) (05.2015 - 06.2021) 1.4 TFSI (150 HP, 110 kW)

AUDI A4 B9 Avant (8W5, 8WD) (08.2015 - 09.2020) 1.4 TFSI (150 HP, 110 kW)

AUDI A5 (F53, F5P) (06.2016 - 02.2020) 1.4 TFSI (150 HP, 110 kW)

AUDI A5 Sportback (F5A, F5F) (08.2016 - 02.2020) 1.4 TFSI (150 HP, 110 kW)

AUDI Q2 (GAB, GAG) (06.2016 - 10.2018) 1.4 TFSI (150 HP, 110 kW)

AUDI Q2 (GAB, GAG) (06.2016 - 10.2018) 30 TFSI (115 HP, 85 kW)

AUDI Q3 (8UB, 8UG) (06.2011 - 12.2018) 1.4 TFSI (125 HP, 92 kW)

AUDI Q3 (8UB, 8UG) (06.2011 - 12.2018) 1.4 TFSi Flex (150 HP, 110 kW)

AUDI Q3 (8UB, 8UG) (06.2011 - 12.2018) 1.4 TSI (150 HP, 110 kW)

AUDI Q3 (F3B) (07.2018 - ) 35 TFSI (150 HP, 110 kW)

AUDI Q3 Sportback (F3N) (06.2019 - ) 35 TFSI (150 HP, 110 kW)

SEAT ALHAMBRA (710, 711) (06.2010 - 05.2011) 1.4 TSI (150 HP, 110 kW)

SEAT ALHAMBRA VAN (711) (05.2015 - ) TSi (150 HP, 110 kW)

SEAT ARONA (KJ7) (07.2017 - ) 1.0 TSI (115 HP, 85 kW)

SEAT ARONA (KJ7) (07.2017 - ) 1.0 TSI (95 HP, 70 kW)

SEAT ARONA (KJ7) (07.2017 - ) 1.6 SRE (110 HP, 81 kW)

SEAT ATECA (KH7, KHP) (04.2016 - ) 1.4 TSI (150 HP, 110 kW)

SEAT ATECA (KH7, KHP) (04.2016 - ) 1.4 TSI 4Drive (150 HP, 110 kW)

SEAT IBIZA IV (6J5, 6P1) (03.2008 - 12.2017) 1.0 (75 HP, 55 kW)

SEAT IBIZA IV (6J5, 6P1) (03.2008 - 12.2017) 1.2 TSI (110 HP, 81 kW)

SEAT IBIZA IV (6J5, 6P1) (03.2008 - 12.2017) 1.2 TSI (90 HP, 66 kW)

SEAT IBIZA IV (6J5, 6P1) (03.2008 - 12.2017) 1.4 TSI (140 HP, 103 kW)

SEAT IBIZA IV (6J5, 6P1) (03.2008 - 12.2017) 1.4 TSI (150 HP, 110 kW)

SEAT IBIZA IV (6J5, 6P1) (03.2008 - 12.2017) 1.6 (110 HP, 81 kW)

SEAT IBIZA IV SC (6J1, 6P5) (06.2008 - 12.2017) 1.0 (75 HP, 55 kW)

SEAT IBIZA IV SC (6J1, 6P5) (06.2008 - 12.2017) 1.2 TSI (110 HP, 81 kW)

SEAT IBIZA IV SC (6J1, 6P5) (06.2008 - 12.2017) 1.2 TSI (90 HP, 66 kW)

SEAT IBIZA IV SC (6J1, 6P5) (06.2008 - 12.2017) 1.4 TSI (140 HP, 103 kW)

SEAT IBIZA IV SC (6J1, 6P5) (06.2008 - 12.2017) 1.4 TSI (150 HP, 110 kW)

SEAT IBIZA IV SC (6J1, 6P5) (06.2008 - 12.2017) 1.6 (110 HP, 81 kW)

SEAT IBIZA IV ST (6J8, 6P8) (03.2010 - 07.2016) 1.0 (75 HP, 55 kW)

SEAT IBIZA IV ST (6J8, 6P8) (03.2010 - 07.2016) 1.2 TSI (110 HP, 81 kW)

SEAT IBIZA IV ST (6J8, 6P8) (03.2010 - 07.2016) 1.2 TSI (90 HP, 66 kW)

SEAT IBIZA IV ST (6J8, 6P8) (03.2010 - 07.2016) 1.4 TSI (140 HP, 103 kW)

SEAT IBIZA IV ST (6J8, 6P8) (03.2010 - 07.2016) 1.4 TSI (150 HP, 110 kW)

SEAT IBIZA V (KJ1) (01.2017 - ) 1.0 (75 HP, 55 kW)

SEAT IBIZA V (KJ1) (01.2017 - ) 1.0 TSI (115 HP, 85 kW)

SEAT IBIZA V (KJ1) (01.2017 - ) 1.0 TSI (95 HP, 70 kW)

SEAT IBIZA V (KJ1) (01.2017 - ) 1.6 (110 HP, 81 kW)

SEAT LEON (5F1) (09.2012 - ) 1.2 TSI (105 HP, 77 kW)

SEAT LEON (5F1) (09.2012 - ) 1.2 TSI (110 HP, 81 kW)

SEAT LEON (5F1) (09.2012 - ) 1.2 TSI (86 HP, 63 kW)

SEAT LEON (5F1) (09.2012 - ) 1.4 TGI (110 HP, 81 kW)

SEAT LEON (5F1) (09.2012 - ) 1.4 TSI (122 HP, 90 kW)

SEAT LEON (5F1) (09.2012 - ) 1.4 TSI (125 HP, 92 kW)

SEAT LEON (5F1) (09.2012 - ) 1.4 TSI (140 HP, 103 kW)

SEAT LEON (5F1) (09.2012 - ) 1.4 TSI (150 HP, 110 kW)

SEAT LEON (5F1) (09.2012 - ) 1.6 SRE (110 HP, 81 kW)

SEAT LEON SEAT LEON Van/Hatchback (5F1) (09.2012 - 10.2016) 1.2 TSI (110 hp, 81 kW)

SEAT LEON Van/Hatchback (5F1) (09.2012 - 10.2016) 1.2 TSI (86 hp, 63 kW)

SEAT LEON Van/Hatchback (5F1) (09.2012 - 10.2016) 1.4 TSI (122 hp, 90 kW)

SEAT LEON Van/Hatchback (5F1) (09.2012 - 10.2016) 1.4 TSI (140 hp, 103 kW)

SEAT LEON Van/Hatchback (5F1) (09.2012 - 10.2016) 1.4 TSI (150 hp, 110kW)

SEAT LEON SC (5F5) (01.2013 - 12.2018) 1.2 TSI (105 HP, 77 kW)

SEAT LEON SC (5F5) (01.2013 - 12.2018) 1.2 TSI (110 HP, 81 kW)

SEAT LEON SC (5F5) (01.2013 - 12.2018) 1.2 TSI (86 HP, 63 kW)

SEAT LEON SC (5F5) (01.2013 - 12.2018) 1.4 TSI (122 HP, 90 kW)

SEAT LEON SC (5F5) (01.2013 - 12.2018) 1.4 TSI (125 HP, 92 kW)

SEAT LEON SC (5F5) (01.2013 - 12.2018) 1.4 TSI (140 HP, 103 kW)

SEAT LEON SC (5F5) (01.2013 - 12.2018) 1.4 TSI (150 HP, 110 kW)

SEAT LEON ST (5F8) (09.2012 - ) 1.2 TSI (105 HP, 77 kW)

SEAT LEON ST (5F8) (09.2012 - ) 1.2 TSI (110 HP, 81 kW)

SEAT LEON ST (5F8) (09.2012 - ) 1.2 TSI (86 HP, 63 kW)

SEAT LEON ST (5F8) (09.2012 - ) 1.4 TGI (110 HP, 81 kW)

SEAT LEON ST (5F8) (09.2012 - ) 1.4 TSI (122 HP, 90 kW)

SEAT LEON ST (5F8) (09.2012 - ) 1.4 TSI (125 HP, 92 kW)

SEAT LEON ST (5F8) (09.2012 - ) 1.4 TSI (140 HP, 103 kW)

SEAT LEON ST (5F8) (09.2012 - ) 1.4 TSI (150 HP, 110 kW)

SEAT LEON ST (5F8) (09.2012 - ) 1.6 SRE (110 HP, 81 kW)

SEAT LEON ST Box Body/Estate (5F8) (01.2013 - ) 1.2 TSI (110 HP, 81 kW)

SEAT LEON ST box/estate (5F8) (01.2013 - ) 1.2 TSI (86 HP, 63 kW)

SEAT LEON ST Box Body/Estate (5F8) (01.2013 - ) 1.4 TSI (150 HP, 110 kW)

SEAT Mii (KF1, KE1) (10.2011 - 07.2019) 1.0 (60 HP, 44 kW)

SEAT Mii (KF1, KE1) (10.2011 - 07.2019) 1.0 (75 HP, 55 kW)

SEAT Mii (KF1, KE1) (10.2011 - 07.2019) 1.0 EcoFuel (68 HP, 50 kW)

SEAT TARRACO (KN2) (09.2018 - ) 1.4 TSI (150 HP, 110 kW)

SEAT TOLEDO IV (KG3) (07.2012 - 04.2019) 1.2 TSI (110 HP, 81 kW)

SEAT TOLEDO IV (KG3) (07.2012 - 04.2019) 1.2 TSI (90 HP, 66 kW)

SEAT TOLEDO IV (KG3) (07.2012 - 04.2019) 1.4 TSI (125 HP, 92 kW)

SEAT TOLEDO IV (KG3) (07.2012 - 04.2019) 1.6 (110 HP, 81 kW)

SKODA CITIGO (NF1) (10.2011 - 08.2019) 1.0 (60 HP, 44 kW)

SKODA CITIGO (NF1) (10.2011 - 08.2019) 1.0 (75 HP, 55 kW)

SKODA CITIGO (NF1) (10.2011 - 08.2019) 1.0 CNG (68 HP, 50 kW)

SKODA CITIGO (NF1) (10.2011 - 08.2019) 1.0 LPG (75 HP, 55 kW)

SKODA FABIA III (NJ3) (08.2014 - ) 1.0 (60 HP, 44 kW)

SKODA FABIA III (NJ3) (08.2014 - ) 1.0 (75 HP, 55 kW)

SKODA FABIA III (NJ3) (08.2014 - ) 1.0 LPG (60 HP, 44 kW)

SKODA FABIA III (NJ3) (08.2014 - ) 1.0 LPG (75 HP, 55 kW)

SKODA FABIA III (NJ3) (08.2014 - ) 1.2 TSI (110 HP, 81 kW)

SKODA FABIA III (NJ3) (08.2014 - ) 1.2 TSI (90 HP, 66 kW)

SKODA FABIA III (NJ3) (08.2014 - ) 1.4 TSI R5 (125 HP, 92 kW)

SKODA FABIA III (NJ3) (08.2014 - ) 1.6 (110 HP, 81 kW)

SKODA FABIA III (NJ3) (08.2014 - ) 1.6 (90 HP, 66 kW)

SKODA FABIA III Estate (NJ5) (08.2014 - ) 1.0 (60 HP, 44 kW)

SKODA FABIA III Estate (NJ5) (08.2014 - ) 1.0 (75 HP, 55 kW)

SKODA FABIA III Estate (NJ5) (08.2014 - ) 1.0 LPG (75 HP, 55 kW)

SKODA FABIA III Estate (NJ5) (08.2014 - ) 1.2 TSI (110 HP, 81 kW)

SKODA FABIA III Estate (NJ5) (08.2014 - ) 1.2 TSI (90 HP, 66 kW)

SKODA FABIA III Estate (NJ5) (08.2014 - ) 1.6 (110 HP, 81 kW)

SKODA FABIA III Estate (NJ5) (08.2014 - ) 1.6 (90 HP, 66 kW)

SKODA KAMIQ (NW4) (07.2019 - ) 1.0 TSI (115 HP, 85 kW)

SKODA KAMIQ (NW4) (07.2019 - ) 1.0 TSI (95 HP, 70 kW)

SKODA KAMIQ (NW4) (07.2019 - ) 1.6 SRE (110 HP, 81 kW)

SKODA KAROQ (NU7) (07.2017 - ) 1.4 TSI (150 HP, 110 kW)

SKODA KAROQ (NU7) (07.2017 - ) 1.6 SRE (110 HP, 81 kW)

SKODA KODIAQ (NS7, NV7) (10.2016 - ) 1.4 TSI (125 HP, 92 kW)

SKODA KODIAQ (NS7, NV7) (10.2016 - ) 1.4 TSI (150 HP, 110 kW)

SKODA KODIAQ (NS7, NV7) (10.2016 - ) 1.4 TSI 4x4 (150 HP, 110 kW)

SKODA OCTAVIA IV (5E3, NL3, NR3) (11.2012 - 02.2017) 1.2 TSI (105 HP, 77 kW)

SKODA OCTAVIA IV (5E3, NL3, NR3) (11.2012 - 02.2017) 1.2 TSI (110 HP, 81 kW)

SKODA OCTAVIA IV (5E3, NL3, NR3) (11.2012 - 02.2017) 1.2 TSI (86 HP, 63 kW)

SKODA OCTAVIA IV (5E3, NL3, NR3) (11.2012 - 02.2017) 1.4 TSI (140 HP, 103 kW)

SKODA OCTAVIA IV (5E3, NL3, NR3) (11.2012 - 02.2017) 1.4 TSI (150 HP, 110 kW)

SKODA OCTAVIA IV (5E3, NL3, NR3) (11.2012 - 02.2017) 1.4 TSI G-TEC (110 HP, 81 kW)

SKODA OCTAVIA IV (5E3, NL3, NR3) (11.2012 - 02.2017) 1.6 (110 HP, 81 kW)

SKODA OCTAVIA IV Combi (5E5, 5E6) (11.2012 - 02.2017) 1.2 TSI (105 HP, 77 kW)

SKODA OCTAVIA IV Combi (5E5, 5E6) (11.2012 - 02.2017) 1.2 TSI (110 HP, 81 kW)

SKODA OCTAVIA IV Combi (5E5, 5E6) (11.2012 - 02.2017) 1.2 TSI (86 HP, 63 kW)

SKODA OCTAVIA IV Combi (5E5, 5E6) (11.2012 - 02.2017) 1.4 TSI (140 HP, 103 kW)

SKODA OCTAVIA IV Combi (5E5, 5E6) (11.2012 - 02.2017) 1.4 TSI (150 HP, 110 kW)

SKODA OCTAVIA IV Combi (5E5, 5E6) (11.2012 - 02.2017) 1.4 TSI G-TEC (110 HP, 81 kW)

SKODA OCTAVIA IV Combi (5E5, 5E6) (11.2012 - 02.2017) 1.6 (110 HP, 81 kW)

SKODA OCTAVIA V (NX3) (01.2020 - ) 1.6 SRE (110 HP, 81 kW)

SKODA OCTAVIA V Combi (NX5) (11.2019 - ) 1.6 SRE (110 HP, 81 kW)

SKODA RAPID (NH3) (07.2012 - 12.2019) 1.2 TSI (110 HP, 81 kW)

SKODA RAPID (NH3) (07.2012 - 12.2019) 1.2 TSI (90 HP, 66 kW)

SKODA RAPID (NH3) (07.2012 - 12.2019) 1.4 TSI (125 HP, 92 kW)

SKODA RAPID (NH3) (07.2012 - 12.2019) 1.6 (110 HP, 81 kW)

SKODA RAPID (NH3) (07.2012 - 12.2019) 1.6 SRE (90 HP, 66 kW)

SKODA RAPID Spaceback (NH1) (07.2012 - 12.2019) 1.2 TSI (110 HP, 81 kW)

SKODA RAPID Spaceback (NH1) (07.2012 - 12.2019) 1.2 TSI (90 HP, 66 kW)

SKODA RAPID Spaceback (NH1) (07.2012 - 12.2019) 1.4 TSI (125 HP, 92 kW)

SKODA RAPID Spaceback (NH1) (07.2012 - 12.2019) 1.6 SRE (110 HP, 81 kW)

SKODA SCALA (NW1) (02.2019 - ) 1.0 TSI (116 HP, 85 kW)

SKODA SUPERB III (3V3) (03.2015 - ) 1.4 TSI (125 HP, 92 kW)

SKODA SUPERB III (3V3) (03.2015 - ) 1.4 TSI (150 HP, 110 kW)

SKODA SUPERB III (3V3) (03.2015 - ) 1.4 TSI 4x4 (150 HP, 110 kW)

SKODA SUPERB III Estate (3V5) (03.2015 - ) 1.4 TSI (125 HP, 92 kW)

SKODA SUPERB III Estate (3V5) (03.2015 - ) 1.4 TSI (150 HP, 110 kW)

SKODA SUPERB III Estate (3V5) (03.2015 - ) 1.4 TSI 4x4 (150 HP, 110 kW)

SKODA YETI (5L) (05.2009 - 12.2017) 1.2 TSI (110 HP, 81 kW)

SKODA YETI (5L) (05.2009 - 12.2017) 1.4 TSI (125 HP, 92 kW)

SKODA YETI (5L) (05.2009 - 12.2017) 1.4 TSI 4x4 (150 HP, 110 kW)

SKODA YETI (5L) (05.2009 - 12.2017) 1.6 (110 HP, 81 kW)

VW BEETLE (5C1, 5C2) (04.2011 - 07.2019) 1.2 TSI 16V (105 HP, 77 kW)

VW BEETLE (5C1, 5C2) (04.2011 - 07.2019) 1.4 TSI (150 HP, 110 kW)

VW BEETLE Cabriolet (5C7, 5C8) (12.2011 - 07.2019) 1.2 TSI 16V (105 hp, 77 kW)

VW Beetle Convertible (5C7, 5C8) (12.2011 - 07.2019) 1.4 TSI (150 hp, 110 kW)

VW Caddy Alltrack MPV (SAB) (05.2015 - 11.2017) 1.2 TSI (84 hp, 62 kW)

VW Caddy Alltrack MPV (SAB) (05.2015 - 11.2017) 1.4 TGI CNG (110 hp, 81 kW)

VW Caddy Alltrack Panel Van/MPV (SAA) (05.2015 - 11.2017) 1.2 TSI (84 hp, 62 kW)

VW CADDY ALLTRACK Panel Van/MPV (SAA) (05.2015 - 11.2017) 1.4 TGI CNG (110 hp, 81 kW)

VW CADDY IV MPV (SAB, SAJ) (05.2015 - 11.2017) 1.2 TSI (84 hp, 62 kW)

VW CADDY IV MPV (SAB, SAJ) (05.2015 - 11.2017) 1.4 TGI CNG (110 hp, 81 kW)

VW CADDY IV MPV (SAB, SAJ) (05.2015 - 11.2017) 1.6 (110 hp, 81 kW)

VW CADDY IV Panel Van/MPV (SAA, SAH) (05.2015 - 11.2017) 1.2 TSI (84 hp, 62 kW)

VW CADDY IV Panel Van/MPV (SAA, SAH) (05.2015 - 11.2017) 1.4 TGI CNG (110 hp, 81 kW)

VW CADDY IV Panel Van/MPV (SAA, SAH) (05.2015 - 11.2017) 1.6 (110 hp, 81 kW)

VW CC (358) (11.2011 - 12.2016) 1.4 TSI (150 hp, 110 kW)

VW GOLF SPORTSVAN VII (AM1, AN1) (02.2014 - 11.2017) 1.2 TSI (110 hp, 81 kW) kW)

VW GOLF SPORTSVAN VII (AM1, AN1) (02.2014 - 11.2017) 1.4 TSI (125 HP, 92 kW)

VW GOLF SPORTSVAN VII (AM1, AN1) (02.2014 - 11.2017) 1.4 TSI (150 HP, 110 kW)

VW GOLF SPORTSVAN VII (AM1, AN1) (02.2014 - 11.2017) 1.4 TSI MultiFuel (125 HP, 92 kW)

VW GOLF SPORTSVAN VII (AM1, AN1) (02.2014 - 11.2017) 1.6 (110 HP, 81 kW)

VW GOLF VAN VII Variant (BA5) (04.2013 - 03.2017) 1.2 TSi BlueMotion (105 HP, 77 kW)

VW GOLF VAN VII Variant (BA5) (04.2013 - 03.2017) 1.2 TSi BlueMotion (86 HP, 63 kW)

VW GOLF VAN VII Variant (BA5) (04.2013 - 03.2017) 1.4 TSi BlueMotion (122 HP, 90 kW)

VW GOLF VAN VII Variant (BA5) (04.2013 - 03.2017) 1.4 TSi BlueMotion (140 HP, 103 kW)

VW GOLF VI Cabriolet (517) (03.2011 - 05.2016) 1.2 TSI 16V (105 HP, 77 kW)

VW GOLF VI Cabriolet (517) (03.2011 - 05.2016) 1.4 TSI (125 HP, 92 kW)

VW GOLF VI Cabriolet (517) (03.2011 - 05.2016) 1.4 TSI (150 HP, 110 kW)

VW GOLF VII (5G1, BQ1, BE1, BE2) (08.2012 - 05.2019) 1.2 TSI (105 HP, 77 kW)

VW GOLF VII (5G1, BQ1, BE1, BE2) (08.2012 - 05.2019) 1.2 TSI (110 HP, 81 kW)

VW GOLF VII (5G1, BQ1, BE1, BE2) (08.2012 - 05.2019) 1.2 TSI (86 HP, 63 kW)

VW GOLF VII (5G1, BQ1, BE1, BE2) (08.2012 - 05.2019) 1.4 GTE Hybrid (150 HP, 110 kW)

VW GOLF VII (5G1, BQ1, BE1, BE2) (08.2012 - 05.2019) 1.4 TGI CNG (110 HP, 81 kW)

VW GOLF VII (5G1, BQ1, BE1, BE2) (08.2012 - 05.2019) 1.4 TSI (122 HP, 90 kW)

VW GOLF VII (5G1, BQ1, BE1, BE2) (08.2012 - 05.2019) 1.4 TSI (125 HP, 92 kW)

VW GOLF VII (5G1, BQ1, BE1, BE2) (08.2012 - 05.2019) 1.4 TSI (140 HP, 103 kW)

VW GOLF VII (5G1, BQ1, BE1, BE2) (08.2012 - 05.2019) 1.4 TSI (150 HP, 110 kW)

VW GOLF VII (5G1, BQ1, BE1, BE2) (08.2012 - 05.2019) 1.4 TSI MultiFuel (122 HP, 90 kW)

VW GOLF VII (5G1, BQ1, BE1, BE2) (08.2012 - 05.2019) 1.4 TSI MultiFuel (125 HP, 92 kW)

VW GOLF VII (5G1, BQ1, BE1, BE2) (08.2012 - 05.2019) 1.6 (110 HP, 81 kW)

VW GOLF VII Van (5G1) (08.2012 - ) 1.2 TSi BlueMotion (105 HP, 77 kW)

VW GOLF VII Van (5G1) (08.2012 - ) 1.2 TSi BlueMotion (86 HP, 63 kW)

VW GOLF VII Van (5G1) (08.2012 - ) 1.4 TSi BlueMotion (122 HP, 90 kW)

VW GOLF VII Van (5G1) (08.2012 - ) 1.4 TSi BlueMotion (140 HP, 103 kW)

VW GOLF VII Variant (BA5, BV5) (04.2013 - 05.2018) 1.2 TSI (105 HP, 77 kW)

VW GOLF VII Variant (BA5, BV5) (04.2013 - 05.2018) 1.2 TSI (110 HP, 81 kW)

VW GOLF VII Variant (BA5, BV5) (04.2013 - 05.2018) 1.2 TSI (86 HP, 63 kW)

VW GOLF VII Variant (BA5, BV5) (04.2013 - 05.2018) 1.4 TGI CNG (110 HP, 81 kW)

VW GOLF VII Variant (BA5, BV5) (04.2013 - 05.2018) 1.4 TSI (122 HP, 90 kW)

VW GOLF VII Variant (BA5, BV5) (04.2013 - 05.2018) 1.4 TSI (125 HP, 92 kW)

VW GOLF VII Variant (BA5, BV5) (04.2013 - 05.2018) 1.4 TSI (140 HP, 103 kW)

VW GOLF VII Variant (BA5, BV5) (04.2013 - 05.2018) 1.4 TSI (150 HP, 110 kW)

VW GOLF VII Variant (BA5, BV5) (04.2013 - 05.2018) 1.4 TSI MultiFuel (122 HP, 90 kW)

VW GOLF VII Variant (BA5, BV5) (04.2013 - 05.2018) 1.4 TSI MultiFuel (125 HP, 92 kW)

VW GOLF VII Variant (BA5, BV5) (04.2013 - 05.2018) 1.6 (110 HP, 81 kW)

VW JETTA IV (162, 163, AV3, AV2) (01.2008 - 04.2018) 1.2 TSI 16V (105 HP, 77 kW)

VW JETTA IV (162, 163, AV3, AV2) (01.2008 - 04.2018) 1.4 TSI (125 HP, 92 kW)

VW JETTA IV (162, 163, AV3, AV2) (01.2008 - 04.2018) 1.4 TSI (150 HP, 110 kW)

VW JETTA IV (162, 163, AV3, AV2) (01.2008 - 04.2018) 1.4 TSI Hybrid (150 HP, 110 kW)

VW JETTA IV (162, 163, AV3, AV2) (01.2008 - 04.2018) 1.6 (110 hp, 81 kW)

VW JETTA IV (162, 163, AV3, AV2) (01.2008 - 04.2018) 1.6 MPi (90 hp, 66 kW)

VW JETTA Saloon (BU3) (12.2017 - ) 1.4 TSI (150 hp, 110 kW)

VW LOAD UP (121, 122, BL1, BL2) (12.2014 - 08.2020) 1.0 (60 hp, 44 kW)

VW LOAD UP (121, 122, BL1, BL2) (12.2014 - 08.2020) 1.0 BlueMotion (75 hp, 55 kW)

VW LOAD UP (121, 122, BL1, BL2) (12.2014 - 08.2020) 1.0 EcoFuel (68 HP, 50 kW)

VW PASSAT ALLTRACK B8 Variant (3G5, CB5) (05.2015 - 11.2017) 1.4 TSI 4motion (150 HP, 110 kW)

VW PASSAT B8 (3G2, CB2) (08.2014 - 11.2017) 1.4 GTE Hybrid (156 HP, 115 kW)

VW PASSAT B8 (3G2, CB2) (08.2014 - 11.2017) 1.4 TSI (125 HP, 92 kW)

VW PASSAT B8 (3G2, CB2) (08.2014 - 11.2017) 1.4 TSI (150 HP, 110 kW)

VW PASSAT B8 (3G2, CB2) (08.2014 - 11.2017) 1.4 TSI 4motion (150 HP, 110 kW)

VW PASSAT B8 Variant (3G5, CB5) (08.2014 - 11.2017) 1.4 GTE Hybrid (156 HP, 115 kW)

VW PASSAT B8 Variant (3G5, CB5) (08.2014 - 11.2017) 1.4 TSI (125 HP, 92 kW)

VW PASSAT B8 Variant (3G5, CB5) (08.2014 - 11.2017) 1.4 TSI (150 HP, 110 kW)

VW PASSAT B8 Variant (3G5, CB5) (08.2014 - 11.2017) 1.4 TSI 4motion (150 HP, 110 kW)

VW POLO Saloon (602, 604, 612, 614) (04.2010 - ) 1.4 TSi (125 HP, 92 kW)

VW POLO Saloon (602, 604, 612, 614) (04.2010 - ) 1.6 (110 HP, 81 kW)

VW POLO Saloon (602, 604, 612, 614) (04.2010 - ) 1.6 (90 HP, 66 kW)

VW POLO V (6R1, 6C1) (03.2009 - 03.2020) 1.0 (60 HP, 44 kW)

VW POLO V (6R1, 6C1) (03.2009 - 03.2020) 1.0 (75 HP, 55 kW)

VW POLO V (6R1, 6C1) (03.2009 - 03.2020) 1.2 TSI (110 HP, 81 kW)

VW POLO V (6R1, 6C1) (03.2009 - 03.2020) 1.2 TSI 16V (90 HP, 66 kW)

VW POLO V (6R1, 6C1) (03.2009 - 03.2020) 1.4 TSI (140 HP, 103 kW)

VW POLO V (6R1, 6C1) (03.2009 - 03.2020) 1.4 TSI (150 HP, 110 kW)

VW POLO V (6R1, 6C1) (03.2009 - 03.2020) 1.6 (110 HP, 81 kW)

VW POLO V (6R1, 6C1) (03.2009 - 03.2020) 1.6 (90 HP, 66 kW)

VW POLO VI (AW1, BZ1) (06.2017 - ) 1.0 (75 HP, 55 kW)

VW POLO VI (AW1, BZ1) (06.2017 - ) 1.0 TSI (115 HP, 85 kW)

VW POLO VI (AW1, BZ1) (06.2017 - ) 1.0 TSI (95 HP, 70 kW)

VW POLO VI (AW1, BZ1) (06.2017 - ) 1.6 MPi (90 HP, 66 kW)

VW POLO Van (6R) (03.2009 - 05.2014) 1.0 (60 HP, 44 kW)

VW POLO Van (6R) (03.2009 - 05.2014) 1.0 (75 HP, 55 kW)

VW POLO Van (6R) (03.2009 - 05.2014) 1.2 TSI (110 HP, 81 kW)

VW POLO Van (6R) (03.2009 - 05.2014) 1.2 TSi (90 HP, 66 kW)

VW POLO Van (6R) (03.2009 - 05.2014) 1.4 TSI (150 HP, 110 kW)

VW SCIROCCO III (137, 138) (05.2008 - 11.2017) 1.4 TSI (125 HP, 92 kW)

VW SCIROCCO III (137, 138) (05.2008 - 11.2017) 1.4 TSI (150 HP, 110 kW)

VW SHARAN (7N1, 7N2) (05.2010 - 07.2019) 1.4 TSI (150 HP, 110 kW)

VW T-CROSS (C11) (12.2018 - ) 1.0 TSi (116 HP, 85 kW)

VW T-CROSS (C11) (12.2018 - ) 1.0 TSi (95 HP, 70 kW)

VW T-ROC (A11) (07.2017 - ) 1.0 TSI 4motion (115 HP, 85 kW)

VW T-ROC Cabriolet (AC7) (12.2019 - ) 1.0 TSI (116 HP, 85 kW)

VW TIGUAN (5N_) (09.2007 - 07.2018) 1.4 TSI (125 HP, 92 kW)

VW TIGUAN (5N_) (09.2007 - 07.2018) 1.4 TSI (150 HP, 110 kW)

VW TIGUAN (AD1, AX1) (01.2016 - 07.2020) 1.4 TSI (125 HP, 92 kW)

VW TIGUAN (AD1, AX1) (01.2016 - 07.2020) 1.4 TSI (150 HP, 110 kW)

VW TIGUAN (AD1, AX1) (01.2016 - 07.2020) 1.4 TSI 4motion (150 HP, 110 kW)

VW TIGUAN ALLSPACE (BW2) (03.2017 - ) 1.4 TSI (150 HP, 110 kW)

VW TOURAN (5T1) (05.2015 - 07.2019) 1.2 TSI (110 HP, 81 kW)

VW TOURAN (5T1) (05.2015 - 07.2019) 1.4 TSI (150 HP, 110 kW)

VW UP! (121, 122, BL1, BL2, BL3, 123) (08.2011 - 08.2020) 1.0 (60 HP, 44 kW)

VW UP! (121, 122, BL1, BL2, BL3, 123) (08.2011 - 08.2020) 1.0 (75 HP, 55 kW)

VW UP! (121, 122, BL1, BL2, BL3, 123) (08.2011 - 08.2020) 1.0 EcoFuel (68 HP, 50 kW)
